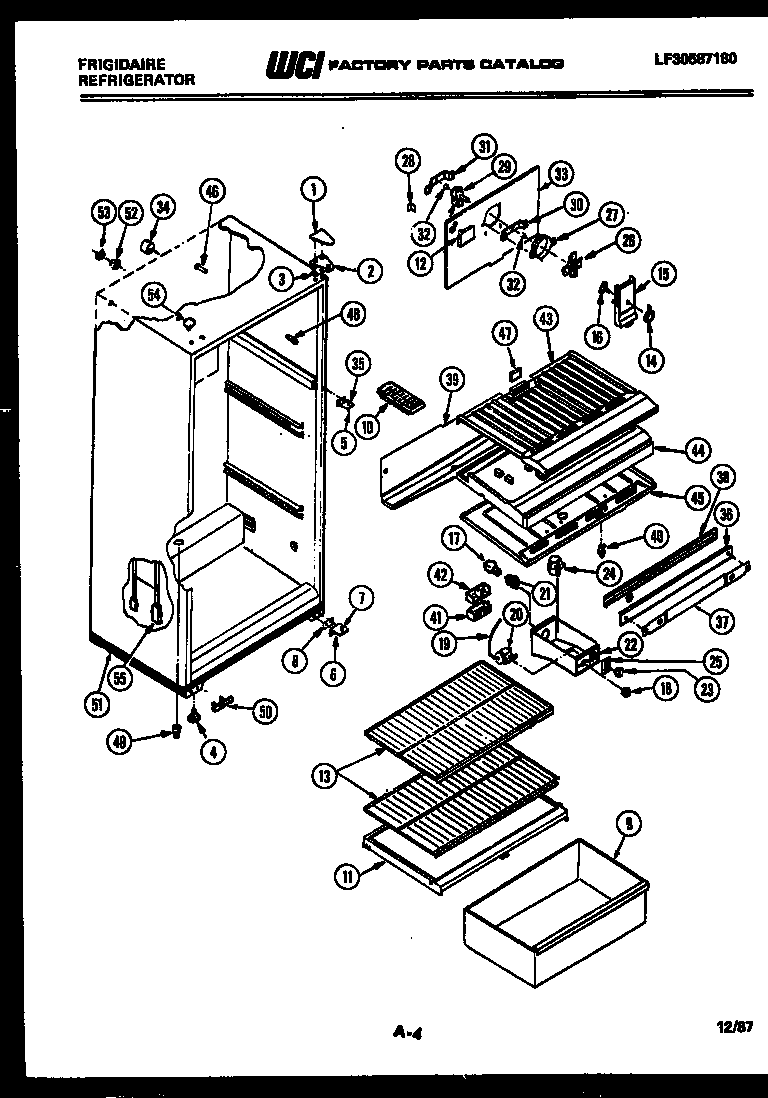

FPDA14TML3 03 – CABINET PARTS

Products

Position	Product
1	COVER, HNG, ALMD
2	WCI 8012843
2B	SCREW-HINGE MOUNTING (2)
3	WCI 8012829
3A	PLATE-TAPPING (2)
4A	WCI 8003584
4	SCREWS LEVELING (4)
5A	WASHER-5/16 NYLON
5	WCI 8000184
6A	SCREW-HINGE MOUNTING
6	BRACKET-HNG
7	PIN-LOWER HINGE
7A	WASHER-1/4 NYLON (3)
8A	TAPPING PLATE (4)
8	SHIM-LOWER HINGE
9	WCI 8000977
10	ICE CUBE TRAY (2)
11	WCI 8000749
12	WCI 8000082
13	WCI 8000857
14A	WCI 8009823
14	WCI 8009793
15	WCI 8009819
16A	WCI 8000067
16	WCI 8000066
17	LIGHT BULB
18	WCI 8006978
19	WCI 8003637
20A	SCREW-CONTROL MOUNTING (2) (NON-ILLUSTRATED)
20	CONTROL TEMP
21	WCI 8000129
22A	SCREW (5)
22	WCI 8009730
23	WCI 8016615
24	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24A	WCI 8000008
25	LABEL-CONTROL BOX
26	WCI 8000010
27	WCI 8000124
28A	SCREW-PANEL MOUNTING (56)
28	WCI 8000107
29	WCI 8004176
30	WCI 8000043
31	WCI 8000042
32	WCI 8000032
33	WCI 8003636
33A	WCI 8000126
34	WCI 8000004
35A	SCREW-HINGE/MULLION (4)
35B	WCI 8003607
35	WCI 8000757
36A	WCI 8003608
37	WCI 8003604
38	WCI 8000744
39	WCI 8003638
40	SWITCH, LIGHT
41	WCI 8000055
42	WCI 8000071
43	WCI 8000748
44	WCI 8000759
45A	SCREW-TOP MOUNTING (3)
45	WCI 8006986
46	WCI 8000097
47	WCI 8000185
48	WCI 8003618
49	WCI 8003605
50	WCI 8003585
51	WCI 8010090
52	WCI 8006970
53	WCI 8006971
54	WCI 8007129
55B	WCI 8016571
55A	PLUG-REFRIGERATOR LINER (2)
55	WCI 8006993
