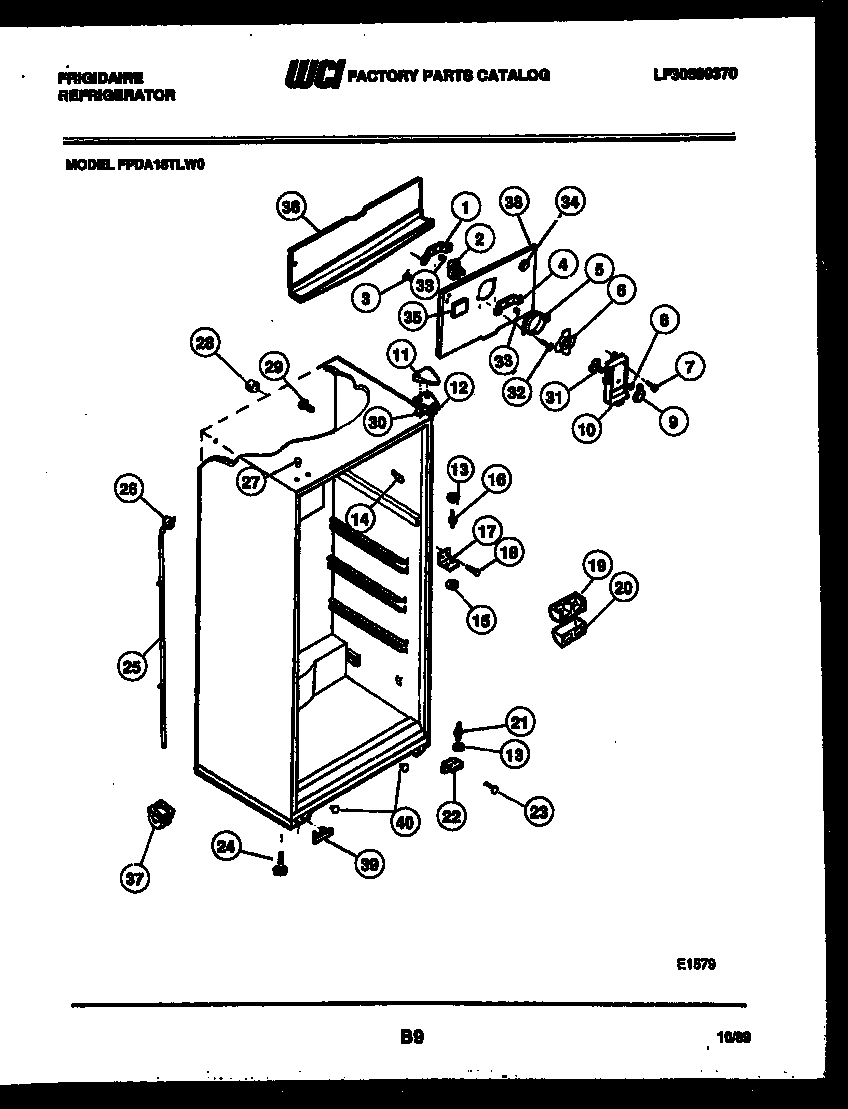

FPDA18TLL0 03 – CABINET PARTS

Products

Position	Product
1	WCI 08000042
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI 08000107
4	WCI 08000043
5A	218843801 Frigidaire Refrigerator Screw
5	WCI 08000124
6	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	5304455650 Frigidaire Refrigerator Screw
8	WCI 08000067
9	WCI 3206389
10	WCI 3206387
11	WCI 3206105
12A	241710601 Frigidaire Refrigerator Screw
12	WCI 3206100
13	WCI 08000007
14	WCI 3202340
15	WCI 3001038
16	WCI 08000184
17	WCI 08000757
18	WCI 08012258
18A	WASHER-MULLION (4)
19	WCI 3204206
20	WCI 3001546
21	5303001321 Frigidaire Refrigerator Lower Hinge Pin
22	WCI 3206136
24	SCREW-LEVELING, (2)
25	TUBE-DEFROST DRAIN
25A	WCI 08000056
26	RING-SEAL
27	WCI 08007129
28	TUBE
29	WCI 08000097
30	WCI 08012829
31	WCI 3206110
32	5304455651 Frigidaire Refrigerator Screw
33	G187559 Frigidaire Refrigerator Bushing
34A	WCI 08000126
34	WCI 3206451
35	WCI 08013636
36	TROUGH-DRAIN
37	WCI 3206237
38	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
39	WCI 3206135
40	PLUG-BUTTON
