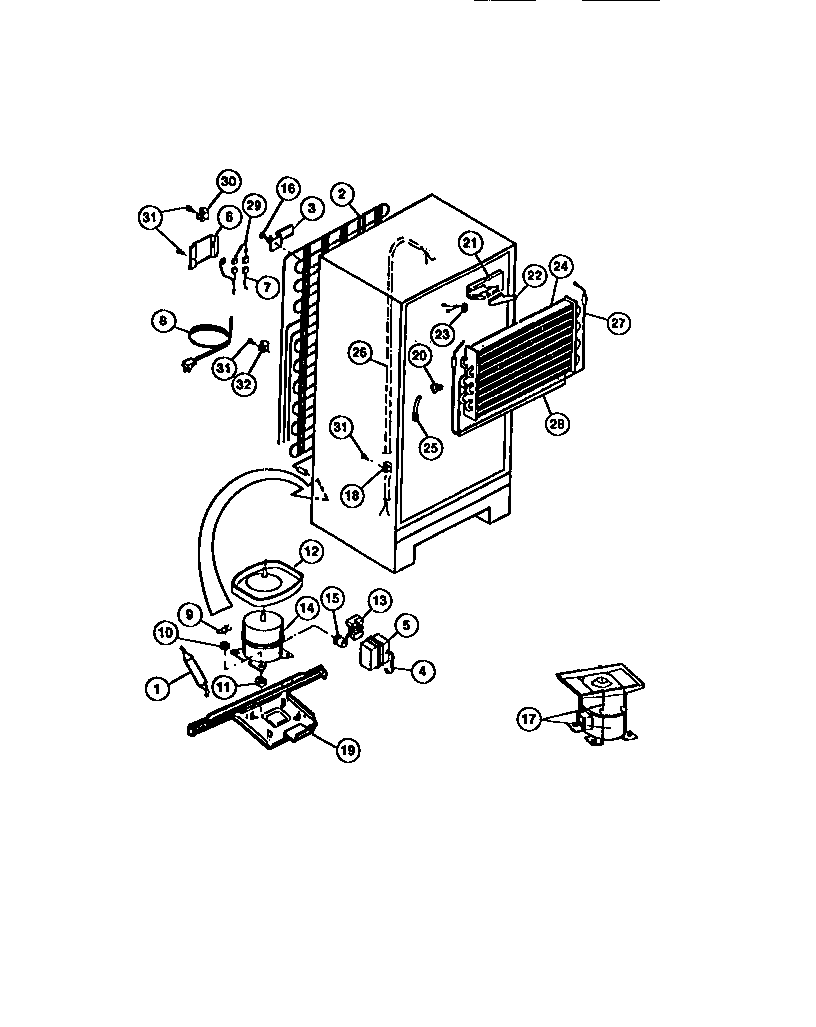

FPDA18TPL0 05 – COMPRESSOR, CONDENSER, EVAPORATOR

Written by

Products

Position	Product
*03205	WCI 391557
*03204	STRAP – CAPACITOR MOUNTING
*03203	CAPACITOR
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI 5300163133
3	BRACKET-MTG (4)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
6	WCI 5303001197
7	WIRING HARNESS-COMPRESSOR
8	CORD-ELECTRIC POWER
9	CLIP – COMPRESSOR MTG
10	WASHER-COMPR MTG
11	218513300 Frigidaire Refrigerator Compressor Mount Grommet
12	Nut,lock `1/4-20 ,drain pan mtg
12	PAN-DEFROST DRAIN, ORIG/SVCE COMPR
12	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
13	RELAY-TL
14	COMPRESSOR W/ ELEC
15	WCI 5303272031
16	5308000039 Frigidaire Refrigerator Screw
16	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
17	PAN RETAINER KIT, SERVICE
19	5304500008 Frigidaire Oven Screw
19	WCI 3206126
20	INSULATION BLOCK, LH
21	INSULATION BLOCK, RH
22	INSULATION PLUG, RH
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	EVAPORATOR
25	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26	WCI 5308000728
27	3206453 Frigidaire Refrigerator Defrost Heater 22 1/4" Wide X 4" Deep
28	WCI 5303207493
29	WCI 3018900
30	5308000133 Frigidaire Refrigerator Clamp
31	5304455651 Frigidaire Refrigerator Screw
32	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
