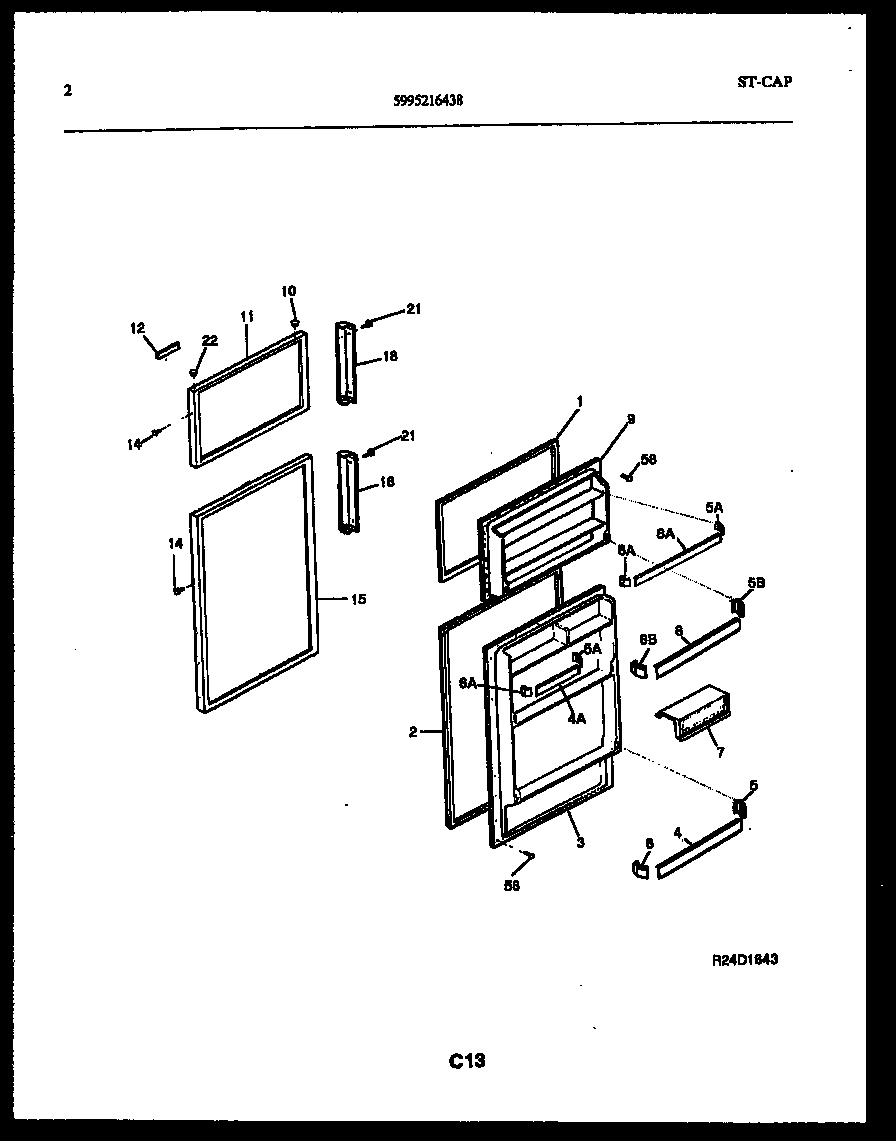

FPDA18TPL1 02 – DOOR PARTS

FPDA18TPL1 02 – DOOR PARTS

Written by

in

FPDA18TPL1 02 – DOOR PARTS

Products

PositionProduct
*57711INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR DOOR, MAGNETIC, BROWN
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 5303206770
4AWCI 5303206771
5BSUPPORT, RH (2)
55303325990 Frigidaire Refrigerator Door Bar End Cap
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
6BSUPPORT, LH (2) (NON-ILLUSTRATED)
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
65303325991 Frigidaire Refrigerator Door Bar Endcap
7WCI 5303273066
8215516220 Frigidaire Refrigerator Door Rack
8ARACK-TOP
9WCI 3206463
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND
12NAMEPLATE
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND
18HANDLE-DOOR, ALMOND, FRZR
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
