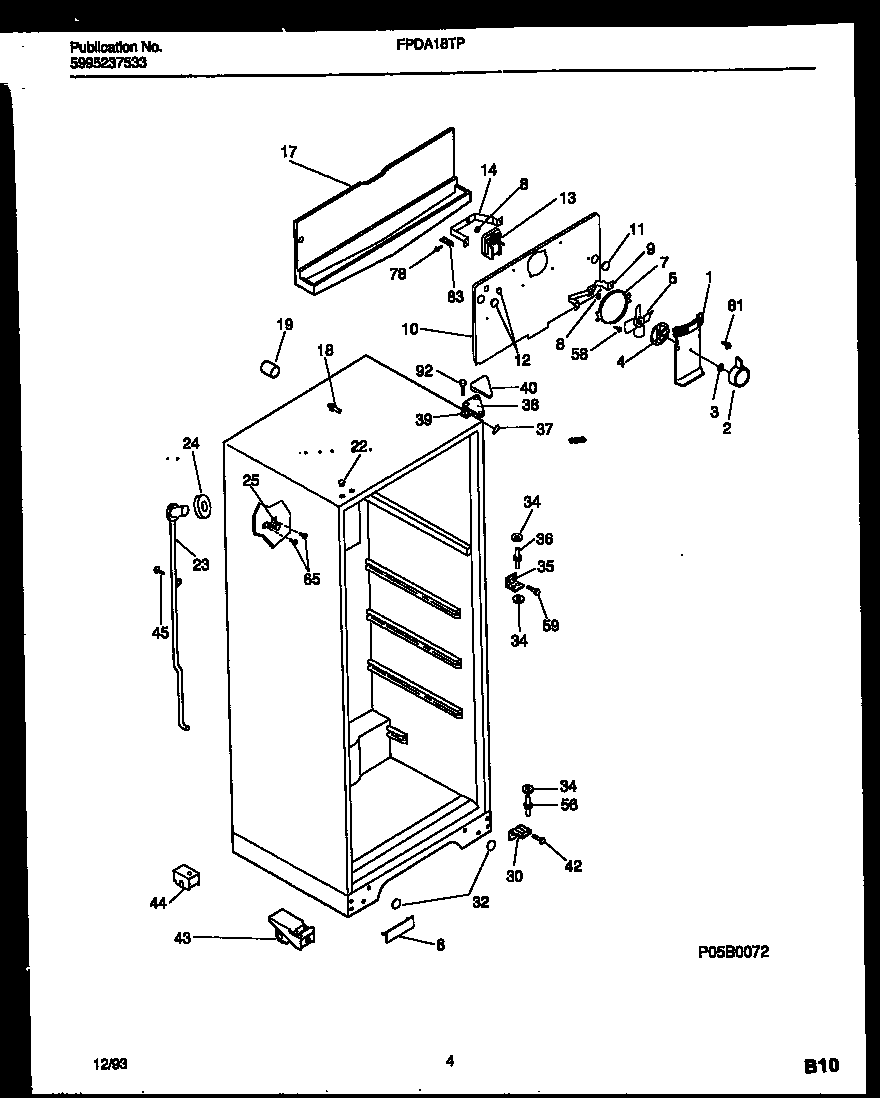

FPDA18TPL2 03 – CABINET PARTS

Products

Position	Product
*89739	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 3206387
2	WCI 3206388
3	Nut,push-on
4	WCI 3206110
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 3206135
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10	WCI 3206451
11	5303208309 Frigidaire Refrigerator Plug Hole
12A	WCI 215079100
12	WCI 215079000
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	TROUGH-DRAIN
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
22	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23	WCI 5303269702
24	WCI 5303207353
25	WCI 5308000056
28A	WCI 5308011326
28	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
30	WCI 5303206136
32	PLUG-BUTTON
34	WCI 5308000186
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, ALMOND
38	WCI 3206100
38A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39	SHIM – UPPER HINGE
40	WCI 3206105
42	241710601 Frigidaire Refrigerator Screw
43B	WCI 5308009760
43A	WCI 5308009790
43C	5304500008 Frigidaire Oven Screw
43	WCI 5300188673
44	ROLLER ASSY, METAL HOUSING, REAR, (2)
45	5304455651 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	SCREW – MULLION (2)
65	WCI 5303001361
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
