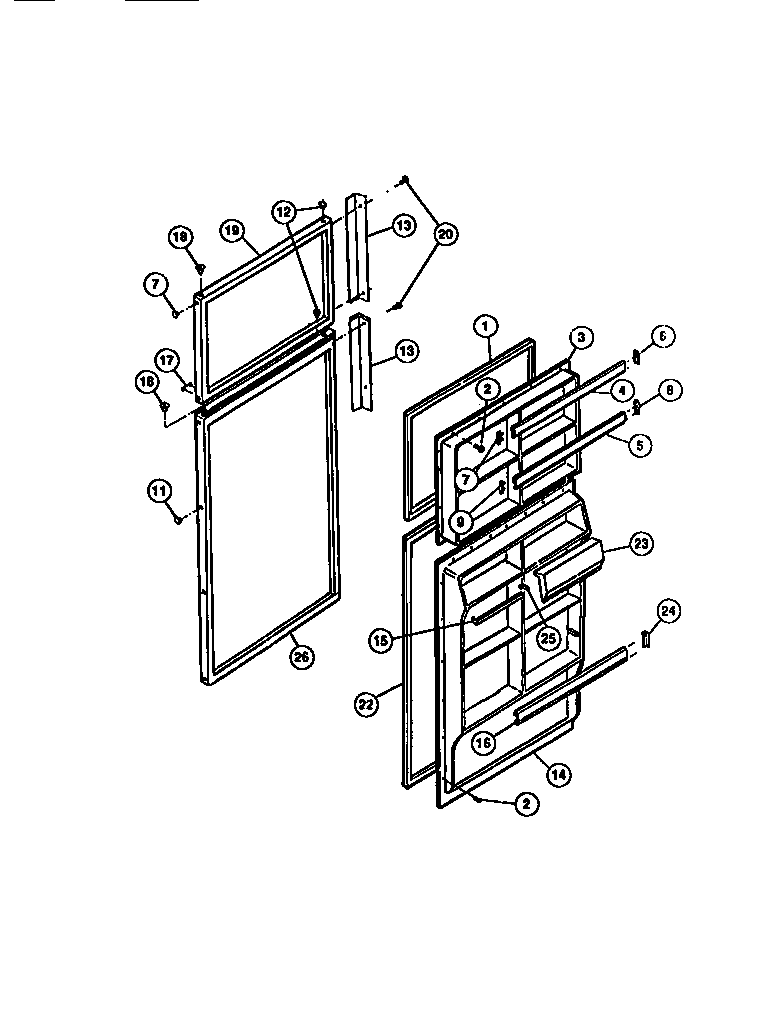

FPDA18TPLL0 02 – FOOD AND FREEZER DOORS

FPDA18TPLL0 02 – FOOD AND FREEZER DOORS

Written by

in

FPDA18TPLL0 02 – FOOD AND FREEZER DOORS

Products

PositionProduct
*03200INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR DOOR, MAGNETIC, BROWN
25304455651 Frigidaire Refrigerator Screw
3WCI 3206463
4RACK-TOP
5215516220 Frigidaire Refrigerator Door Rack
8SUPPORT, RH (2)
9SUPPORT, LH (2) (NON-ILLUSTRATED)
11PLUG-BUTTON, ALMOND, HANDLE/DR STOP
12PLUG-BUTTON, ALMOND, HINGE BRG HOLE
13HANDLE-DOOR, ALMOND, FRZR
14WCI 5303206770
15WCI 5303206771
17NAMEPLATE
18BEARING-HINGE
19PANEL-FRZR DOOR, ALMOND
20SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
225303207345 Frigidaire Refrigerator Door Gasket
23WCI 5303273068
245303325990 Frigidaire Refrigerator Door Bar End Cap
245303325991 Frigidaire Refrigerator Door Bar Endcap
255303323480 Frigidaire Refrigerator Door Bar End Cap Rh
255303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
26PANEL-REFR DOOR, ALMOND
