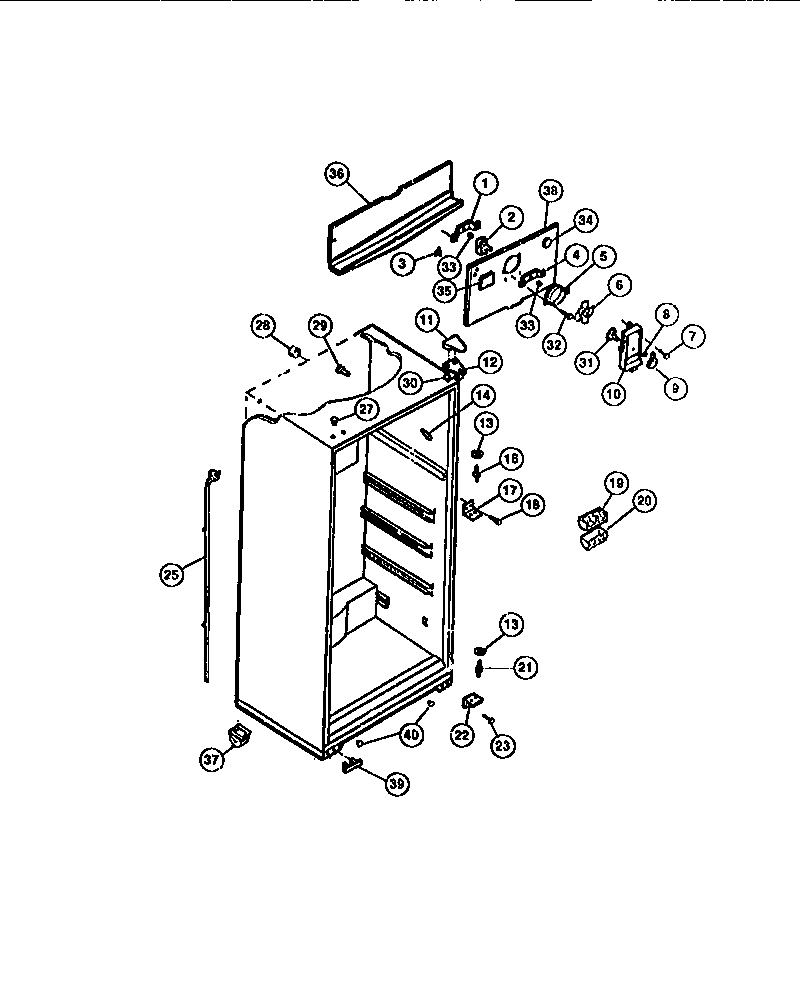

FPDA18TPLL0 03 – INTERIOR FREEZER COMPARTMENT

FPDA18TPLL0 03 – INTERIOR FREEZER COMPARTMENT

Written by

in

FPDA18TPLL0 03 – INTERIOR FREEZER COMPARTMENT

Products

PositionProduct
*03201PLUG, BUTTON, CABINET LINER (NI)
*03202TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1BRACKET-MOTOR MTG, REAR
25300158289 Frigidaire Evaporator Fan Motor
3WCI 5308000107
35304455651 Frigidaire Refrigerator Screw
4WCI 5303205118
5RING-FAN ORIFICE
65308000010 Frigidaire Refrigerator Evaporator Fan Blade
8Nut,push-on
9WCI 3206389
10WCI 3206387
11WCI 3206105
12WCI 3206100
13WCI 5308000186
14TRIM-CABINET CORNER, ALMOND
16WCI 5308000184
17BRACKET-CTR HINGE
18SCREW – MULLION (2)
19WCI 5306014667
19EXTENSION, AIR DEFLECTOR, WITH INSULATION
20WCI 5303001448
215303001321 Frigidaire Refrigerator Lower Hinge Pin
22WCI 3206136
23241710601 Frigidaire Refrigerator Screw
25WCI 5303269702
25WCI 5303001361
25WCI 5308000056
27PLUG-BUTTON, ALMOND, UPR HINGE HOLES
28TUBE-RUBBER
29SUPPORT-COIL COVER
30SHIM – UPPER HINGE
31WCI 3206110
33G187559 Frigidaire Refrigerator Bushing
345304455650 Frigidaire Refrigerator Screw
34WCI 3206451
34NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
35BUTTON – DECORATIVE PLUG
36TROUGH-DRAIN
37WCI 3206237
37WCI 5300188673
385303208309 Frigidaire Refrigerator Plug Hole
39WCI 3206135
40PLUG-BUTTON
