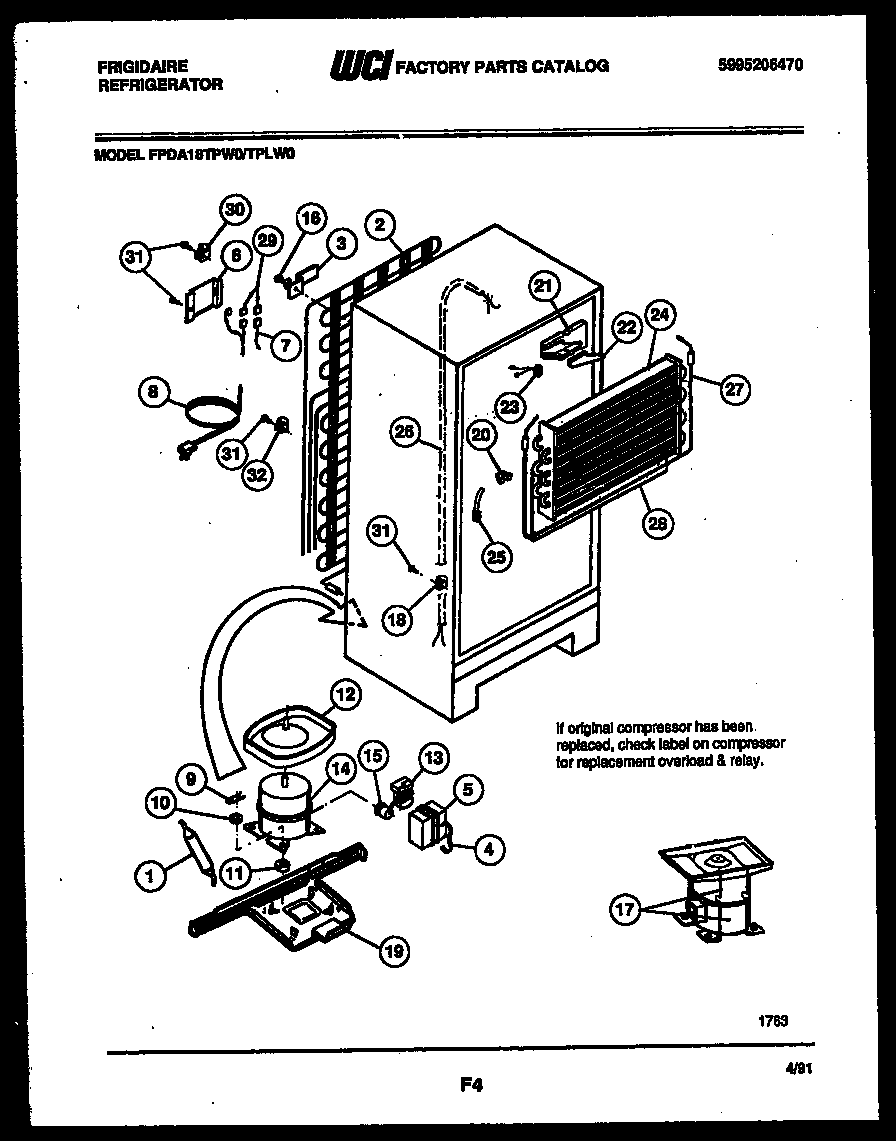

FPDA18TPLW0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPDA18TPLW0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPDA18TPLW0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*45998STRAP – CAPACITOR MOUNTING
*45997CAPACITOR
*45998WCI 3916557
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5300163133
3BRACKET-MTG (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI 5303001197
7WIRING HARNESS-COMPRESSOR
8CORD-ELECTRIC POWER
9CLIP – COMPRESSOR MTG
10WASHER-COMPR MTG
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
12PAN-DEFROST DRAIN, ORIG/SVCE COMPR
12BNut,lock `1/4-20 ,drain pan mtg
13RELAY-TL
14COMPRESSOR W/ ELEC
15WCI 5303272031
165308000039 Frigidaire Refrigerator Screw
16AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
17PAN RETAINER KIT, SERVICE
19A5304500008 Frigidaire Oven Screw
19WCI 3206126
20INSULATION BLOCK, LH
21INSULATION BLOCK, RH
22INSULATION PLUG, RH
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24EVAPORATOR
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26WCI 5308000728
273206453 Frigidaire Refrigerator Defrost Heater 22 1/4" Wide X 4" Deep
28WCI 5303207493
29WCI 3018900
305308000133 Frigidaire Refrigerator Clamp
315304455651 Frigidaire Refrigerator Screw
325303001199 Frigidaire Refrigerator Wiring Harness Clamp
