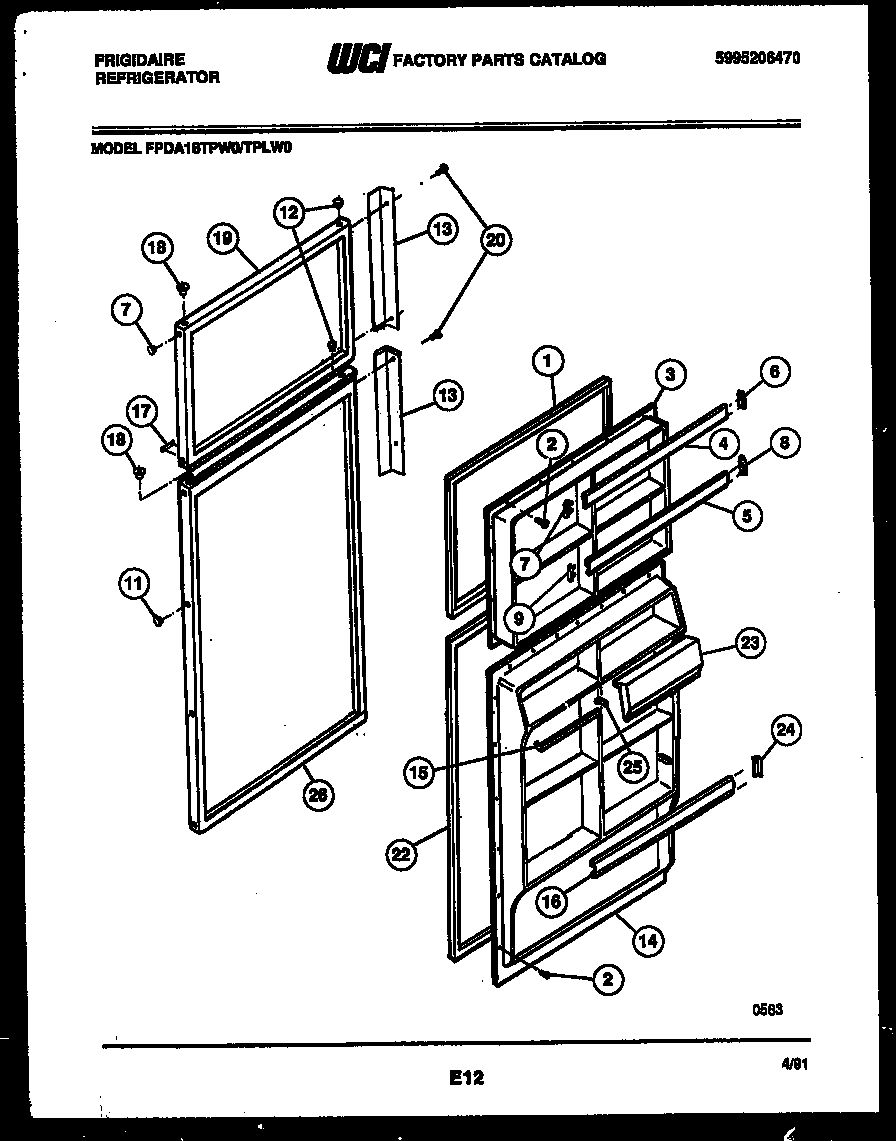

FPDA18TPW0 02 – DOOR PARTS

FPDA18TPW0 02 – DOOR PARTS

Written by

in

FPDA18TPW0 02 – DOOR PARTS

Products

PositionProduct
*45989INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR DOOR, MAGNETIC, BROWN
25304455651 Frigidaire Refrigerator Screw
3WCI 3206463
4RACK-TOP
5215516220 Frigidaire Refrigerator Door Rack
8SUPPORT, RH (2)
9SUPPORT, LH (2) (NON-ILLUSTRATED)
11240494001 Frigidaire Refrigerator Plug Button
12PLUG-BUTTON, WHITE, HINGE BRG HOLE
13HANDLE-DOOR, WHITE, FRZR
14WCI 5303206770
15WCI 5303206771
17NAMEPLATE
18BEARING-HINGE
19PANEL-FREEZER-WHITE
20SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
225303207345 Frigidaire Refrigerator Door Gasket
23WCI 5303273066
24A5303325991 Frigidaire Refrigerator Door Bar Endcap
245303325990 Frigidaire Refrigerator Door Bar End Cap
25A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
255303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
26PANEL-REFR-WHITE
