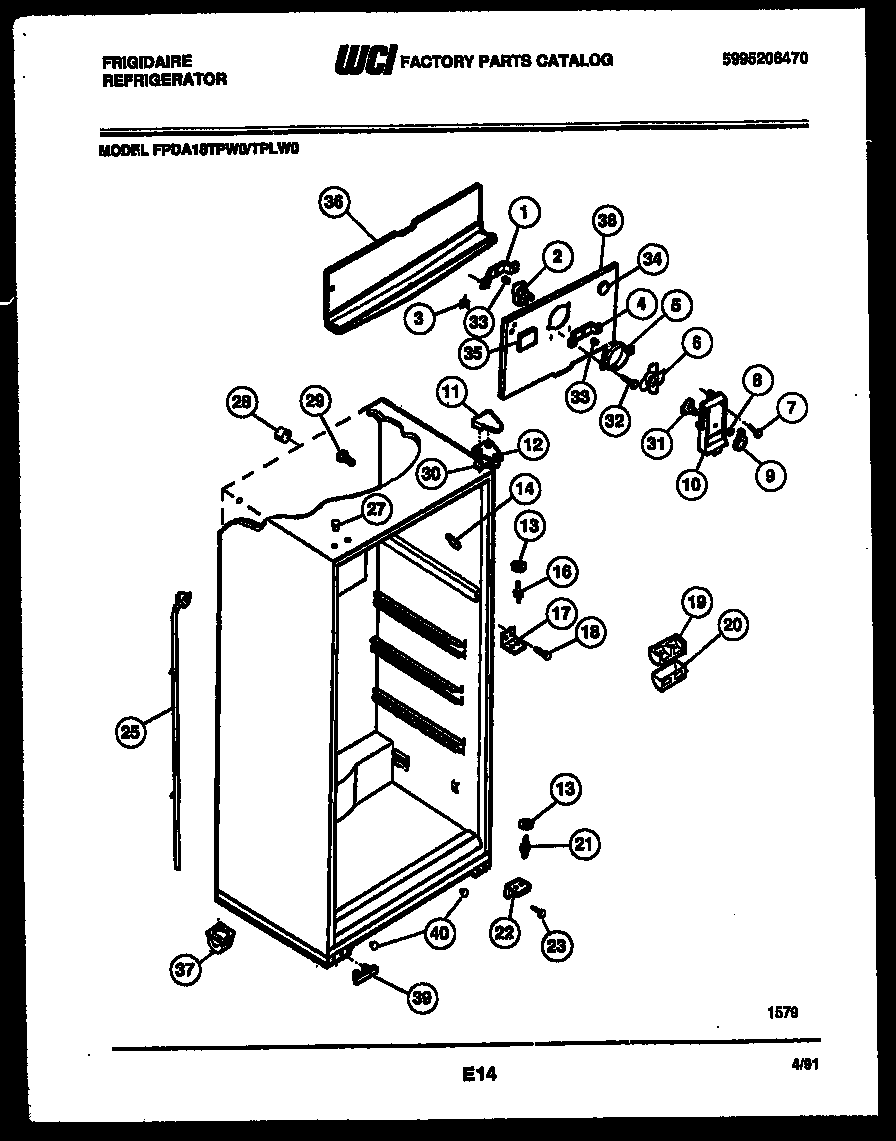

FPDA18TPW0 03 – CABINET PARTS

Written by

Products

Position	Product
*45993	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*45993	PLUG, BUTTON, CABINET LINER (NI)
1	BRACKET-MOTOR MTG, REAR
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI 5308000107
3A	5304455651 Frigidaire Refrigerator Screw
4	WCI 5303205118
5	RING-FAN ORIFICE
6	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	Nut,push-on
9	WCI 3206389
10	WCI 3206387
11	WCI 3206101
12	WCI 3206100
13	WCI 5308000186
14	TRIM-CABINET CORNER, WHITE
16	WCI 5308000184
17	BRACKET-CTR HINGE
18	SCREW – MULLION (2)
19A	EXTENSION, AIR DEFLECTOR, WITH INSULATION
19	DEFLECTRO, AIR, W/SEAL
20	WCI 5303001448
21	5303001321 Frigidaire Refrigerator Lower Hinge Pin
22	WCI 3203136
23	241710601 Frigidaire Refrigerator Screw
25A	WCI 5308000056
25B	WCI 5303001361
25	WCI 5303269702
27	PLUG-BUTTON, WHITE
28	TUBE-RUBBER
29	SUPPORT-COIL COVER
30	SHIM – UPPER HINGE
31	WCI 3206110
33	G187559 Frigidaire Refrigerator Bushing
34B	5304455650 Frigidaire Refrigerator Screw
34	WCI 3206451
34A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
35	BUTTON – DECORATIVE PLUG
36	TROUGH-DRAIN
37A	WCI 5300188673
37	WCI 3206237
38	5303208309 Frigidaire Refrigerator Plug Hole
39	WCI 3206135
40	PLUG-BUTTON
