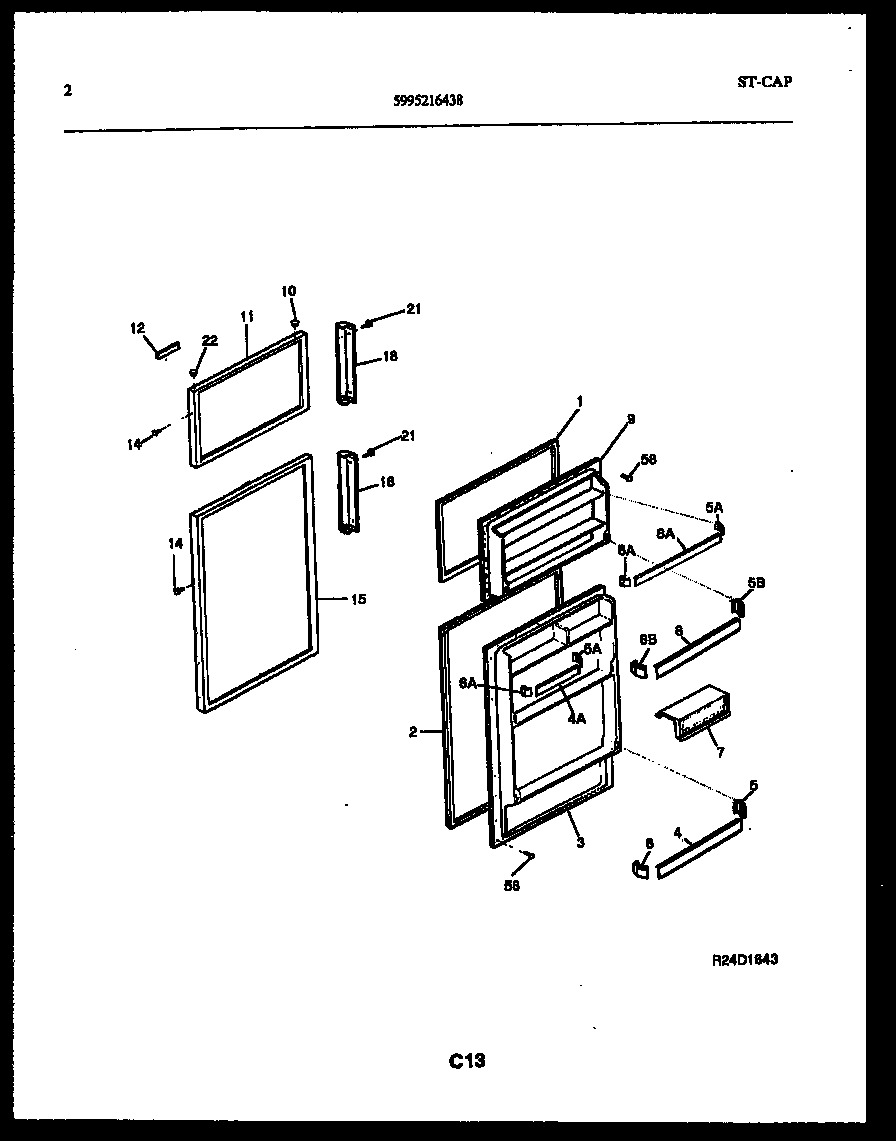

FPDA18TPW1 02 – DOOR PARTS

FPDA18TPW1 02 – DOOR PARTS

Written by

in

FPDA18TPW1 02 – DOOR PARTS

Products

PositionProduct
*57711INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR DOOR, MAGNETIC, BROWN
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 5303206770
4AWCI 5303206771
55303325990 Frigidaire Refrigerator Door Bar End Cap
5BSUPPORT, RH (2)
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
65303325991 Frigidaire Refrigerator Door Bar Endcap
6BSUPPORT, LH (2) (NON-ILLUSTRATED)
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303273066
8ARACK-TOP
8215516220 Frigidaire Refrigerator Door Rack
9WCI 3206463
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11PANEL-FREEZER-WHITE
12NAMEPLATE
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR-WHITE
18HANDLE-DOOR, WHITE, FRZR
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
