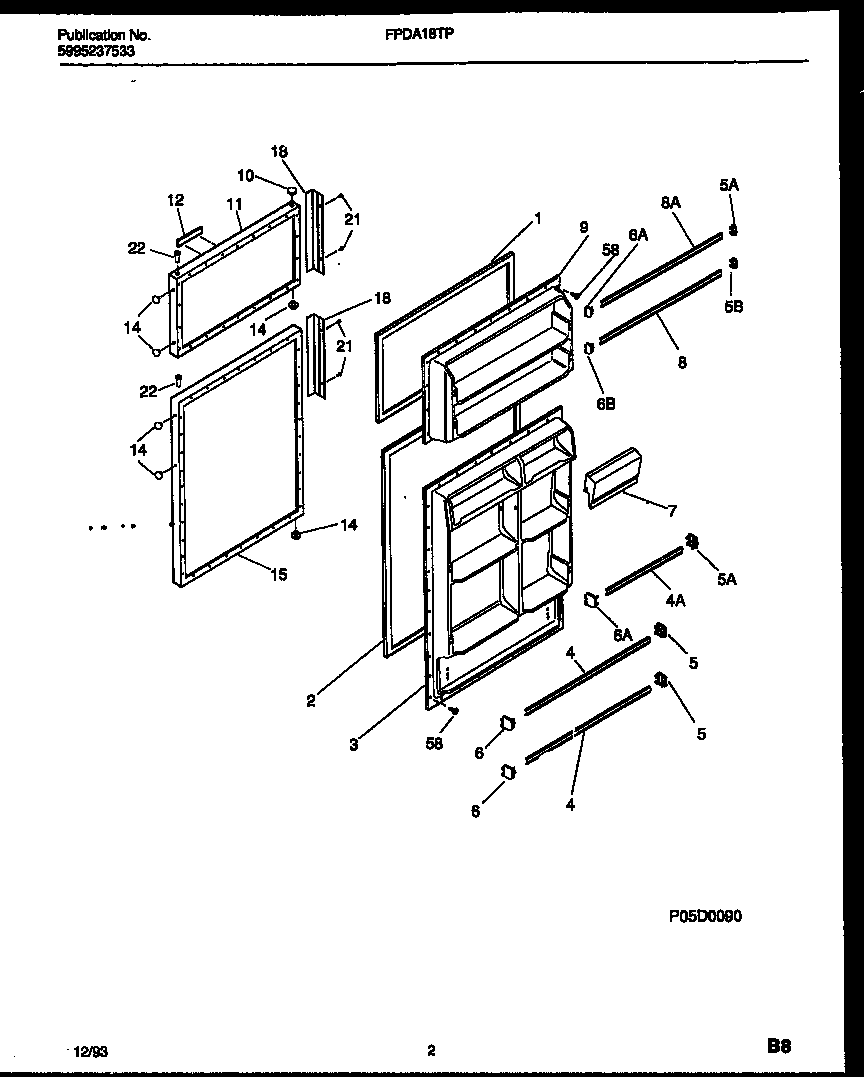

FPDA18TPW2 02 – DOOR PARTSadmin2025-04-26T08:34:21+00:00FPDA18TPW2 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *89734 | INSULATION-BULK (NON-ILLUSTRATED) |
| 1 | WCI 215568016 |
| 2 | 5303207345 Frigidaire Refrigerator Door Gasket |
| 3 | WCI 5303206770 |
| 5B | SUPPORT, RH (2) |
| 5 | 5303325990 Frigidaire Refrigerator Door Bar End Cap |
| 5A | 5303323480 Frigidaire Refrigerator Door Bar End Cap Rh |
| 6B | SUPPORT, LH (2) (NON-ILLUSTRATED) |
| 6 | 5303325991 Frigidaire Refrigerator Door Bar Endcap |
| 6A | 5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap |
| 7 | WCI 5303275021 |
| 8 | 215516220 Frigidaire Refrigerator Door Rack |
| 8A | WCI 5303206632 |
| 9 | WCI 3206463 |
| 10 | PLUG-BUTTON, WHITE, HINGE BRG HOLE |
| 11 | PANEL-FREEZER-WHITE |
| 12 | NAMEPLATE |
| 14 | 240494001 Frigidaire Refrigerator Plug Button |
| 15 | PANEL-REFR-WHITE |
| 18 | HANDLE-DOOR, WHITE, FRZR |
| 21 | SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE, |
| 22 | BEARING-HINGE |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
