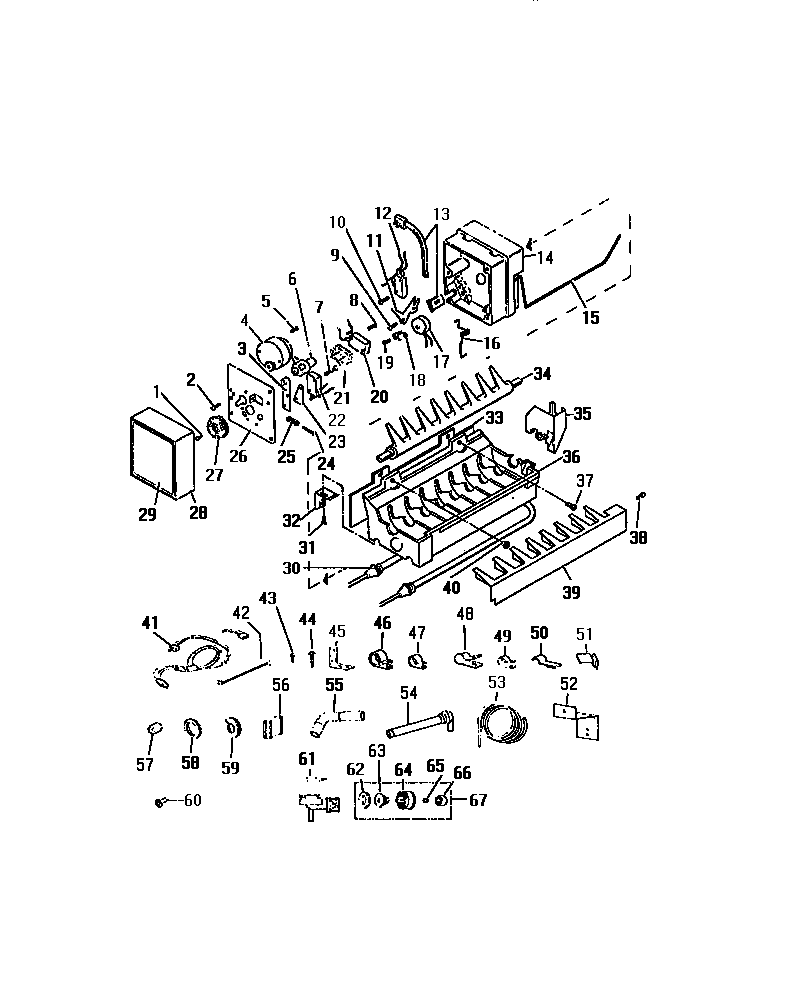

FPE16TCA0 12 – IK-4 AUTOMATIC ICE MAKER

Products

Position	Product
1	WCI 8001182
2	SCREW (3)
3	PLATE-VALVE SW.
4	WCI 8001244
5	WCI 8001156
6	WCI 8001247
7	SCREW 4-40 X 3/4 (2)
8	WCI 8001148
9	WCI 8001255
10	SCREW 4-24 X 3/4
11	ARM-LEVER
14	WCI 8001235
15	ARM-SHUT OFF
16	SPRING-SHUT OFF
17	WCI 8001250
18	WCI 8001236
21	SPACER-HOLD. SW.
22	SWITCH-SHUT OFF
23	WCI 8001241
24	SCREW 8-32 X 1
25	WCI 8001251
26	WCI 8001239
27	WCI 8001248
28	WCI 8000214
29	WCI 8005251
30	WCI 8001243
32	WCI 8001246
33	WCI 8000236
34	WCI 8001253
35	BEARING & INLET
36	WCI 8001254
37	WCI 8005288
38	SCREW
39	STRIPPER-ICE
40	EYELET (2)
41A	WCI 8014553
41	WCI 8950138
42	SEALING STRIP-BULK
43	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
44	WCI 8002728
45	CLAMP-CABLE (3)
46	WCI 8000133
47	WCI 8000221
48	WCI 8009561
49	WCI 8000250
50	CLIP-TUBE
51	WCI 8000201
52	BRACKET-WATER VALVE
53	WCI 8010366
54	TUBE-INLET
55	TUBE-FILLER
56	PLUG-ADAPTER
57	NUT 7/16-20 NYLON
58	WCI 8000240
59	WCI 800241
60	WCI 8010335
61	VALVE-WATER
62	WCI 8001143
63	WCI 1121980
64	WCI 1121985
65	WCI 114628
66	WCI 114627
67	WCI 8000205
