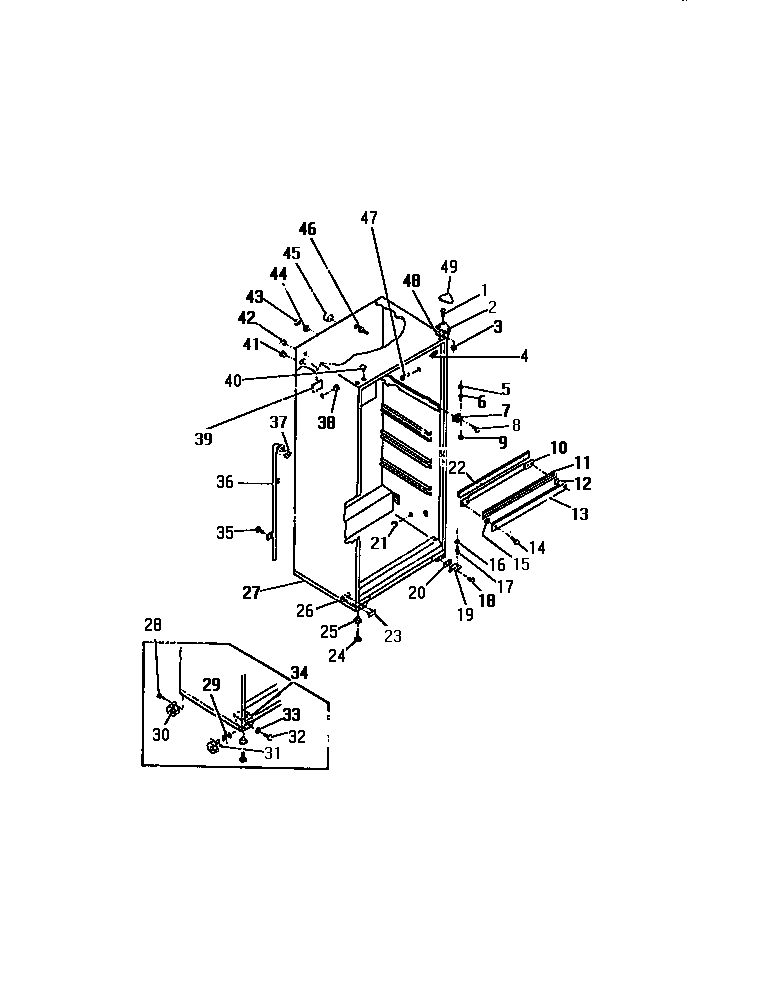

FPE16TCH0 03 – CABINET

Products

Position	Product
1	SCREW-HINGE MOUNTING (2)
2	WCI 8012843
4	WCI 8010016
6	WCI 8000184
7	WCI 8000757
9	WASHER-5/16 NYLON
10	WCI 8003604
11	WCI 8000744
12	WCI 8003607
13	WCI 8010031
14	SCREW-HINGE/MULLION (4)
15	WCI 8010007
16	WASHER-1/4 NYLON (3)
17	PIN-LOWER HINGE
18	SCREW-HINGE MOUNTING
19	BRACKET-HNG
20	SHIM-LOWER HINGE
21	PLUG-REFRIGERATOR LINER (2)
22	WCI 8009638
23	WCI 8003585
24	SCREWS LEVELING (4)
25	WCI 8003584
26	PLATE-TAPPING (2)
27	CABINET BASE
28	WCI 8009762
29	WCI 8009790
30	WCI 8009773
31	WCI 8009760
32	WCI 8009761
33	WCI 8011326
34	WCI 8013678
35	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
36	WCI 8010012
37	WCI 8009755
38	BTN-PLUG (5)
39	WCI 8013636
39	WCI 8000082
40	WCI 8007127
41	WCI 8000014
42	WCI 8000040
43	WCI 8006971
44	WCI 8006970
45	WCI 8000004
46	WCI 8000097
47A	WCI 8009759
47	WCI 8002747
48	WCI 8012829
49	COVER-HNG-WEAT
