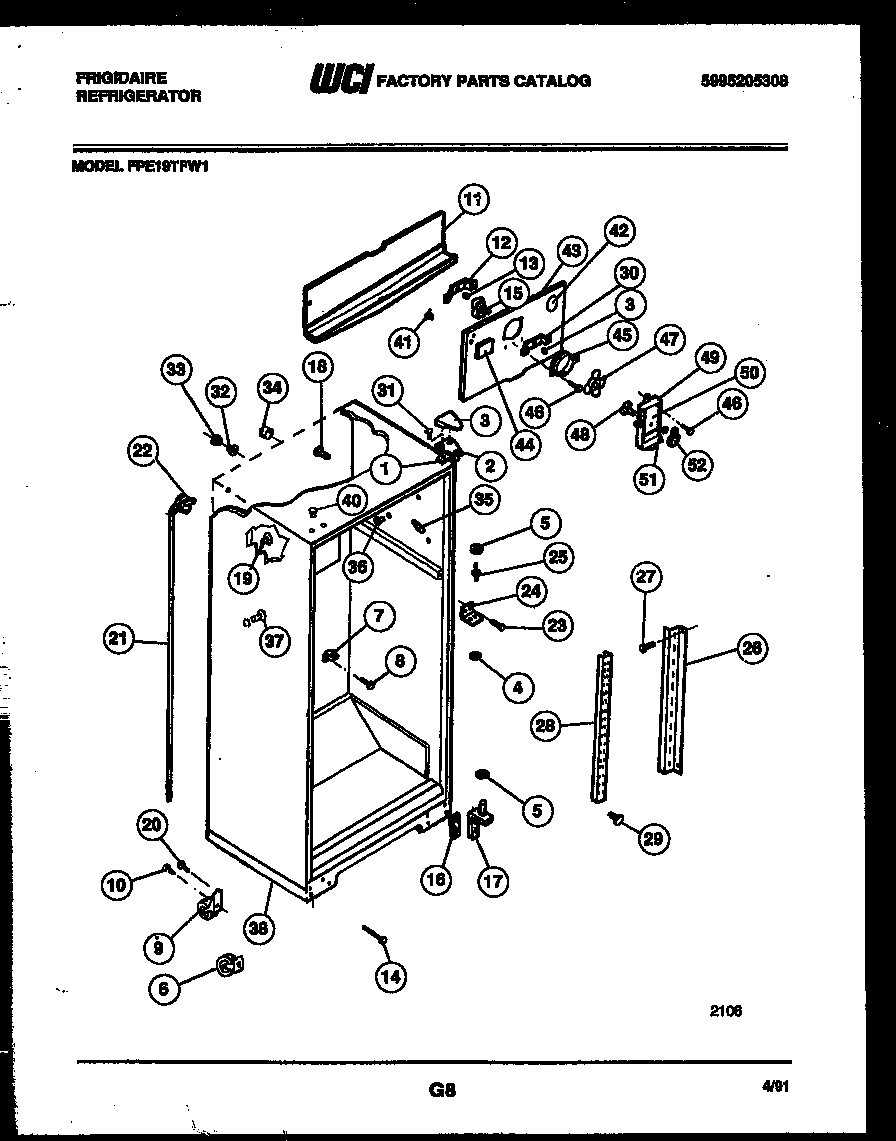

FPE19TFA1 03 – CABINET PARTS

Products

PositionProduct
*45461LABEL, KNOB
*45461TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1SHIM – UPPER HINGE
2BRACKET-UPPER HINGE
3COVER-HINGE-AVOCADO
4WCI 5308000186
5WASHER, .34 X .62 X .05, NYLON
6WCI 5303212490
7WCI 5308000056
8WCI 5303001361
9WCI 5308009773
10BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
11WCI 5303001470
12BRACKET-MOTOR MTG, REAR
13G187559 Frigidaire Refrigerator Bushing
14BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
155300158289 Frigidaire Evaporator Fan Motor
16WCI 5303212488
17ATAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
17C241710601 Frigidaire Refrigerator Screw
17BTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
17BRACKET-LOWER HINGE, W/ HINGE PIN
18SUPPORT-COIL COVER
19PLUG, BUTTON, CABINET LINER (NI)
205304455651 Frigidaire Refrigerator Screw
21WCI 5303210377
22WCI 5303207353
23WCI 5308012258
24BRACKET-CTR HINGE
25WCI 5308000184
26CHANNEL, RH & LH
28WCI 5303015409
29WCI 5308016568
30WCI 5303205118
32WCI 5303001286
33WCI 5303001287
34TUBE-RUBBER
35CORNER
365304509705 Frigidaire Refrigerator Grommet
375304500407 Frigidaire Refrigerator Shelf Mounting Grommet
38WCI 5303212487
40BUTTON-HINGE-AVOCADO
41WCI 5308000107
425303208309 Frigidaire Refrigerator Plug Hole
43WCI 5308009771
43ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
43B5304455650 Frigidaire Refrigerator Screw
44BUTTON – DECORATIVE PLUG
45RING-FAN ORIFICE
465304455852 Frigidaire Refrigerator Screw
475308000010 Frigidaire Refrigerator Evaporator Fan Blade
48DAMPER-FAN COVER
49FAN COVER
50WCI 08009924
51Nut,push-on
52KNOB, DAMPER
