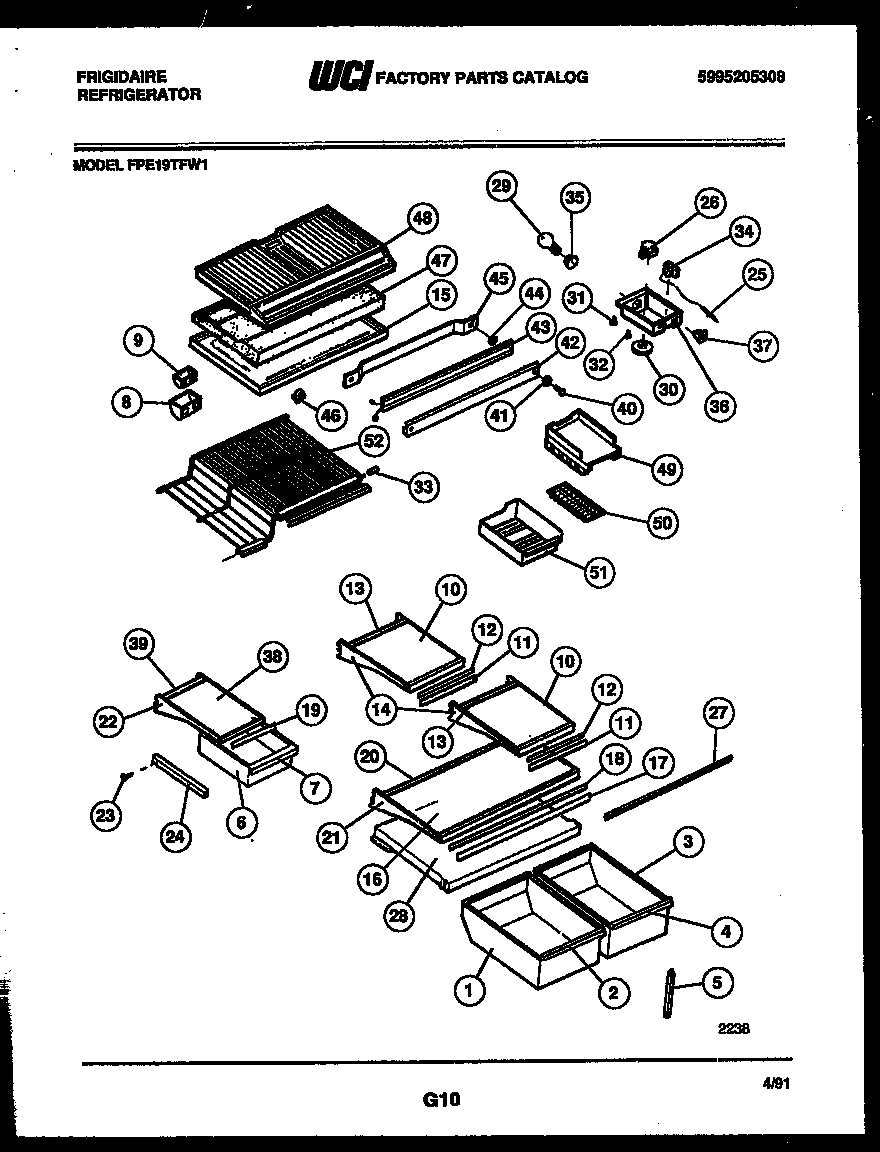

FPE19TFH1 04 – SHELVES AND SUPPORTS

Products

Position	Product
*45469	TRIM-SHELF-FREEZER
*45469	TRIM-SHELF-FREEZER
*45469	WCI 08012329
1	PAN, CRISPER, LH
2	TRIM-PAN
3	PAN, CRISPER, RH
4	TRIM-PAN
5	SUPPORT, COVER
6	WCI 3018987
7	WCI 3018986
8	WCI 5303001448
9	DEFLECTRO, AIR, W/SEAL
9A	EXTENSION, AIR DEFLECTOR, WITH INSULATION
10	WCI 3200315
11	TRIM-HALF SHELF (2)
13	WCI 3200317
14	WCI 3200318
15	TOP – REFRIGERATOR
16	WCI 5303200319
16A	RAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
17	WCI 3018980
18	WCI 3200321
19A	TRIM, MEAT SHELF
19	RETAINER-MEAT SHELF
20	WCI 3200326
21	FRAME-FULL SHELF, CANTILEVER, (2)
22	WCI 3200328
23	WCI 08014528
24	HANGER-PAN LH
24A	HANGER-PAN RH (NON-ILLUSTRATED)
25	WCI 3018891
26	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
27	GASKET-CRISPER COVER (NON-ILLUSTRATED)
28A	WCI 3018984
28	WCI 5303018983
28B	WCI 3200389
29	316538904 Frigidaire Oven Lamp Light
30	KNOB, TEMP CONTROL
31	5304455649 Frigidaire Refrigerator Screw
32	WCI 5303001260
33	END CAP-SHELF,PROTECTOR
34	WCI 5303018894
35	218906802 Frigidaire Light Lamp Socket
36	CONTROL BOX
37	WCI 5303018896
38	WCI 3200330
39	WCI 3200331
40	WCI 5308012258
41	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
42	WCI 5303200368
43	WCI 5303210351
44	SPACER-MULLION MTG, STEEL
45	WCI 5308010008
46	5309918806 Frigidaire Refrigerator Light Switch Door
47B	WCI 3018900
47	DIVIDER-FOAM
47A	WCI 5303001380
48A	3205266 Frigidaire Refrigerator Edge Protector
48	WCI 5303211427
49	WCI 08009824
50A	5304455651 Frigidaire Refrigerator Screw
50	WCI 01121808
51	5303212918 Frigidaire Refrigerator Cont
52	SHELF-FREEZER-STEP
