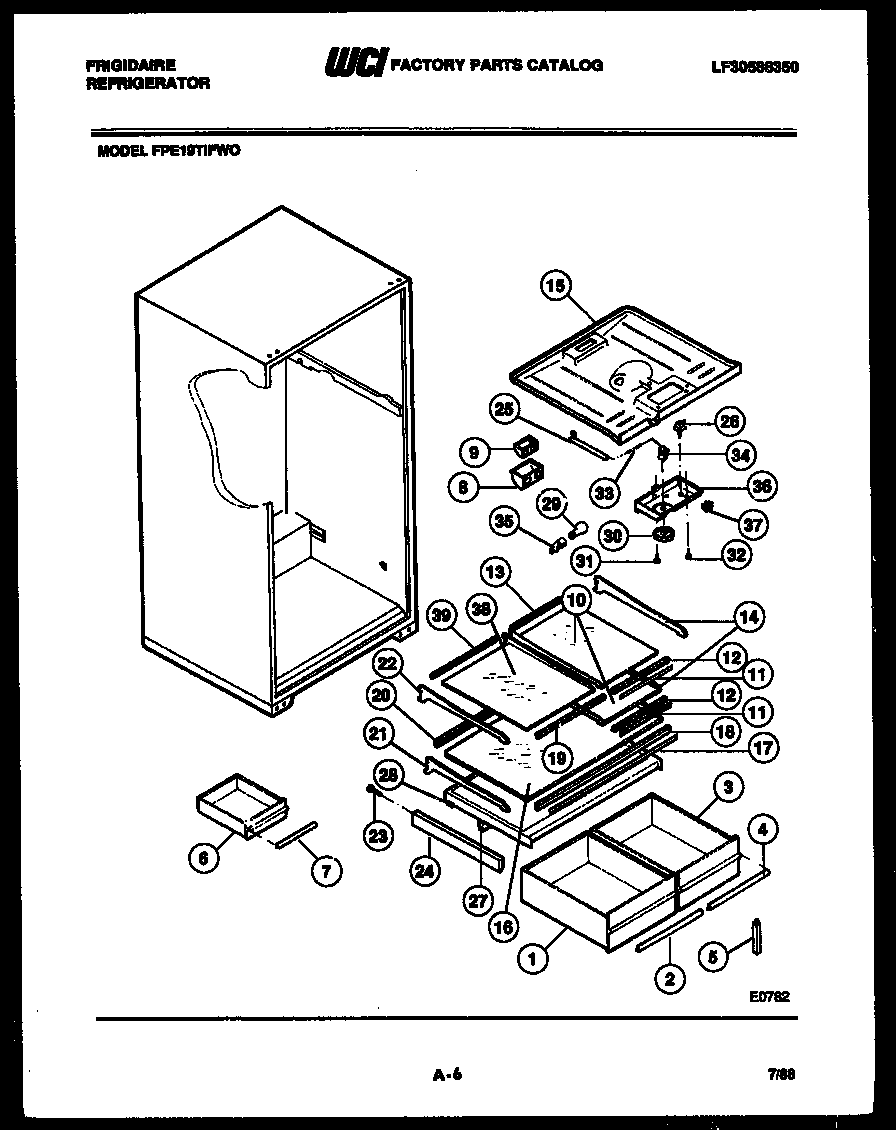

FPE19TIFL0 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	PAN, CRISPER, LH
2	TRIM-PAN
3	PAN, CRISPER, RH
4	TRIM-PAN
5	WCI 3016528
6	WCI 3018987
7	WCI 3018986
8	WCI 8000055
9	WCI 8000071
10	WCI 3200315
11	TRIM-HALF SHELF (2)
13	WCI 3200317
14	WCI 3200318
15	TOP – REFRIGERATOR
16	WCI 3200319
17	WCI 3018980
18	WCI 3200321
19A	TRIM, MEAT SHELF
19	RETAINER-MEAT SHELF
20	WCI 3200326
21	FRAME-FULL SHELF, CANTILEVER, (2)
22	WCI 3200328
23	WCI 8014528
24A	WCI 3018890
24	HANGER-LH (NON-ILLUSTRATED)
25	WCI 3018891
26	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
27	WCI 3200329
28	WCI 3018983
28A	WCI 3018984
29	LIGHT BULB
30	KNOB, TEMP CONTROL
31	WCI 8000008
32	SCREW-CONTROL MOUNTING (2) (NON-ILLUSTRATED)
33	WCI 8003637
34	CONTROL-TEMPERATURE
35	WCI 8000815
36	CONTROL BOX
37	WCI 3018896
38	WCI 3200330
39	WCI 3200331
