FPE19TPW0 04 – SHELVES AND SUPPORTS

FPE19TPW0 04 – SHELVES AND SUPPORTS

Written by

in

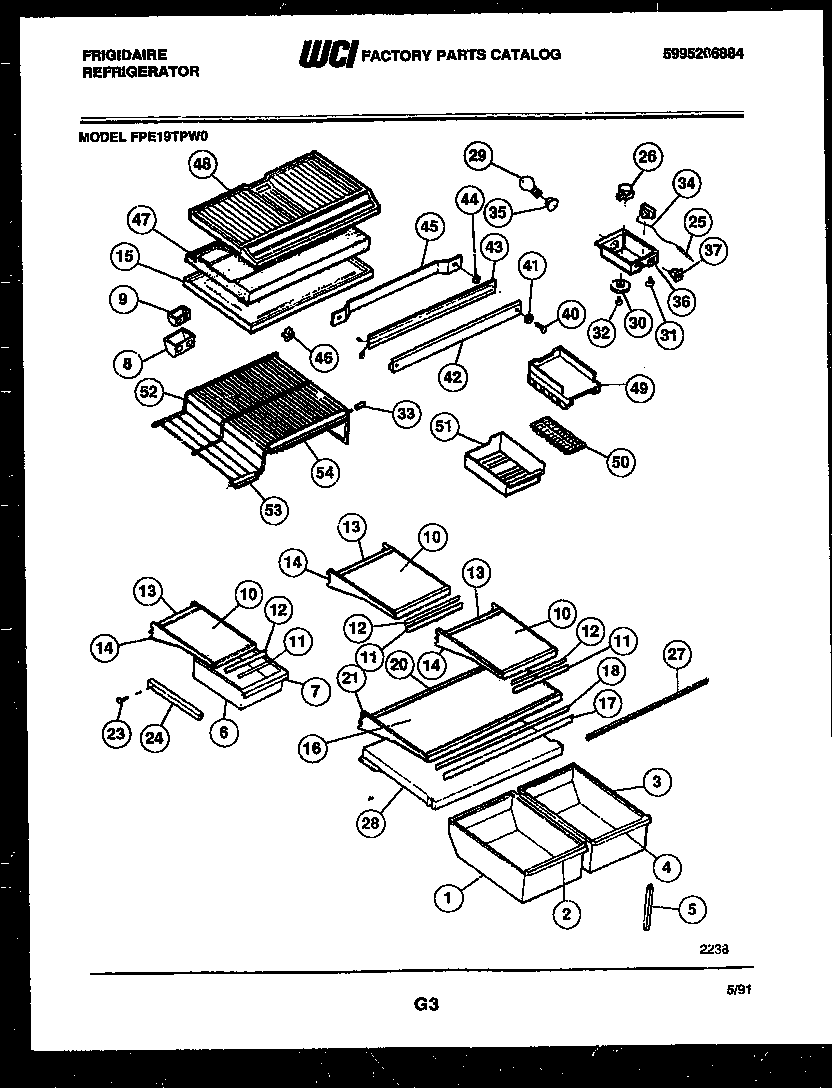

FPE19TPW0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*94278WCI 08012329
1PAN, CRISPER, LH
2TRIM, CRISPER PAN, LH
3PAN, CRISPER, RH
4TRIM, CRISPER PAN, RH
5SUPPORT, COVER
6WCI 3018987
7WCI 5303272530
8WCI 5303001448
9AEXTENSION, AIR DEFLECTOR, WITH INSULATION
9DEFLECTRO, AIR, W/SEAL
10GLASS, MEAT SHELF
11TRIM-HALF SHELF
12RETAINER-GLASS, (3) (NON-ILLUSTRATED)
13TRIM-HALF SHELF, MEAT KPR SHELF, REAR
14FRAME-SHELF (2)
15TOP – REFRIGERATOR
15AWCI 5303001380
16WCI 5303211964
17TRIM-FULL SHELF, SNAP-ON
18WCI 5303209274
20WCI 5303211962
21FRAME-FULL SHELF
23WCI 08014528
24HANGER-PAN LH
24AHANGER-PAN RH (NON-ILLUSTRATED)
25WCI 3018891
26215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
27GASKET-CRISPER COVER (NON-ILLUSTRATED)
28BWCI 5303211968
28AWCI 3018984
28WCI 5303018983
29316538904 Frigidaire Oven Lamp Light
30KNOB, TEMP CONTROL
315304455649 Frigidaire Refrigerator Screw
32WCI 5303001260
33END CAP-SHELF,PROTECTOR
34WCI 5303018894
35218906802 Frigidaire Light Lamp Socket
36CONTROL BOX
37WCI 5303018896
40WCI 5308012258
41WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
42WCI 5303200366
43WCI 5303210351
44SPACER-MULLION MTG, STEEL
45WCI 5308010008
465309918806 Frigidaire Refrigerator Light Switch Door
47AWCI 3018900
47DIVIDER-FOAM
48A3205266 Frigidaire Refrigerator Edge Protector
48WCI 5303211427
49WCI 08009824
50WCI 01121808
50A5304455651 Frigidaire Refrigerator Screw
515303212918 Frigidaire Refrigerator Cont
52SHELF-FREEZER-STEP
53TRIM-FRZR SHELF, SMALL
54TRIM-FRZR SHELF, LARGE
