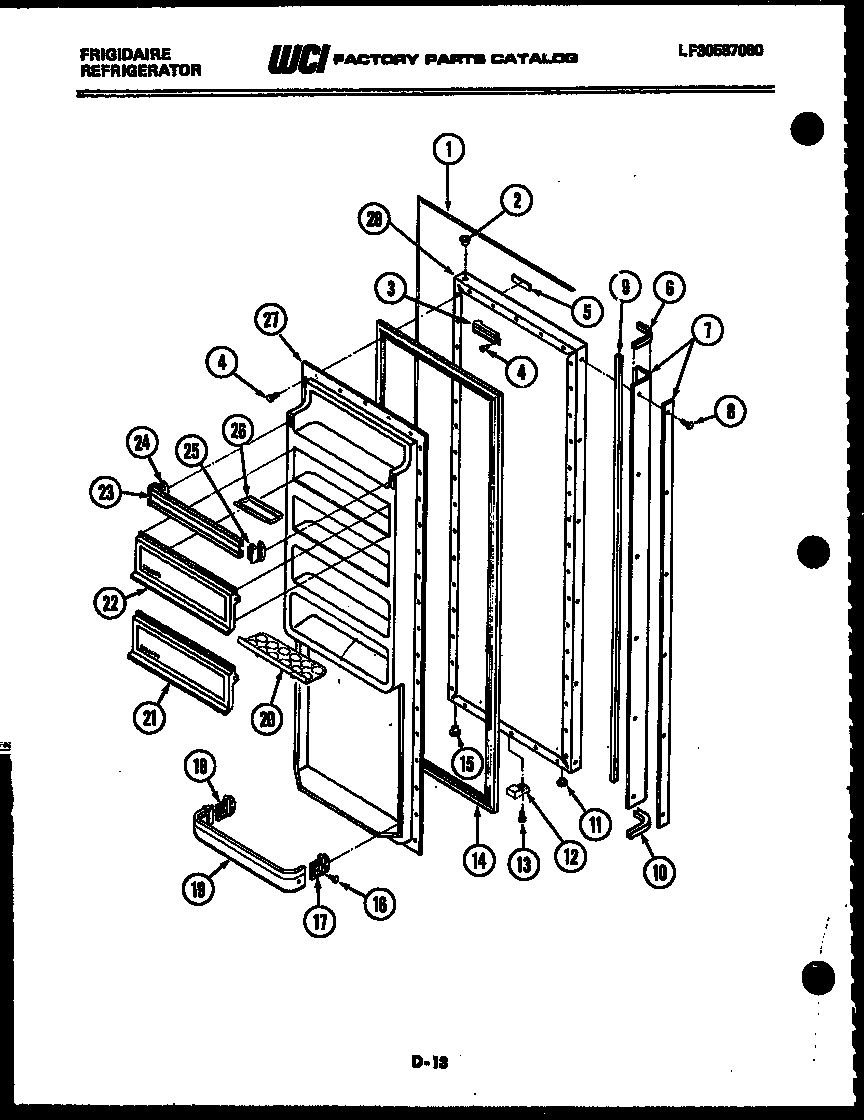

FPE19V3AH1 03 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	WCI 8012824
2	WCI 8012008
3	WCI 8000743
4	SCREW-PANEL MOUNTING (56)
5A	WCI 8012879
5	WCI 8012877
6	END CAP-TOP (2)
7	WCI 8009947
8	SCREW-HANDLE MOUNTING (4)
9	WCI 8010229
10	END CAP-BOTTOM (2)
11	WCI 8002751
12	WCI 8000790
13	WCI 8000839
14	WCI 8010247
15	HINGE BEARING (8)
16	WCI 8002750
17	WCI 8009971
18	WCI 8009970
19	WCI 8009715
20	WCI 8009667
21	WCI 8009714
22	WCI 8009713
23	RACK-DOOR (3)
24	SUPPORT-RACK RS
25	SUPPORT-RACK LS (NON-ILLUSTRATED)
26	WCI 8009664
27	WCI 8009969
28	WCI 8009944
