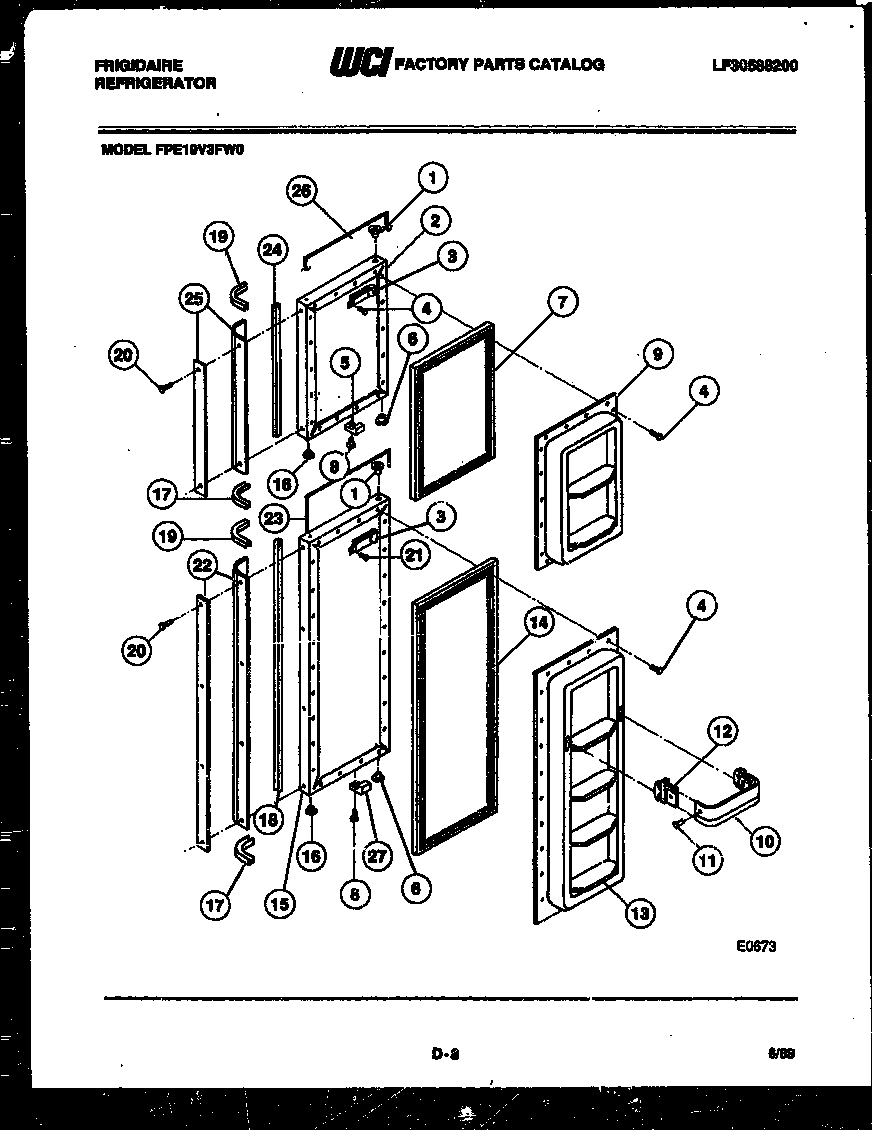

FPE19V3FF0 02 – FREEZER DOOR PARTS

Products

Position	Product
1	WCI 8012008
2	WCI 8009965
3	WCI 8000743
5	WCI 8002802
6	HINGE BEARING (8)
7	WCI 8017430
8	WCI 8000839
9	WCI 3018625
10	WCI 3018626
11	WCI 8002750
12	WCI 3018627
12A	WCI 3018628
13	WCI 8009968
14	WCI 8017426
15	WCI 8009960
16	WCI 8002751
17	END CAP-TOP (2)
18	WCI 8010231
19	END CAP-BOTTOM (2)
20	SCREW-HANDLE MOUNTING (4)
21	SCREW-PANEL MOUNTING (56)
22	WCI 8017428
23	WCI 3018629
24	WCI 8010230
25	WCI 8017432
26	WCI 3018630
27	WCI 8000790
