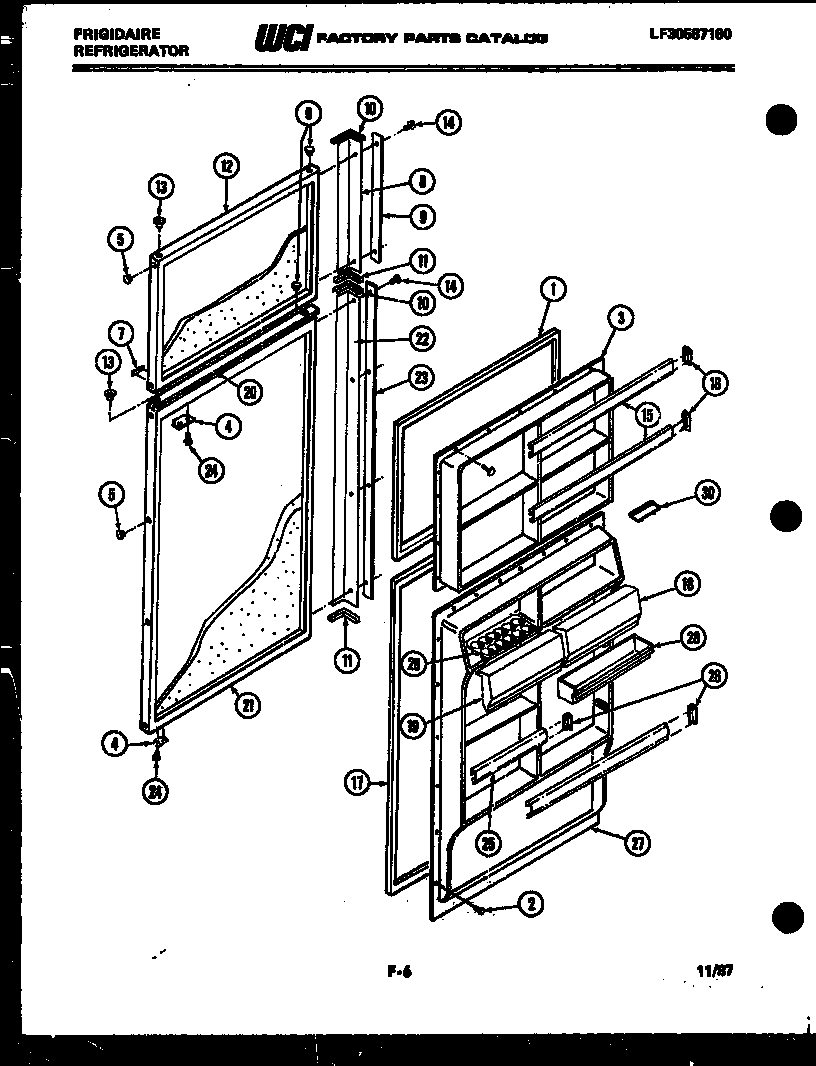

FPE21TCA1 02 – DOOR PARTS

Products

Position	Product
*11553	WCI 5401984
*11552	WCI 5418397
*11552	WCI 8009633
*11553	WCI 5401987
*11552	WCI 8009601
*11553	WCI 5401988
1	WCI 8016617
2	SCREW-PANEL MOUNTING (56)
3	WCI 8013672
4	WCI 8000255
5	PLUG-HANDLE-AVOCADO
6	PLUG-HINGE-AVOCADO
7	WCI 8009926
8	HANDLE-COMPLETE
9	WCI 8010234
10	END CAP-TOP (2)
11	END CAP-BOTTOM (2)
12	WCI 8013667
13	HINGE BEARING (8)
14	SCREW-HANDLE MOUNTING (4)
15	WCI 8013641
16A	SUPPORT-RACK RS
16	SUPPORT-RACK LS (NON-ILLUSTRATED)
17	WCI 8015544
18	DAIRY DOOR
19	WCI 8009911
20	WCI 8009857
21	WCI 8010019
22	WCI 8009979
23	WCI 8010233
24	WCI 8011745
25	215516220 Frigidaire Refrigerator Door Rack
26	SUPPORT-RACK RS (2)
26A	SUPPORT-RACK LS (2) (NON-ILLUSTRATED)
27	PANEL INNER DR.
28	UTILITY BIN
29	WCI 8009667
30	WCI 8009664
