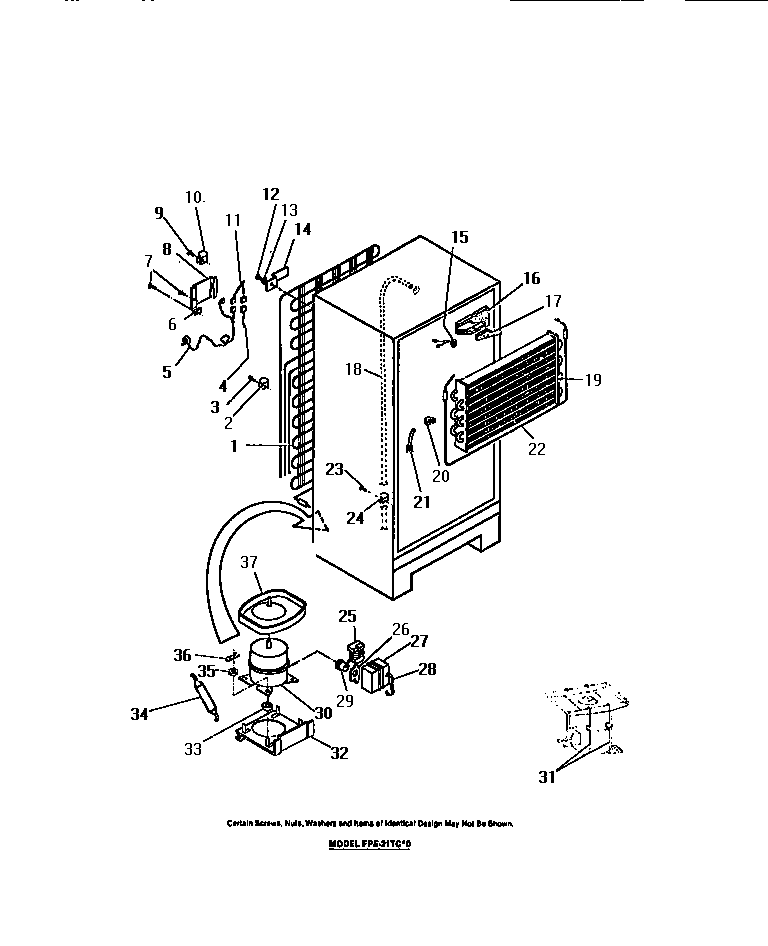

FPE21TCH0 17 – COMPRESSOR, CONDENSER, EVAPORATOR

Products

Position	Product
1	WCI 8015859
2	CLAMP-CABLE (3)
4	WCI 8009565
5	WCI 8000064
6	CLAMP-STRAIN RELIEF (3)
8	WCI 8013644
9	SCREW-PANEL MOUNTING (56)
10	WCI 8000187
11	WCI 8013675
13	WCI 8009617
14	BRACKET-CONDENSER MOUNTING (4)
15	WCI 8000073
16	WCI 8013646
17	WCI 8013648
18	WCI 8010274
19	WCI 8000062
20	WCI 8003647
21	WCI 8000110
22	WCI 8000061
23	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
24	WCI 8003643
25	WCI 8000024
26	WCI 8000115
27	WCI 8000116
28	WCI 8000117
29	WCI 8000114
30	WCI 8950106
31	WCI 8950024
32	WCI 8013663
33	WCI 8008778
34	WCI 8000027
35	WASHER (4)
36	CLIP (4)
37	DEFROST PAN-SERVICE COMPRESSOR
