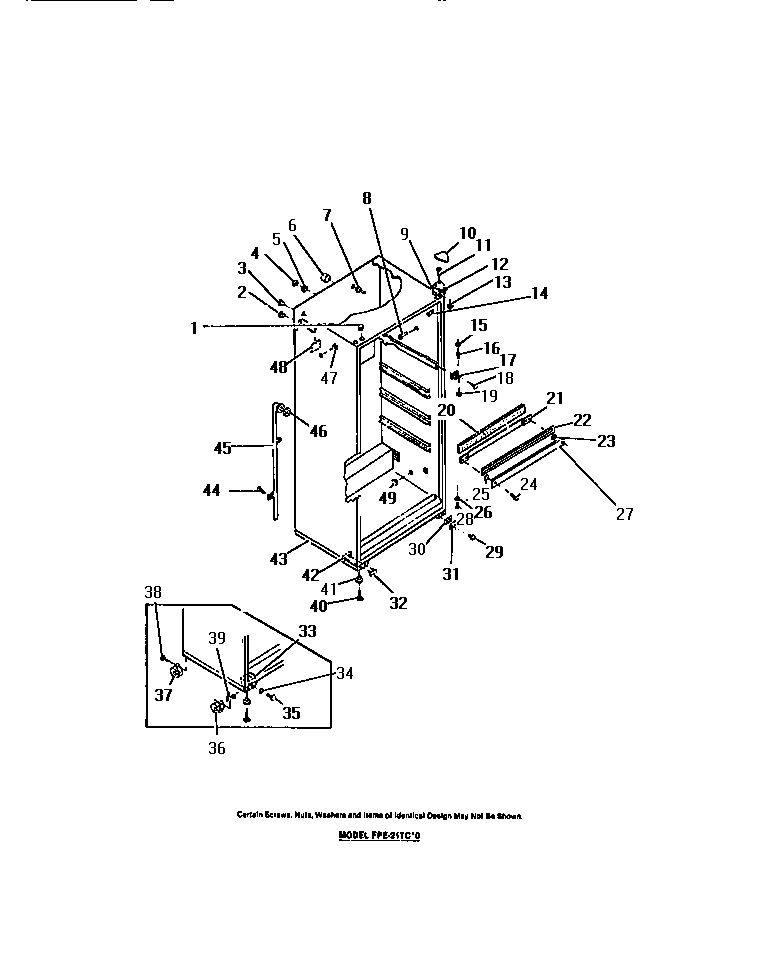

| 1B | WCI 8007129 |
| 2 | WCI 8000014 |
| 3 | WCI 8000040 |
| 4 | WCI 8006971 |
| 5 | WCI 8006970 |
| 6 | WCI 8000004 |
| 7 | WCI 8000097 |
| 8A | WCI 8002747 |
| 8 | WCI 8009759 |
| 9 | WCI 8012829 |
| 10B | COVER, HNG, ALMD |
| 11 | SCREW-HINGE MOUNTING (2) |
| 12 | WCI 8012843 |
| 14B | WCI 8010018 |
| 16 | WCI 8000184 |
| 17 | WCI 8000757 |
| 19 | WASHER-5/16 NYLON |
| 20 | WCI 8009638 |
| 21 | WCI 8010008 |
| 22 | WCI 8000058 |
| 23 | WCI 8003607 |
| 24 | SCREW-HINGE/MULLION (4) |
| 25 | WCI 8010007 |
| 26 | WASHER-1/4 NYLON (3) |
| 27B | WCI 8010029 |
| 28 | PIN-LOWER HINGE |
| 29 | SCREW-HINGE MOUNTING |
| 30 | SHIM-LOWER HINGE |
| 31 | BRACKET-HNG |
| 32 | WCI 8003585 |
| 33 | WCI 8013678 |
| 34 | WCI 8011326 |
| 35 | WCI 8009761 |
| 36 | WCI 8009760 |
| 37 | WCI 8009773 |
| 38 | WCI 8009762 |
| 39 | WCI 8009790 |
| 40 | SCREWS LEVELING (4) |
| 41 | WCI 8003584 |
| 42 | PLATE-TAPPING (2) |
| 43 | WCI 8010092 |
| 44 | SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED) |
| 45 | WCI 8010012 |
| 46 | WCI 8009755 |
| 47 | BTN-PLUG (5) |
| 48 | WCI 8013636 |
| 49 | PLUG-REFRIGERATOR LINER (2) |
