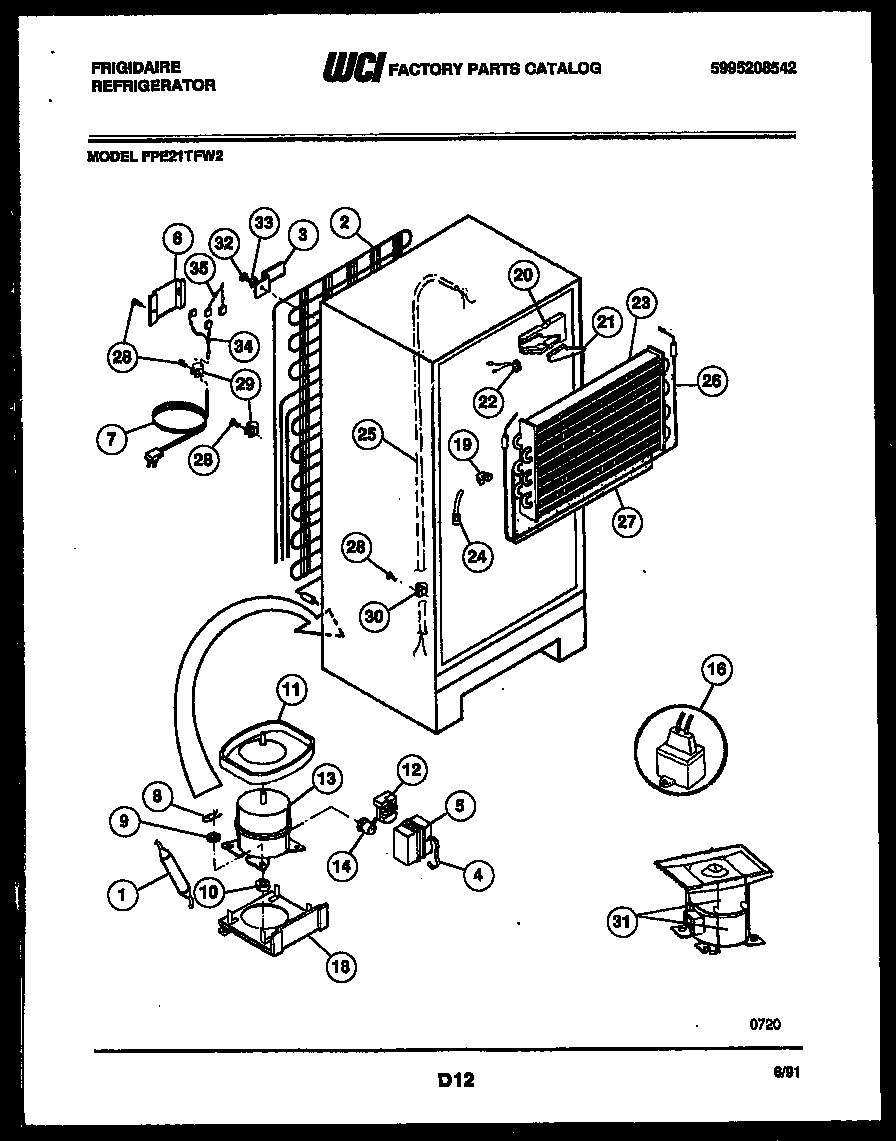

FPE21TFH2 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPE21TFH2 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPE21TFH2 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5300163133
3BRACKET-MTG (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI 5303001197
7CORD-ELECTRIC POWER
8CLIP – COMPRESSOR MTG
9WASHER-COMPR MTG
10218513300 Frigidaire Refrigerator Compressor Mount Grommet
11ANut,lock `1/4-20 ,drain pan mtg
11PAN-DEFROST DRAIN, ORIG/SVCE COMPR
12RELAY-TL
13COMPRESSOR W/ ELECTRICALS
14WCI 5308017532
16CAPACITOR
18WCI 5308013663
19INSULATION BLOCK, LH
20WCI 08013648
21INSULATION PLUG, RH
225303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
23WCI 5300162506
245308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
25WCI 5308000728
265317842502 Frigidaire Defrost Heater
27INSULATOR-EVAP, PLASTIC
285304455651 Frigidaire Refrigerator Screw
295303001199 Frigidaire Refrigerator Wiring Harness Clamp
305308000133 Frigidaire Refrigerator Clamp
31PAN RETAINER KIT, SERVICE
31BHOT TUBE REPAIR KIT-SERVICE
31A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
325308000039 Frigidaire Refrigerator Screw
33WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
34WIRING HARNESS, COMPRESSOR,
35HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
