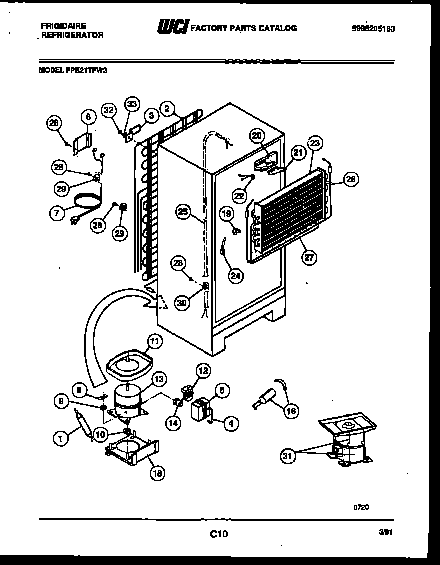

FPE21TFH3 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5300163133
3BRACKET-MTG (4)
4WCI 5303211232
5WCI 5303209254
6AWIRING HARNESS, COMPRESSOR,
6WCI 5303001197
7CORD-ELECTRIC POWER
8CLIP – COMPRESSOR MTG
9WASHER-COMPR MTG
10218513300 Frigidaire Refrigerator Compressor Mount Grommet
11BNut,lock `1/4-20 ,drain pan mtg
11APAN-DEFROST DRAIN, ORIG/SVCE COMPR
11PAN-DEFROST-ORIG COMPRESSOR
12RELAY-TL
13COMPRESSOR W/ ELECTRICALS
14WCI 5303270294
16CAPACITOR
18WCI 5308013663
19INSULATION BLOCK, LH
20INSULATION BLOCK, RH
21INSULATION PLUG, RH
225303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
23EVAPORATOR
245308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
25WCI 5308000728
265317842502 Frigidaire Defrost Heater
27INSULATOR-EVAP, PLASTIC
27AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
285304455651 Frigidaire Refrigerator Screw
295303001199 Frigidaire Refrigerator Wiring Harness Clamp
305308000133 Frigidaire Refrigerator Clamp
31A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
31BHOT TUBE REPAIR KIT-SERVICE
31PAN RETAINER KIT, SERVICE
325308000039 Frigidaire Refrigerator Screw
33WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
