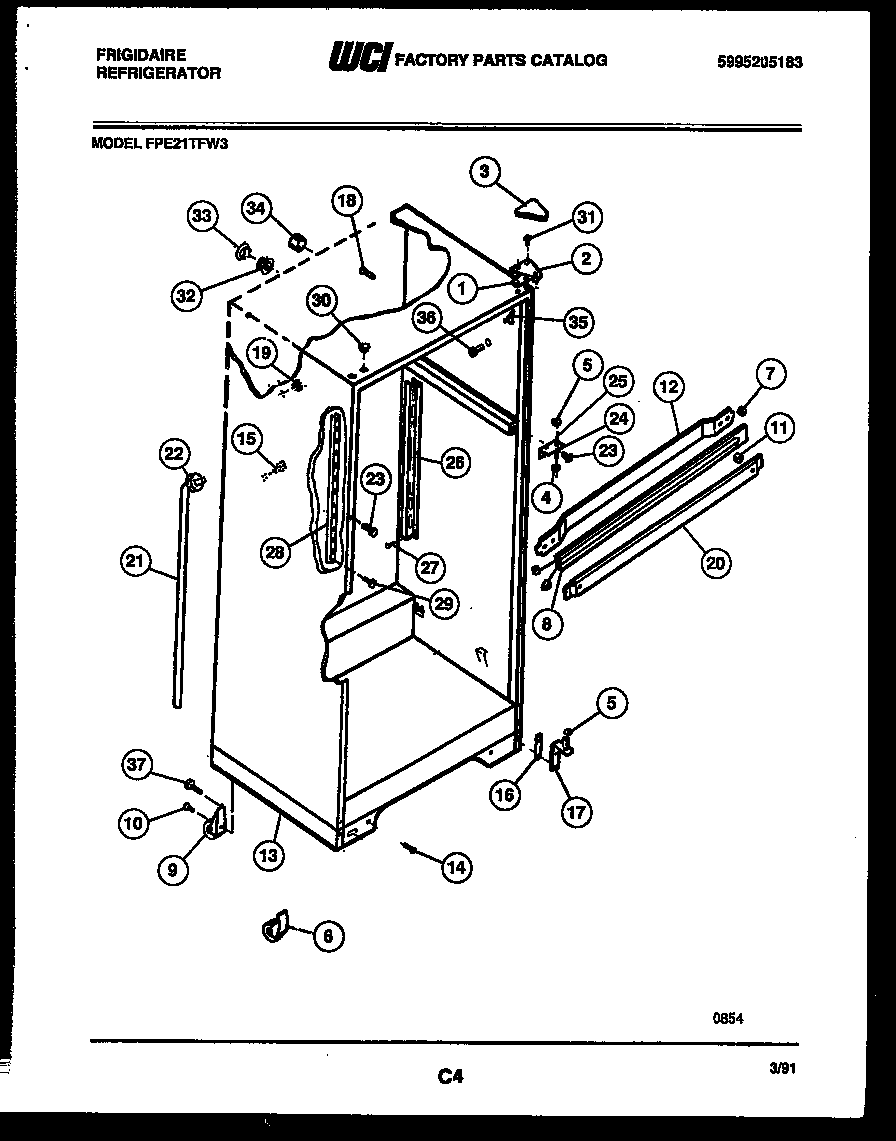

FPE21TFW3 03 – CABINET PARTS

FPE21TFW3 03 – CABINET PARTS

Written by

in

FPE21TFW3 03 – CABINET PARTS

Products

PositionProduct
*42497TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1SHIM – UPPER HINGE
2BRACKET-UPPER HINGE
3COVER-UPPER HINGE, WHITE
4WCI 5308000186
5WASHER, .34 X .62 X .05, NYLON
6WCI 5303212490
7SPACER-MULLION MTG, STEEL
8WCI 5303210351
9WCI 5308009773
10BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
11WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
12WCI 5308010008
13WCI 5303212487
14BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
155304500407 Frigidaire Refrigerator Shelf Mounting Grommet
16WCI 5303212488
17BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
17CTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
17BRACKET-LOWER HINGE, W/ HINGE PIN
17A241710601 Frigidaire Refrigerator Screw
18SUPPORT-COIL COVER
19PLUG, BUTTON, CABINET LINER (NI)
20WCI 5303200366
21WCI 5303210377
22WCI 5303207353
23WCI 5308012258
24BRACKET-CTR HINGE
25WCI 5308000184
26CHANNEL, RH & LH
275304455852 Frigidaire Refrigerator Screw
28WCI 5303015409
29WCI 5308016568
30PLUG-BUTTON, WHITE
32WCI 5303001286
33WCI 5303001287
34TUBE-RUBBER
35TRIM-CABINET CORNER, WHITE
365304509705 Frigidaire Refrigerator Grommet
375304455651 Frigidaire Refrigerator Screw
