FPE21TFW3 04 – SHELVES AND SUPPORTS

FPE21TFW3 04 – SHELVES AND SUPPORTS

Written by

in

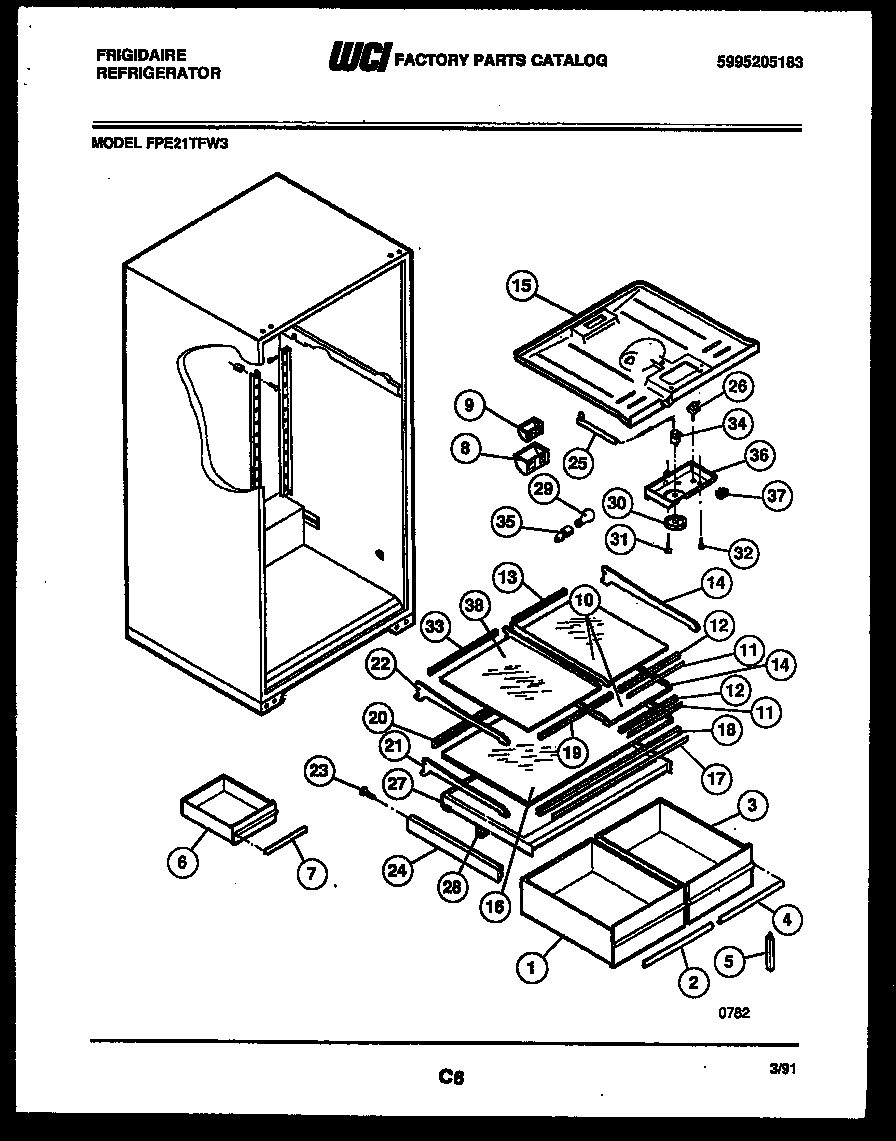

FPE21TFW3 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1PAN, CRISPER, LH
2TRIM-PAN
3PAN, CRISPER, RH
4TRIM-PAN
5SUPPORT, COVER
6WCI 3018987
7WCI 3018986
8WCI 5303001448
9DEFLECTRO, AIR, W/SEAL
9AEXTENSION, AIR DEFLECTOR, WITH INSULATION
10GLIDE TRAY
11WCI 3019036
12WCI 3200610
13WCI 3200611
14WCI 5303200613
15WCI 3019038
16WCI 3200614
17TRIM
18RETAINER-GLASS-FULL SHELF
19ATRIM, MEAT SHELF
19RETAINER-MEAT SHELF
20WCI 5303018749
21WCI 3200616
21ARAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
22WCI 3200617
23WCI 08014528
24HANGER-PAN LH
24AHANGER-PAN RH (NON-ILLUSTRATED)
25WCI 3018891
26215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
27GASKET-CRISPER COVER (NON-ILLUSTRATED)
28WCI 5303019035
28AWCI 3018984
28BWCI 3200389
29316538904 Frigidaire Oven Lamp Light
30KNOB, TEMP CONTROL
315304455649 Frigidaire Refrigerator Screw
32WCI 5303001260
33WCI 3200331
34WCI 5303018894
35218906802 Frigidaire Light Lamp Socket
36CONTROL BOX
37WCI 5303018896
38WCI 3200330
