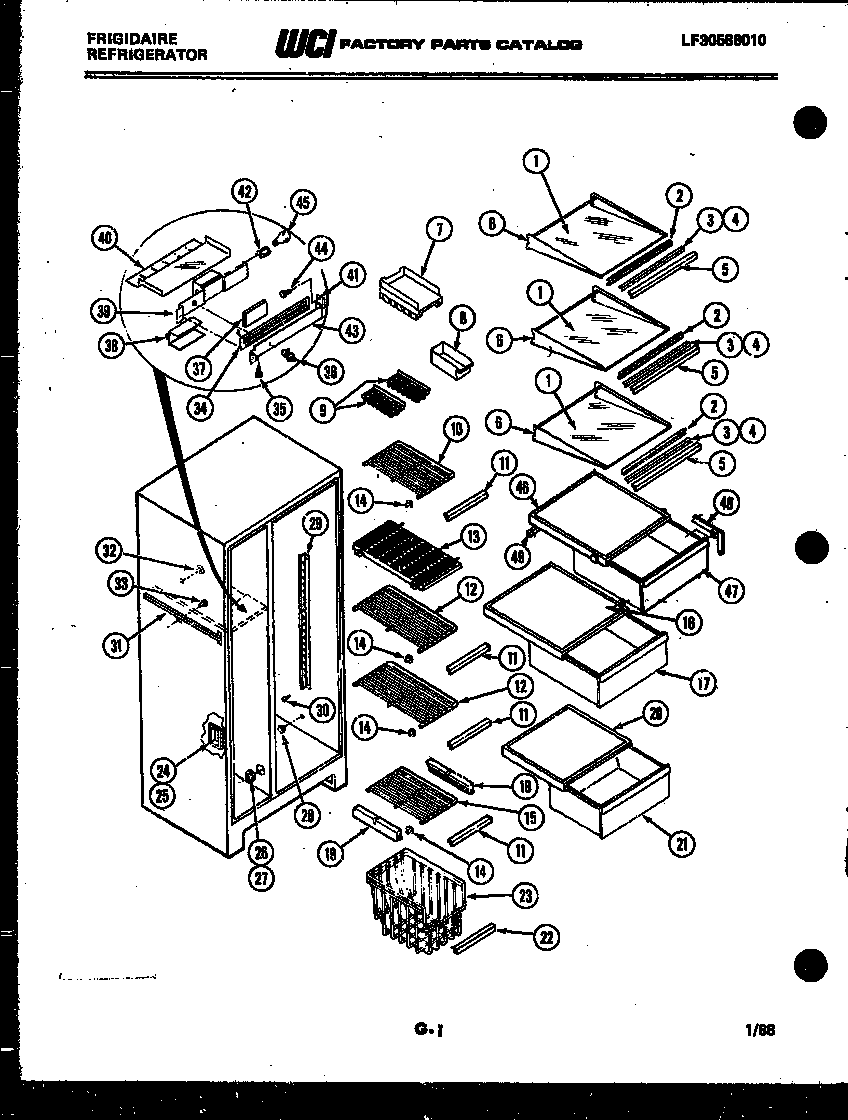

FPE22V3AF1 05 – SHELVES AND SUPPORTS

FPE22V3AF1 05 – SHELVES AND SUPPORTS

Written by

in

FPE22V3AF1 05 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 8009660
2	SEAL-POLY
3	RETAINER-GLASS (3)
4	TRIM-SHELF REAR (3)
5	TRIM-SHELF FRONT (3)
6	WCI 8001028
7	WCI 8009824
8	ICE, CONTAINER
9	ICE CUBE TRAY (2)
11	WCI 8009679
12	WCI 8000907
13	WCI 8001016
14	WCI 8002747
15	WCI 8000908
16	COVER-CRISPER UPPER
17	PAN-CRISPER UPPER
18	WCI 8000818
19	WCI 8000819
20	COVER-CRISPER LOWER
21	PAN-CRISPER LOWER
22	WCI 8009622
23	WCI 8000802
24	WCI 8000808
25	WCI 8000809
26	WCI 8000810
27	WCI 8000811
28	PLUG-REFRIGERATOR LINER (2)
29	WCI 8002744
30	WCI 8000005
31	WCI 8009641
32	WCI 8016571
33	WCI 8000098
34	WCI 8000846
35	WCI 8002794
36	WCI 9918810
37	WCI 8009732
38	WCI 8002795
39	WCI 8002793
40	WCI 8000836
41	WCI 8000832
42	WCI 8002657
43	WCI 8002797
44	SCREW-HINGE/MULLION (4)
45	LIGHT BULB
46	COVER-CRISPER UPPER
47	PAN-CRISPER UPPER
48A	WCI 8001044
48	WCI 8001045
49	WCI 8009648
