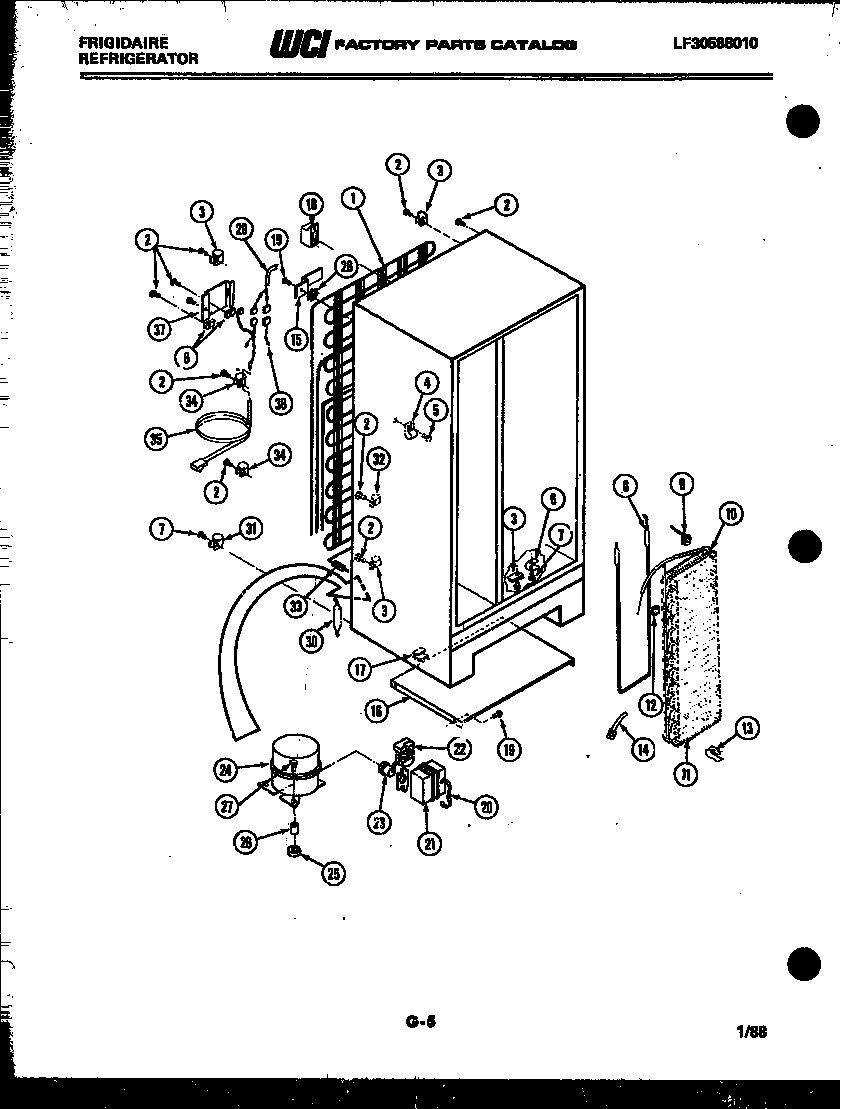

FPE22V3AH1 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPE22V3AH1 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPE22V3AH1 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 8017113
2SCREW-PANEL MOUNTING (56)
3WCI 8000221
4CLAMP
5SCREW (5)
6CLAMP-STRAIN RELIEF (3)
7SCREW (3)
8WCI 8000737
9WCI 8000805
10WCI 8017564
11WCI 8017536
12WCI 8000828
13WCI 8002777
14WCI 8000110
15BRACKET-CONDENSER MOUNTING (4)
16WCI 8017112
17WCI 8000099
18WCI 8002782
19SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
20WCI 8000117
21WCI 8000116
22WCI 8000023
23WCI 8017229
24WCI 8950186
25WCI 8008778
26WCI 8002758
27WCI 8000029
28WCI 8009617
29WCI 8002786
30WCI 8000027
31WCI 8008782
32WCI 8000133
33WCI 8003645
34CLAMP-CABLE (3)
35WCI 8000064
36WCI 8009616
37AWCI 9960005
37WCI 8013644
