FPE22V3AW1 03 – FREEZER DOOR PARTS – Aparts

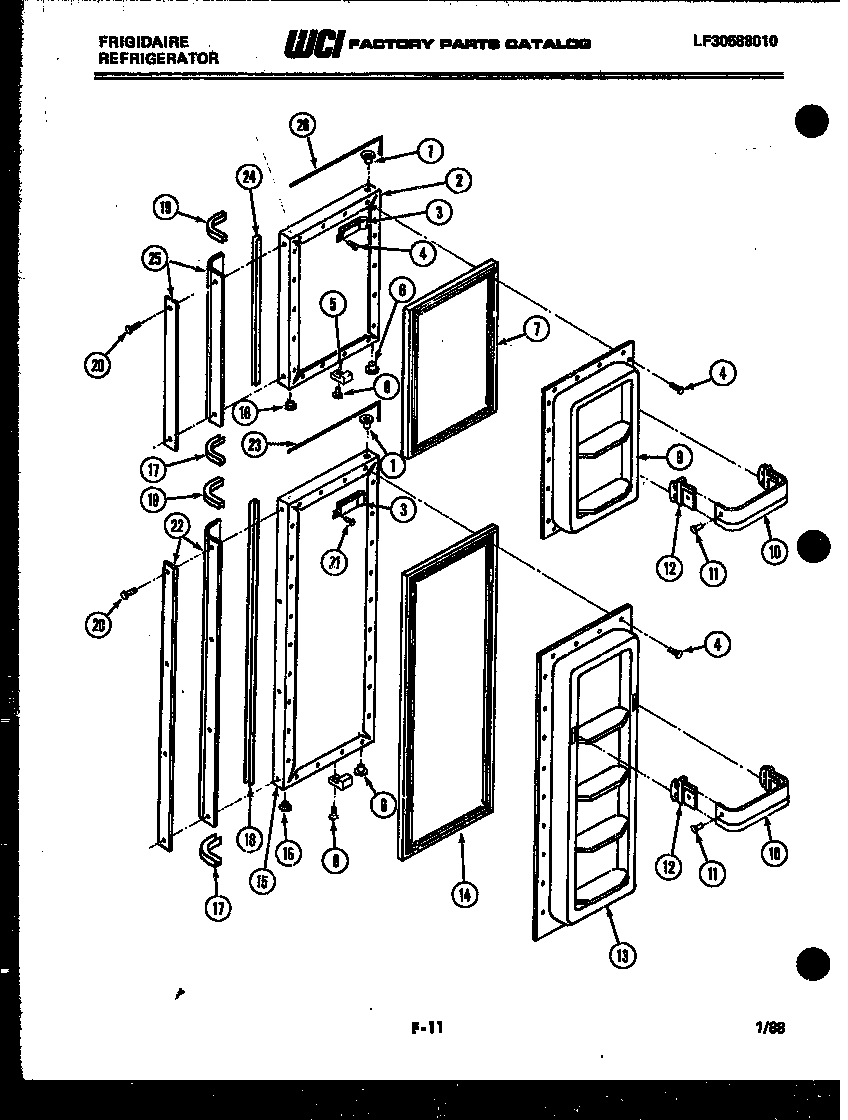

FPE22V3AW1 03 – FREEZER DOOR PARTS

Products

Position	Product
1	WCI 8012008
2	WCI 8009962
3	WCI 8000743
5	WCI 8002802
6	HINGE BEARING (8)
7	WCI 8010249
8	WCI 8000839
9	WCI 8009967
10	WCI 8009716
11	WCI 8002750
12A	WCI 8009971
12	WCI 8009970
13	WCI 8009968
14	WCI 8010250
15	WCI 8009957
16	WCI 8002751
17	END CAP-TOP (2)
18	WCI 8010231
19	END CAP-BOTTOM (2)
20	SCREW-HANDLE MOUNTING (4)
21	SCREW-PANEL MOUNTING (56)
22	WCI 8009955
23	WCI 8012827
24	WCI 8010230
25	WCI 8009956
26	WCI 8012826
