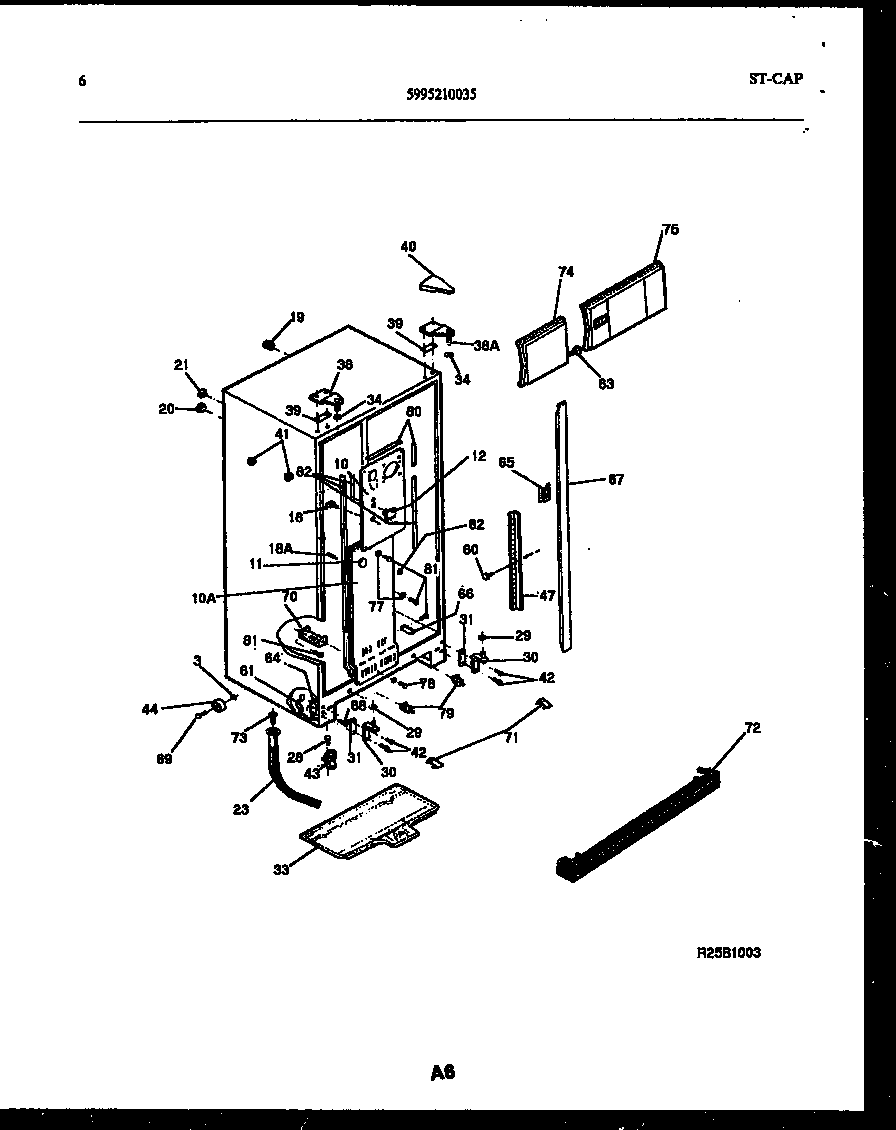

FPE22VPW0 04 – CABINET PARTS

FPE22VPW0 04 – CABINET PARTS

Written by

in

FPE22VPW0 04 – CABINET PARTS

Products

PositionProduct
*55404SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
3Nut,push-on
10ACOVER-COIL LOWER
10WCI 5303006543
10ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
12PLUG-DECORATIVE, ICE MAKER HOLE
18SUPPORT-COIL COVER
18AWCI 5303001250
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
23WCI 5303209723
28SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
29WASHER, .28 X .62 X .19, NYLON
30HINGE-BOTTOM
31SHIM-BTM HINGE (3)
33WCI 5303001026
34WCI 5308000186
38AWCI 5308012934
38BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38WCI 5303001062
38A241710601 Frigidaire Refrigerator Screw
39SHIM – UPPER HINGE
40COVER-UPPER HINGE, ALMOND
415304509705 Frigidaire Refrigerator Grommet
42SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
43ROLLER-FRONT (2)
44WCI 5303001030
47CHANNEL-SHELF MTG (2)
605304455852 Frigidaire Refrigerator Screw
61WCI 5300077210
62WCI 5303001231
63WCI 5303001213
64WCI 5303001273
65AWCI 5300169100
65WCI 5303001281
66DAMPER, MEAT KEEPER
67WCI 5303916448
68WCI 5308000013
69WCI 5308000266
70WCI 5308000738
71CLIP, GRILLE (2)
72WCI 3200661
73WCI 5308000853
74LIGHT SHIELD-FREEZER
75SHIELD-LIGHT, REFRIGERATOR
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
78AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
79ACLIP-CABLE
795303289051 Frigidaire Refrigerator Light Switch
80WCI 5303001219
825304455650 Frigidaire Refrigerator Screw
55406PLUG, BUTTON, CABINET LINER (NI)
55406CLIP-WIRING HARNESS
