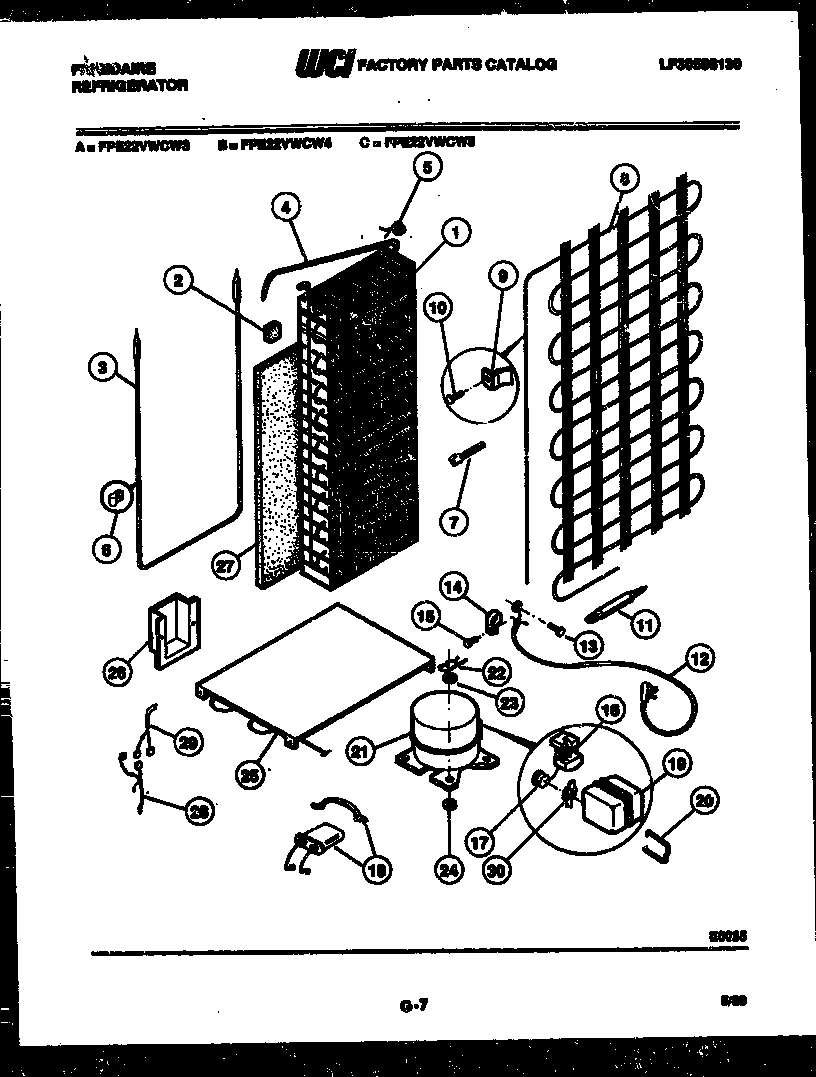

FPE22VWCA3 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*11165WCI 9960005
1WCI 8017538
2WCI 8000828
3WCI 8010373
4WCI 8017565
5WCI 8000805
6WCI 8002777
7WCI 8000110
8WCI 8017113
9WCI 8000296
10SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
11WCI 8000027
12WCI 8000064
14CLAMP-CABLE (3)
15SCREW-TUBE MOUNTING (2)
16WCI 8017226
17WCI 8017526
18WCI 8017231
18WCI 3001650
19WCI 8000116
20WCI 8000117
21COMPRESSOR W/ ELEC
22CLIP (4)
23WASHER (4)
24WCI 8008778
25WCI 8017112
25CSCREW (3)
25AWCI 8002780
25AWCI 8002782
26WCI 8013644
27WCI 8009640
28WCI 8009616
29WCI 8015564
30CLIP-OVERLOAD
