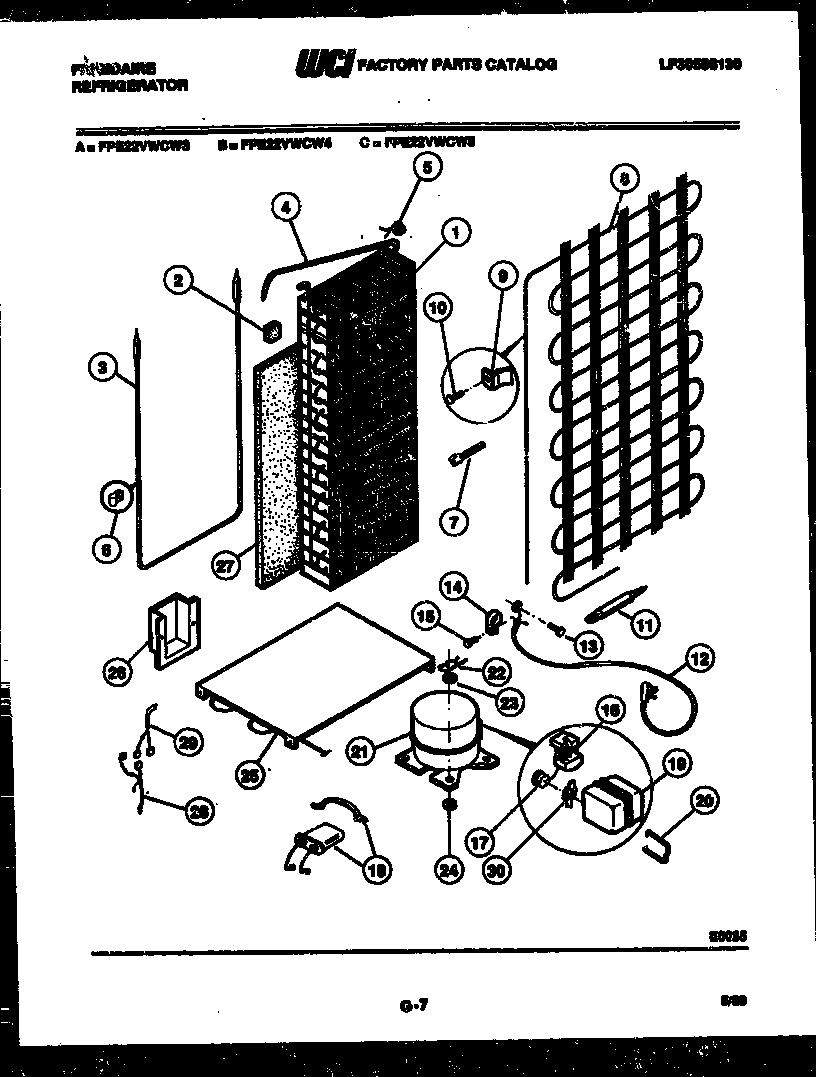

FPE22VWCH4 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*11165	WCI 9960005
1	WCI 8017566
2	WCI 8000828
3	WCI 8017562
4	WCI 8017565
5	WCI 8017563
6	WCI 8002777
7	WCI 8000110
8	WCI 8017113
9	WCI 8000296
10	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
11	WCI 8000027
12	WCI 8000064
14	CLAMP-CABLE (3)
15	SCREW-TUBE MOUNTING (2)
16	WCI 8017226
17	WCI 8017526
18	WCI 8017231
18	WCI 3001650
19	WCI 8000116
20	WCI 8000117
21	COMPRESSOR W/ ELEC
22	CLIP (4)
23	WASHER (4)
24	WCI 8008778
25	WCI 8017112
25C	SCREW (3)
25A	WCI 8002780
25A	WCI 8002782
26	WCI 8013644
27	WCI 8009640
28	WCI 8009616
29	WIRING HARNESS-MAIN CONTROL
30	CLIP-OVERLOAD
