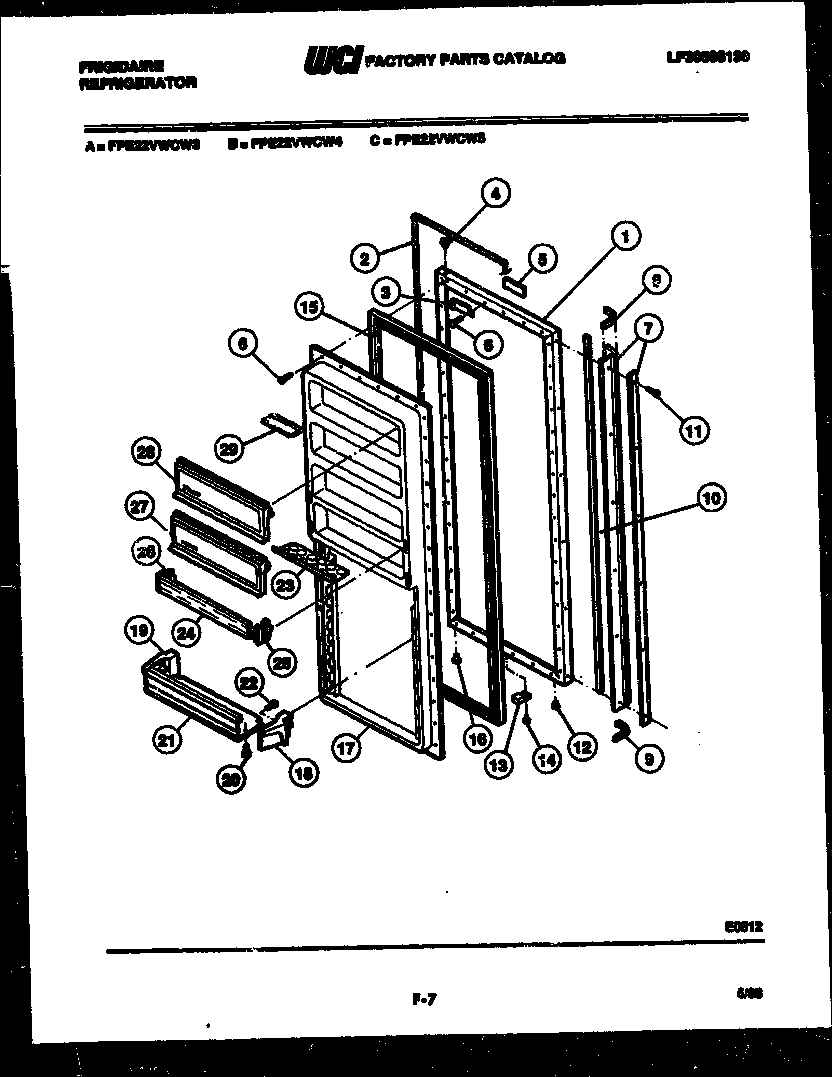

FPE22VWCL3 03 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	WCI 8009954
2	WCI 8012824
3	WCI 8000743
4	WCI 8012008
5	WCI 8009926
7	WCI 8009947
8	END CAP-TOP (2)
9	END CAP-BOTTOM (2)
10	WCI 8010229
11	WCI 8000287
12	WCI 8002751
13	WCI 8000790
14	SCREW-PANEL MOUNTING (56)
15	GASKET-REFR
16	HINGE BEARING (8)
17	WCI 8009949
18	WCI 8000753
19	WCI 8000754
20	WCI 8002773
21	WCI 8010023
22	WCI 8000812
23	EGG TRAY
24	RACK-DOOR (3)
25	SUPPORT-RACK RS
26	SUPPORT-RACK LS (NON-ILLUSTRATED)
27	WCI 8009721
28	WCI 8009720
29	WCI 8009664
