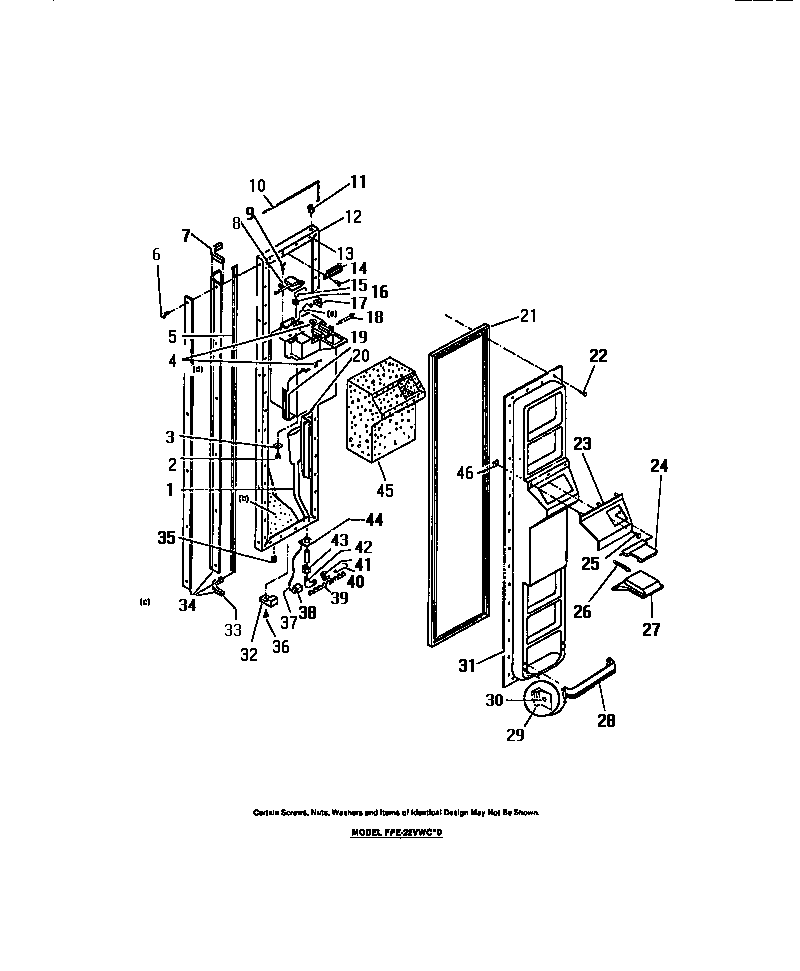

FPE22VWCW0 06 – FREEZER COMPARTMENT DOORS

FPE22VWCW0 06 – FREEZER COMPARTMENT DOORS

Written by

in

FPE22VWCW0 06 – FREEZER COMPARTMENT DOORS

Products

Position	Product
1	WCI 8010299
2	WCI 8010330
3	WCI 8010325
5	WCI 8010229
6	SCREW-HANDLE MOUNTING (4)
7	END CAP-BOTTOM (2)
8	WCI 8010315
9	WCI 8014528
10	TRIM-FREEZER DOOR
11	WCI 8012008
12	WCI 8015601
13	WCI 8000743
16	WCI 2832218
17	WCI 8010324
18	WCI 8010660
19	WCI 8015588
20	WCI 8010301
21	WCI 8010248
22	SCREW-PANEL MOUNTING (56)
23	TRIM COVER-DOOR PNL
24	WCI 8010295
25	WCI 8000098
26	WCI 8010300
27	WCI 8010659
28	DOOR RACK (5)
29	WCI 8009970
29A	WCI 8009971
30	WCI 8002750
31	PANEL-INNER DOOR
32	WCI 8000790
33	END CAP-TOP (2)
34	WCI 8009947
35	WCI 8002751
36	WCI 6588927
37	WCI 8015604
38	WCI 8010302
39	WCI 8010374
40	WCI 8010366
42	WCI 8010289
43	NUT 7/16-20 NYLON
44	WCI 8010308
45	WCI 8015556
46	WCI 8000001
