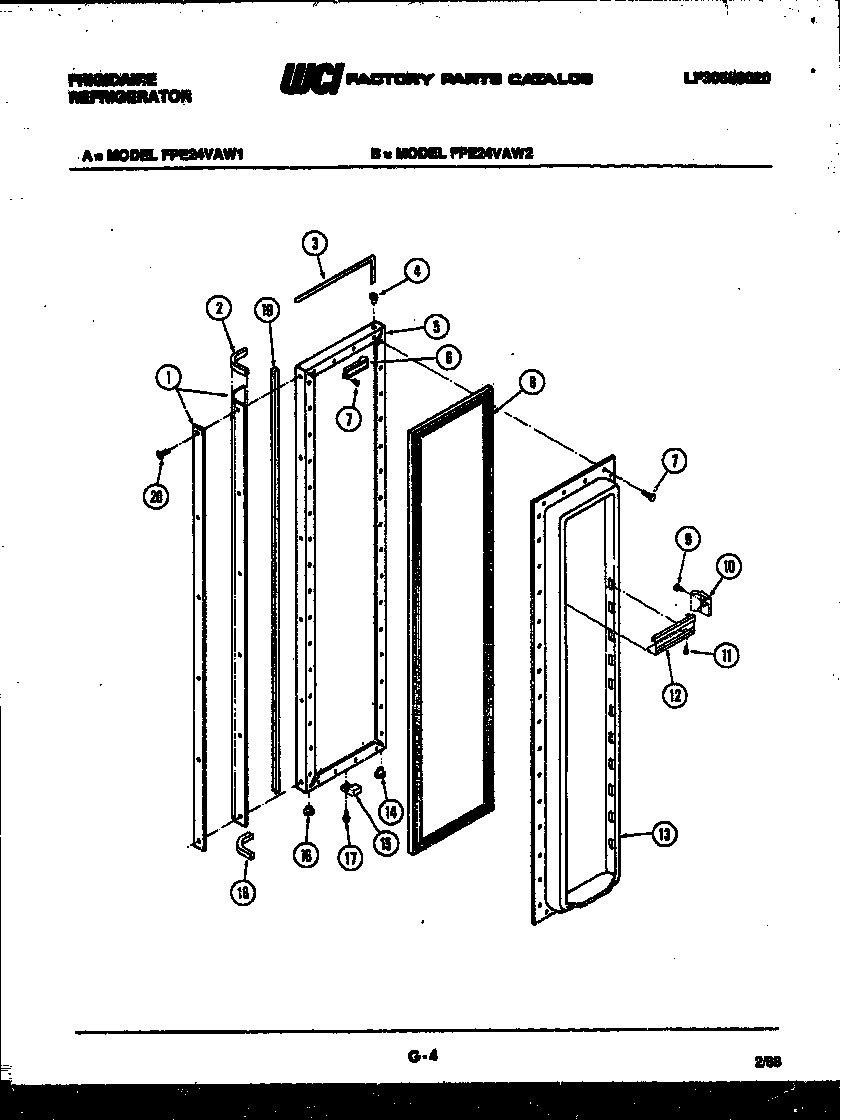

FPE24VAH1 03 – FREEZER DOOR PARTS – Aparts

FPE24VAH1 03 – FREEZER DOOR PARTS

Products

Position	Product
1	WCI 8009947
2	END CAP-TOP (2)
3	WCI 8012825
4	WCI 8012008
5	WCI 8009982
6	WCI 8000743
7	SCREW-PANEL MOUNTING (56)
8	WCI 8010260
9	WCI 8000812
10A	WCI 8000754
10	WCI 8000753
11	WCI 8002773
12	WCI 8009723
13	WCI 8001038
14	HINGE BEARING (8)
15	WCI 8000790
16	WCI 8002751
17	WCI 8000839
18	END CAP-BOTTOM (2)
19	WCI 8010229
20	WCI 8000287
