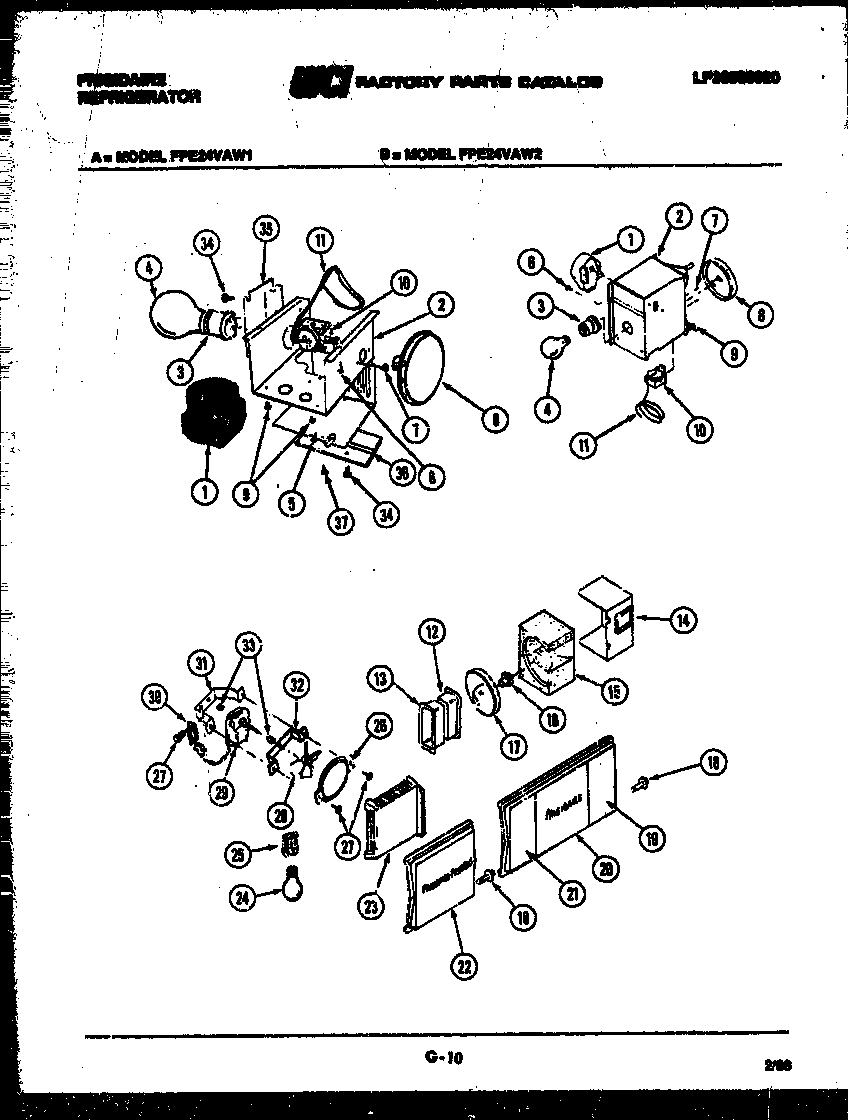

FPE24VAW1 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
1	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
2	WCI 8002727
3	WCI 8000129
4	WCI 8000801
5	WCI 8002731
6	WCI 8002728
7	SCREW-CONTROL MOUNTING (2) (NON-ILLUSTRATED)
8	WCI 8010380
9	WCI 8000008
10	WCI 8017445
11	WCI 8003637
12	WCI 8000811
13	WCI 8000810
14	WCI 8000770
15	WCI 8000771
16	CLIP-RIVET
18	WCI 8000097
19	WCI 8009987
20	SHIELD
21	WCI 8009988
22	WCI 8009639
23	WCI 8000777
24	LIGHT BULB
25	WCI 8000815
26	WCI 8000124
27	SCREW (5)
28	WCI 8000010
29	WCI 8000036
30	WCI 8000107
31	WCI 8000042
32	WCI 8000043
33	WCI 8000032
34	WCI 8002729
35	WCI 8002730
36	WCI 8002733
37	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
