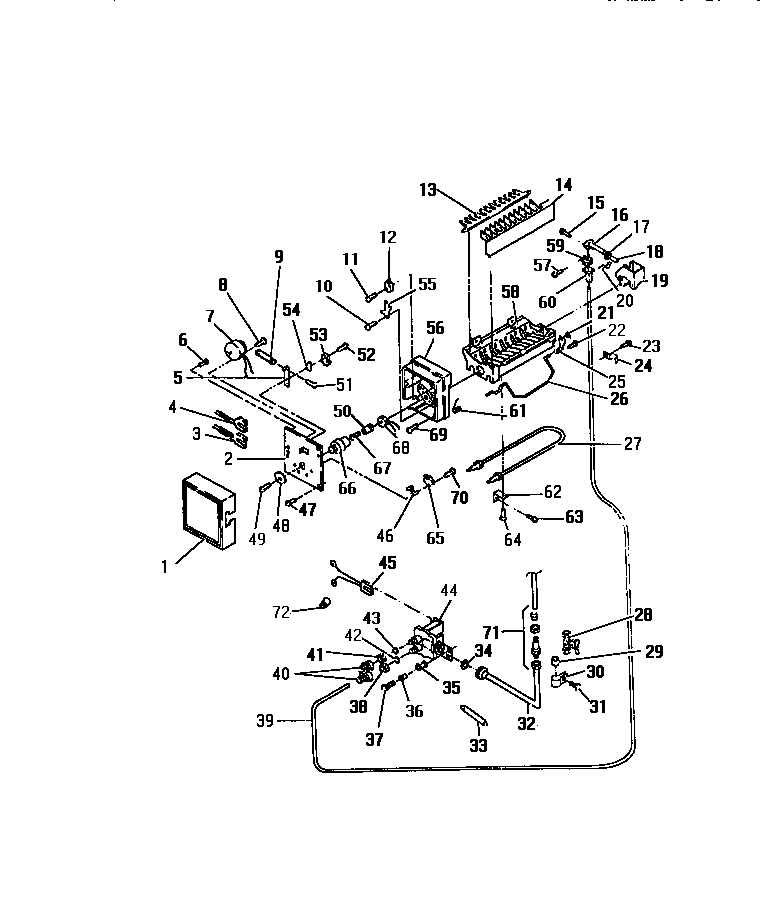

FPE26VWCL0 12 – ICE MAKER

FPE26VWCL0 12 – ICE MAKER

Written by

in

FPE26VWCL0 12 – ICE MAKER

Products

PositionProduct
1WCI 8000214
2WCI 8001239
4HARNESS WATER
5PLATE-VALVE SW.
7WCI 8001244
8WCI 8001156
9WCI 8001251
10WCI 8001255
11SCREW 4-24 X 3/4
13WCI 8001253
14STRIPPER-ICE
15WCI 8001152
16WCI 8001459
17WCI 8014321
18WCI 8001435
19BEARING & INLET
20WCI 8002324
21WCI 8001260
24WCI 8001272
25WCI 8001259
26ARM-SHUT OFF
27WCI 8001243
28WCI 8001214
29WCI 8001263
30WCI 8001194
31SCREW
32WCI 8001268
33WCI 8001401
34WCI 8001143
35WCI 8001195
36WCI 8001197
37WCI 8000593
38WCI 8001165
39WCI 8001269
41WCI 8001166
42WCI 8001167
43WCI 8010698
44WCI 8001258
45WCI 8001257
46SPACER-HOLD. SW.
47SCREW (3)
48WCI 8001248
49WCI 8001182
50WCI 8001236
52SCREW 4-40 X 3/4 (2)
54WCI 8001241
55ARM-LEVER
56WCI 8001235
57WCI 8004283
58WCI 8001254
59WCI 8001170
60WCI 8001288
61SPRING-SHUT OFF
62WCI 8001246
63WCI 8010695
64SCREW
65SWITCH-SHUT OFF
66WCI 8001247
68WCI 8001250
69SCREW 8-32 X 1
70WCI 8001148
71WCI 8001198
