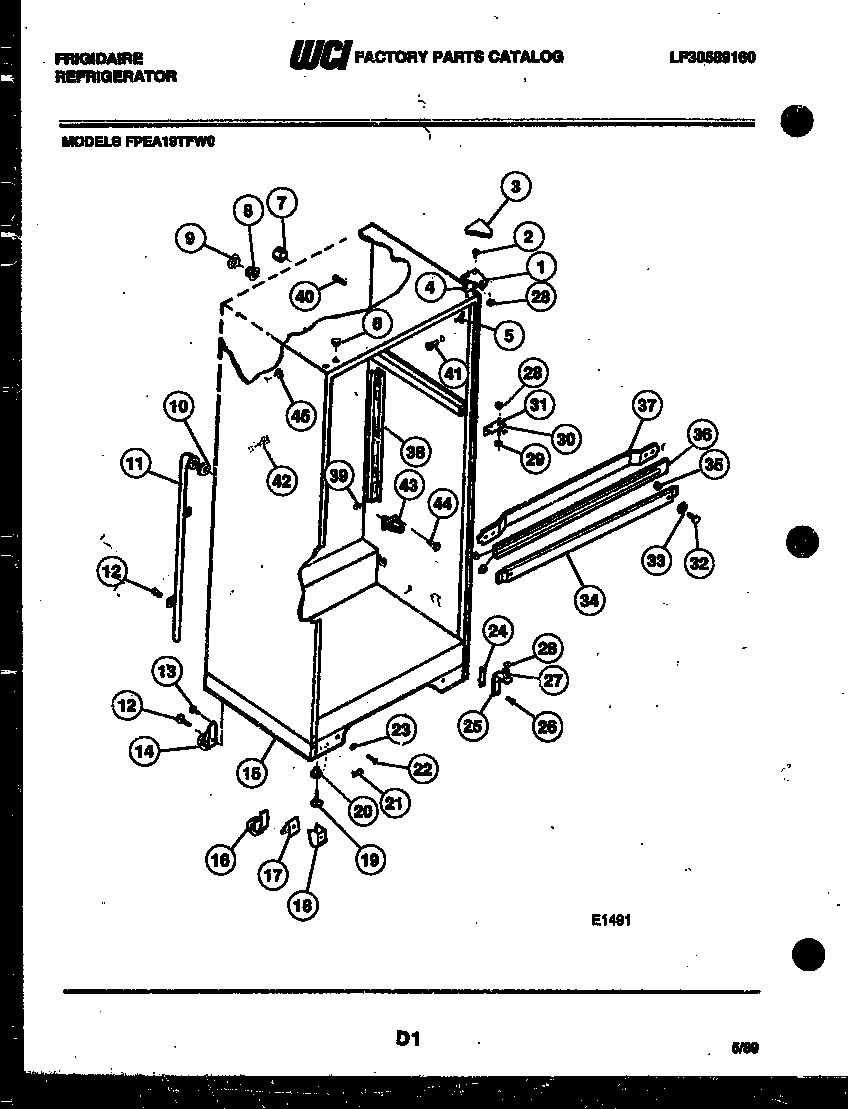

FPEA19TFW0 03 – CABINET PARTS

Products

Position	Product
1	WCI 08012843
2	241710601 Frigidaire Refrigerator Screw
3	WCI 08012820
4	WCI 08012829
5	WCI 3202336
6	WCI 08007099
7	TUBE
8	FERRULE
9	FERRULE
10	RING-SEAL
11	WCI 08010012
12	5304455651 Frigidaire Refrigerator Screw
13	WCI 08009762
14	WCI 08009773
15	WCI 08010092
16	WCI 08009760
17	WCI 08009790
18	WCI 08013678
19	WCI 08003583
20	WCI 08003584
21	WCI 08003585
22	WCI 08009761
23	WCI 08011326
24	SHIM
24A	TAPPING PLATE (2)
25	HINGE-BRACKET-BOTTOM
27	5303001321 Frigidaire Refrigerator Lower Hinge Pin
28	WCI 08000007
29	WCI 08000100
30	WCI 08000757
31	WCI 08000184
32	WCI 08012258
33	WASHER-MULLION (4)
34	WCI 3200366
35	SPACER (NON-ILLUSTRATED)
36	WCI 3018916
37	WCI 08010008
38	WCI 08000302
39	5304455852 Frigidaire Refrigerator Screw
40	WCI 08000097
41	5304509705 Frigidaire Refrigerator Grommet
42	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43	WCI 08000056
44	PIN-PUSH (2)
45	WCI 08016571
