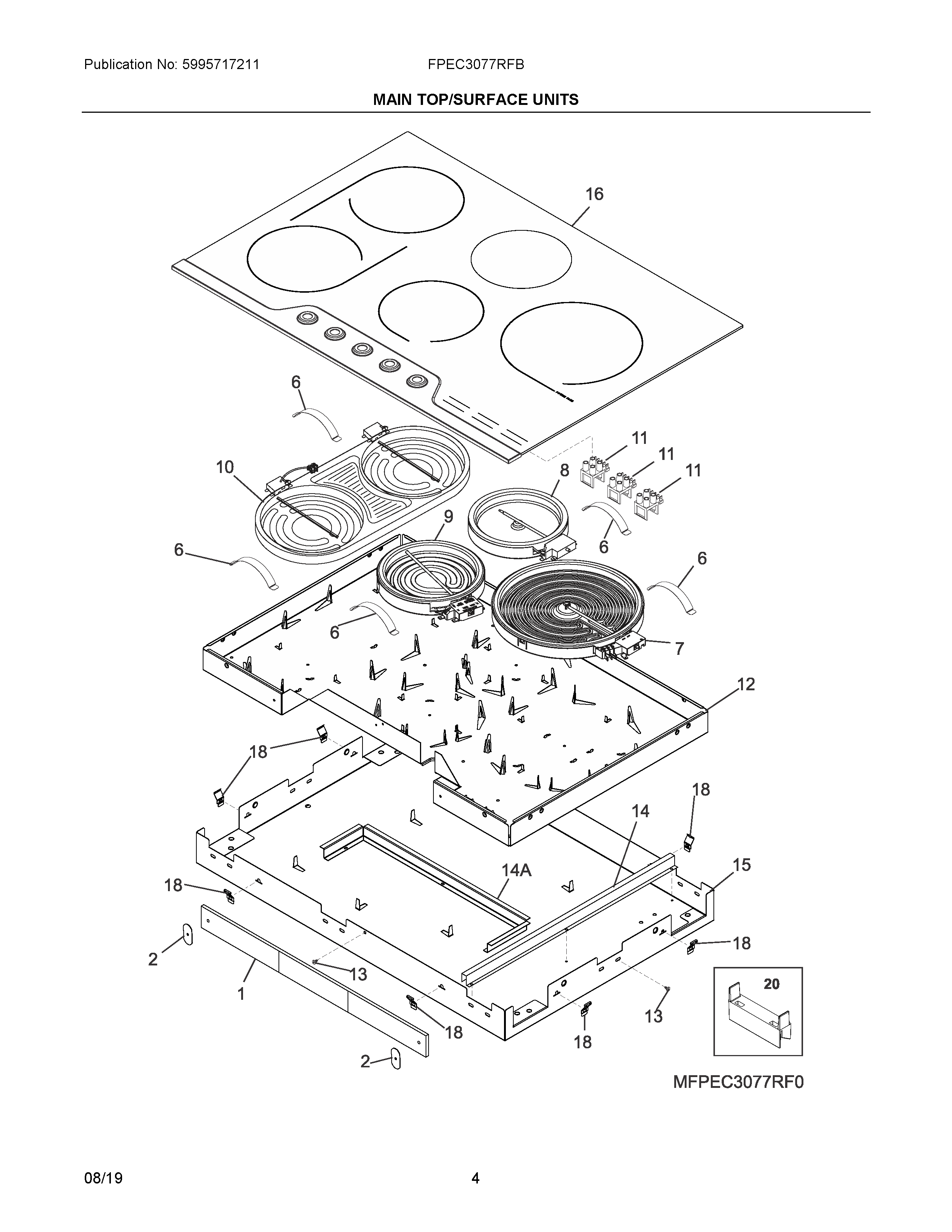

FPEC3077RFB 03 – MAIN TOP/SURFACE UNITSadmin2025-04-26T08:38:13+00:00FPEC3077RFB 03 – MAIN TOP/SURFACE UNITS
Products
| Position | Product |
|---|
| NI | 5304403558 Frigidaire Oven Screw |
| NI | WCI 5304522483 |
| NI | 387627700 Frigidaire Oven Bracket |
| NI | 318121902 Frigidaire Oven Bracket Assembly |
| NIA | 305351200 Frigidaire Rivet |
| NI | 305309606 Frigidaire Oven Screw |
| NI | 202855101 Frigidaire Holder |
| NI | WCI 5304522484 |
| NI | SCREW, 8 X 5/8, SPARK MODULE |
| NIA | 5303307980 Frigidaire Oven Screw |
| NI | 305452800 Frigidaire Screw |
| 1 | INSULATION ASSEMBLY, W/FOIL |
| 2 | PLATE, INSULATION MTG. |
| 6 | 387372900 Frigidaire SPRING |
| 7 | 316530001 Frigidaire Oven Element |
| 8 | A02843501 Frigidaire Element |
| 9 | 305440414 Frigidaire Oven Heating Element |
| 10 | 318258201 Frigidaire P-1 Element |
| 11 | 387812004 Frigidaire Light Assembly |
| 12 | BOX, INNER |
| 13 | 330447900 Frigidaire Oven Screw |
| 14A | BRACKET, SUPPORT, INNER BOX |
| 14 | 387683500 Frigidaire Support |
| 15 | BOX, BURNER, OUTER |
| 16 | MAINTOP ASSEMBLY, GLASS, BLACK, W/TRIM |
| 18 | 387174602 Frigidaire Oven Bracket |
| 20 | 387627600 Frigidaire Spacer |
