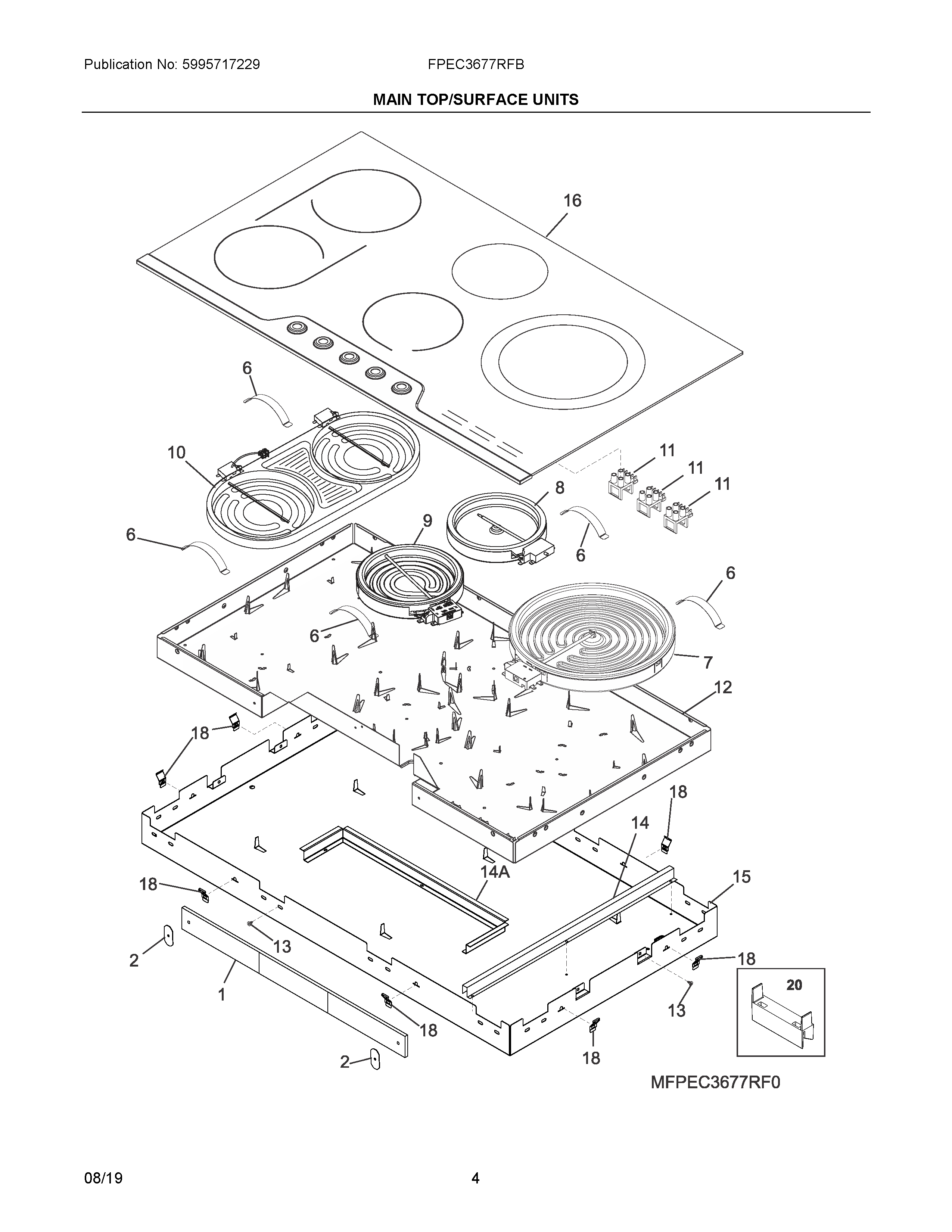

FPEC3677RFB 03 – MAIN TOP/SURFACE UNITS

Products

Position	Product
NI	5304403558 Frigidaire Oven Screw
NI	WCI 5304522486
NI	387627700 Frigidaire Oven Bracket
NI	318121902 Frigidaire Oven Bracket Assembly
NIA	305351200 Frigidaire Rivet
NI	305309606 Frigidaire Oven Screw
NI	202855101 Frigidaire Holder
NI	5304522485 Frigidaire Harness
NI	SCREW, 8 X 5/8, SPARK MODULE
NIA	5303307980 Frigidaire Oven Screw
NI	305452800 Frigidaire Screw
1	INSULATION ASSEMBLY, W/FOIL
2	PLATE, INSULATION MTG.
6	387372900 Frigidaire SPRING
7	316282101 Frigidaire Oven Element
8	A02843501 Frigidaire Element
9	305440414 Frigidaire Oven Heating Element
10	318258201 Frigidaire P-1 Element
11	387812004 Frigidaire Light Assembly
12	WCI 5304501843
13	330447900 Frigidaire Oven Screw
14	387683500 Frigidaire Support
14A	BRACKET, SUPPORT, INNER BOX
15	WCI 387811901
16	5304501842 Frigidaire Assembly-Maintop
18	387174602 Frigidaire Oven Bracket
20	387627600 Frigidaire Spacer
