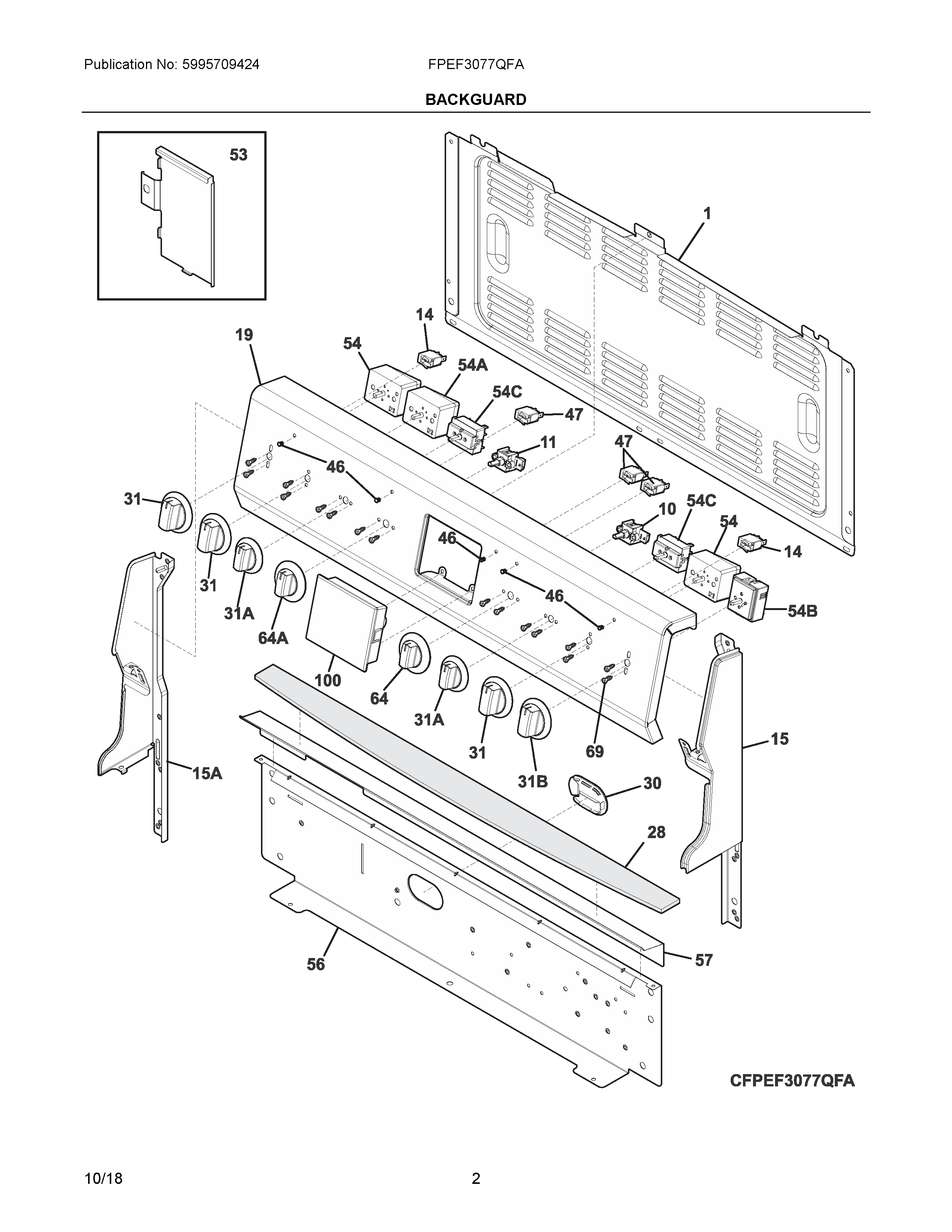

FPEF3077QFA 02 – BACKGUARD

FPEF3077QFA 02 – BACKGUARD

Written by

in

FPEF3077QFA 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI5304498836 Frigidaire Oven Harness
NI5308014215 Frigidaire Oven Screw
1316281802 Frigidaire Oven Shield
105304494433 Frigidaire Potentiometer
115304493649 Frigidaire Oven Range Wall Potentiometer
14316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15A5304493646 Frigidaire Oven Cap
155304493644 Frigidaire Oven Cap
195304496879 Frigidaire Oven Panel
28316528700 Frigidaire Insulation Assembly
30316577600 Frigidaire Plug
31A5304494415 Frigidaire Knob Assembly
31B5304494414 Frigidaire Knob Assembly
315304494413 Frigidaire Knob
46316557300 Frigidaire Range Indicator Light Lens
47LIGHT/LAMP, INDICATOR, BLUE
53SHIELD, FLUE, INNER
54316436000 Frigidaire Oven Range Surface Element Switch
54A316436001 Frigidaire Oven Range Infinite Burner Switch
54B316238201 Frigidaire Oven Switch
54C316471601 Frigidaire Switch-Infinite
56316234045 Frigidaire Oven Shield
57SHIELD, STEAM
645304494416 Frigidaire Knob
64AKNOB, POT MODE
695303288565 Frigidaire Screw
100808751525 Frigidaire Control Assembly
