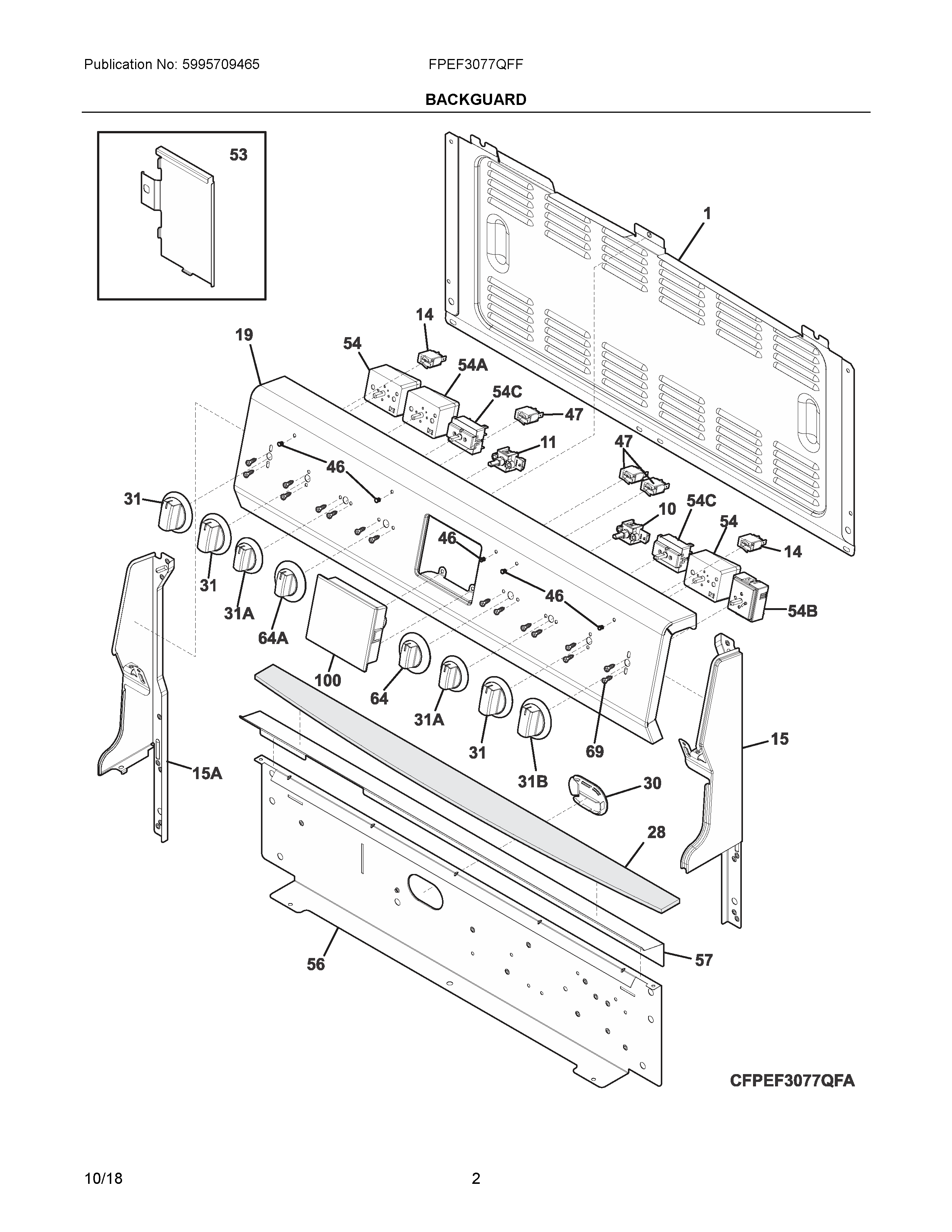

FPEF3077QFF 02 – BACKGUARD

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	5304505678 Frigidaire Oven Harness Assembly
NI	5308014215 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
1	316281802 Frigidaire Oven Shield
10	5304494433 Frigidaire Potentiometer
11	5304493649 Frigidaire Oven Range Wall Potentiometer
14	316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15A	5304493646 Frigidaire Oven Cap
15	5304493644 Frigidaire Oven Cap
19	5304496879 Frigidaire Oven Panel
28	316528700 Frigidaire Insulation Assembly
30	316577600 Frigidaire Plug
31	5304494413 Frigidaire Knob
31B	5304494414 Frigidaire Knob Assembly
31A	5304494415 Frigidaire Knob Assembly
46	316557300 Frigidaire Range Indicator Light Lens
47	316022508 Frigidaire Light Assembly
53	SHIELD, FLUE, INNER
54C	316471601 Frigidaire Switch-Infinite
54	316436000 Frigidaire Oven Range Surface Element Switch
54B	316238201 Frigidaire Oven Switch
54A	316436001 Frigidaire Oven Range Infinite Burner Switch
56	316234045 Frigidaire Oven Shield
57	SHIELD, STEAM
64	5304494416 Frigidaire Knob
64A	KNOB, POT MODE
69	5303288565 Frigidaire Screw
100	808751525 Frigidaire Control Assembly
