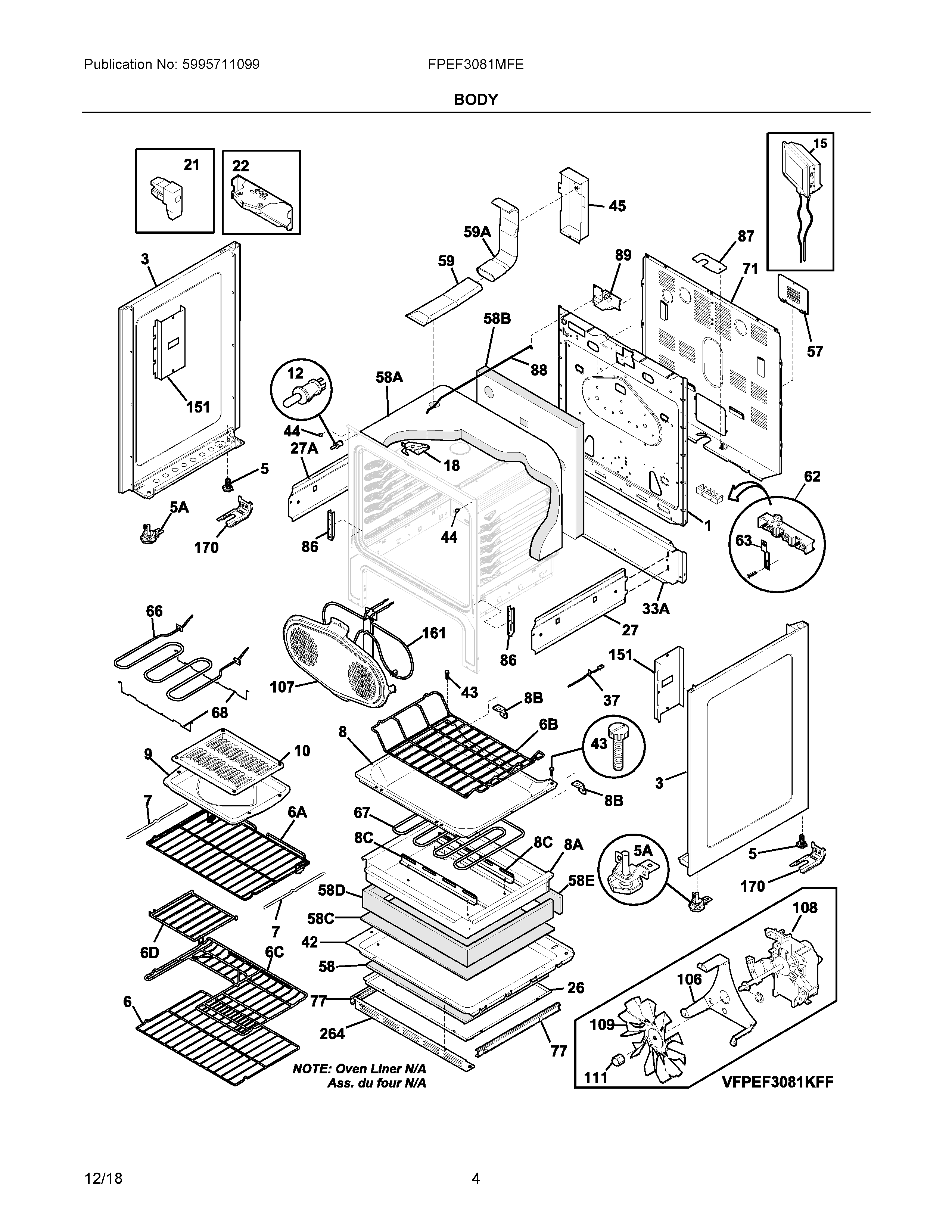

FPEF3081MFE 03 – BODY

FPEF3081MFE 03 – BODY

Written by

in

FPEF3081MFE 03 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304516183 Frigidaire Harness
NI316247300 Frigidaire Oven Catalyst
NI316418901 Frigidaire Oven Screw
NIA316418900 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
NI316279600 Frigidaire Screw
NIA316001017 Frigidaire Screw
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NIB316116000 Frigidaire Screw
NIWCI 316565600
NI316089500 Frigidaire Oven Screw
NIC316542203 Frigidaire Insulator
NI316021132 Frigidaire Screw
NI5303289910 Frigidaire Oven Screw
NI5304517285 Frigidaire Assembly Harness
NI316506259 Frigidaire Wiring Harness
1WCI 316502006
3316400144 Frigidaire Panel
3A316400145 Frigidaire Panel Assembly
5A5304509869 Frigidaire Oven Leveling Leg Assembly
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
6CWCI 316425600
6DWCI 316419400
6BWCI 316575600
6316496201 Frigidaire Oven Rack
6A316577800 Frigidaire Oven Rack
7316546300 Frigidaire Coupler Link Arm
8C316505801 Frigidaire Oven Support
8WCI 316549601
8A316563501 Frigidaire DSP BASE
8B316563400 Frigidaire Oven Bracket
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12316445500 Frigidaire Oven Switch
155304523863 Frigidaire Lamp Assembly
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
22316286300 Frigidaire Bodyside Bracket
26316563200 Frigidaire DSP SHIELD
27WCI 316572300
27AWCI 316572301
33AWCI 316402100
37316490000 Frigidaire Oven Range Temperature Sensor
42316564301 Frigidaire Oven Shield
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
45316234100 Frigidaire Oven Shield
57316283600 Frigidaire Oven Cover
58CWCI 316565400
58E316565300 Frigidaire INSULATION
58BWCI 316406504
58316565500 Frigidaire INSULATION
58A316406604 Frigidaire Insulation
58D316565200 Frigidaire INSULATION
59A316208304 Frigidaire Oven Tube
59316208401 Frigidaire Oven Vent Tube
625303935271 Frigidaire Oven Terminal Block
635304536404 Frigidaire Strap
66316430900 Frigidaire Oven Broil Element
67316563600 Frigidaire Oven Element
68316429100 Frigidaire Oven Support Bracket
71316283204 Frigidaire Oven Shield
77316456700 Frigidaire Oven Glide Assembly
86316441300 Frigidaire Receptacle
87316081200 Frigidaire Oven Bracket
88316203500 Frigidaire Oven Rod
89MOTOR
106316404100 Frigidaire Oven Bracket
107WCI 316504603
108316256100 Frigidaire Oven Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
151316404601 Frigidaire Oven Shield
161316506100 Frigidaire Oven Element
264316570901 Frigidaire DSP Shield
