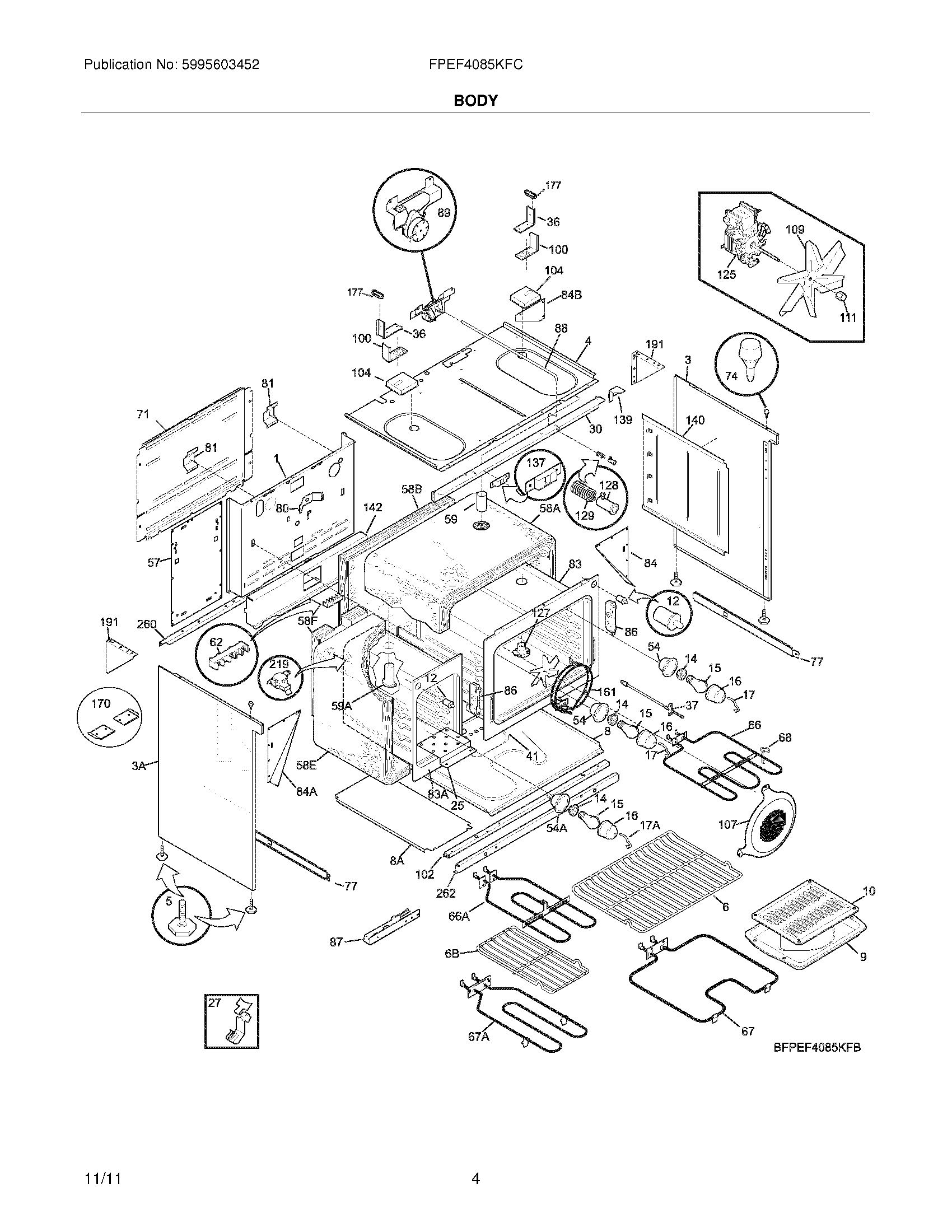

FPEF4085KFC 05 – BODY

FPEF4085KFC 05 – BODY

Written by

in

FPEF4085KFC 05 – BODY

Products

Position	Product
NI	5303323277 Frigidaire Oven Screw
NI	5303211311 Frigidaire Refrigerator Screw
NI	3201861 Frigidaire Screw
NI	WCI 318232351
NI	318264200 Frigidaire Oven Plate
NI	5303323129 Frigidaire Oven Screw
NI	WCI 318572725
NI	WCI 318370377
NI	WCI 5303323133
NI	318235301 Frigidaire Assembly Connector
NI	316205500 Frigidaire Oven Nut
NI	5304480396 Frigidaire Screw
NI	08002868 Frigidaire 0 Screw Assembly
NI	WCI 318249407
NI	WCI 5303311528
NI	5303323139 Frigidaire Oven Screw
1	WCI 318066415
3	WCI 318066134
3A	WCI 318066135
4	WCI 318073714
5	318175503 Frigidaire Screw with Bolt
6	318345205 Frigidaire Oven Rack
6B	WCI 318345206
8	Panel,heat shield ,oven bottom
8A	WCI 318071900
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
12	808136601 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
17A	RETAINER-LENS
25	WCI 318179113
27	5303284616 Frigidaire Range Bulb Clip Thermostat
30	WCI 318023921
36	WCI 318182111
37	SENSOR
54	WCI 318222400
54A	WCI 5303271606
57	WCI 318055701
58A	WCI 318285017
58B	WCI 318285018
58F	WCI 318285006
58E	WCI 318285005
59	WCI 318549803
59A	WCI 318549805
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66A	WCI 318255700
66	318255605 Frigidaire Oven Broil Element Range
67	BAKE ELEMENT
67A	318255201 Frigidaire Oven Small Bake Element
68	5304403015 Frigidaire Oven Support
71	WCI 5303310515
74	WCI 318147420
76	WCI 318056010
77	WCI 318144211
80	WCI 5303320846
81	WCI 318192400
83A	WCI 318089200
83	WCI 318089617
84B	WCI 318055902
84	WCI 318251802
84A	WCI 318251803
86	318561100 Frigidaire Receptacle
87	WCI 318111800
88	WCI 5303311160
89	318095965 Frigidaire Oven Motor
100	WCI 318182011
102	WCI 318111901
104	WCI 318182214
107	5304415832 Frigidaire Oven Screw
107	WCI 318219405
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
125	5303311202 Frigidaire P1-Motor-Conv
127	318317100 Frigidaire Adapter Assembly
128	WCI 318563000
129	5303311164 Frigidaire Oven Spring
137	318090310 Frigidaire Oven Latch
139	WCI 318042900
140	WCI 318071300
142	WCI 318123901
161	318255511 Frigidaire Oven Heating Element
170	WCI 5304405241
177	WCI 318053810
191	WCI 318322800
219	WCI 318003600
260	WCI 318055500
262	Channel,oven support ,front
