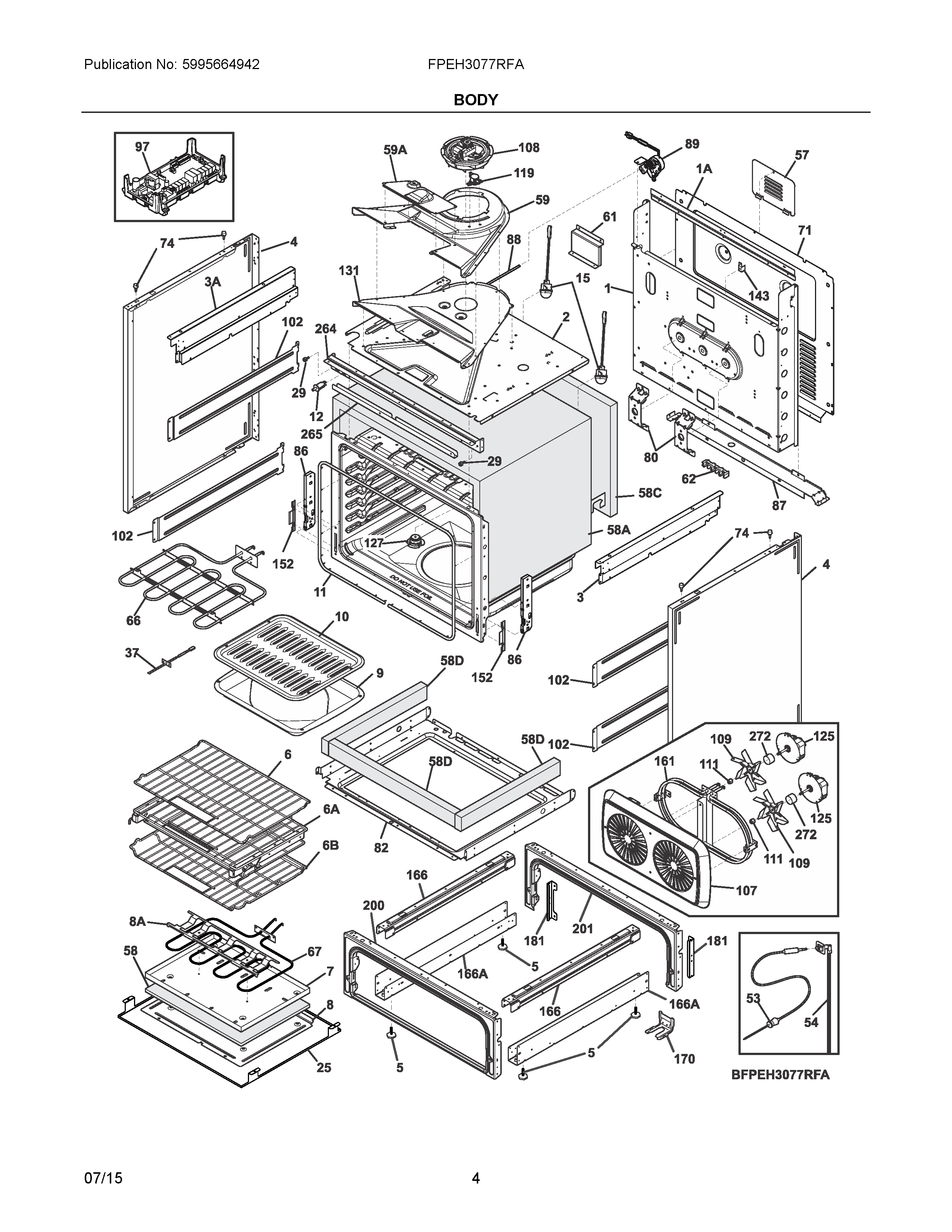

FPEH3077RFA 03 – BODY

FPEH3077RFA 03 – BODY

Written by

in

FPEH3077RFA 03 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA316418900 Frigidaire Oven Screw
NI807597603 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NI5304517285 Frigidaire Assembly Harness
NI5304520783 Frigidaire Harness
NIC5304436864 Frigidaire WASHER
NIA318167300 Frigidaire Clip
NIC318264200 Frigidaire Oven Plate
NIAWCI 318579001
NIA316001017 Frigidaire Screw
NIA316116000 Frigidaire Screw
NI5303289910 Frigidaire Oven Screw
NIWCI 5304500180
NIB5303311164 Frigidaire Oven Spring
NI316021109 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
1WCI 809146001
1ABRACKET, WIRE FILLER, REAR
2WCI 139028104
3AWCI 809128201
3809128202 Frigidaire Panel
4807226106 Frigidaire Range Black Side Body Panel
5LEG, LEVELING
65304514983 Frigidaire Oven Rack
6B139012400 Frigidaire Oven Rack
6AWCI 139013308
7318297303 Frigidaire Oven Box
8318359500 Frigidaire Oven Panel
8A318313601 Frigidaire Oven Bracket
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
11139036701 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
25SHIELD, HEAT, STORAGE
29316517600 Frigidaire Oven Spacer
37SENSOR
535304504202 Frigidaire Red Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
57316283600 Frigidaire Oven Cover
58318294912 Frigidaire Insullation
58CWCI 5304500109
58AWCI 5304501901
58D139020301 Frigidaire INSULATION
59A5304506964 Frigidaire Oven Cover
59139027600 Frigidaire Oven Duct
61WCI 5304500116
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521861 Frigidaire Element
675304521880 Frigidaire Element
71809123201 Frigidaire Oven Shield
74WCI 318141910
80139021101 Frigidaire Bracket Assembly
82139008201 Frigidaire Shield
86139026900 Frigidaire Receptacle
87139020102 Frigidaire Bracket
88808721601 Frigidaire Rod
895304528925 Frigidaire Motor Assembly
97316472807 Frigidaire Range Circuit Board Assembly
102139004100 Frigidaire PANEL
107WCI 139001503
108807123002 Frigidaire Oven Motor Assembly Range/Wall
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119807144901 Frigidaire Thermostat
125139008500 Frigidaire Oven Motor
127139042600 Frigidaire Tube Assembly
131139027700 Frigidaire Oven Duct
143318172904 Frigidaire Bracket
152WCI 318338520
1615304522063 Frigidaire Element
166318298410 Frigidaire Oven Bracket
166A5304511884 Frigidaire Oven Bracket
1705304486410 Frigidaire Oven Kit
1815304500125 Frigidaire Bracket
200808734602 Frigidaire Oven Frame
201808734603 Frigidaire Frame
264WCI 809145303
265WCI 5304500138
272139021700 Frigidaire Oven Tube
