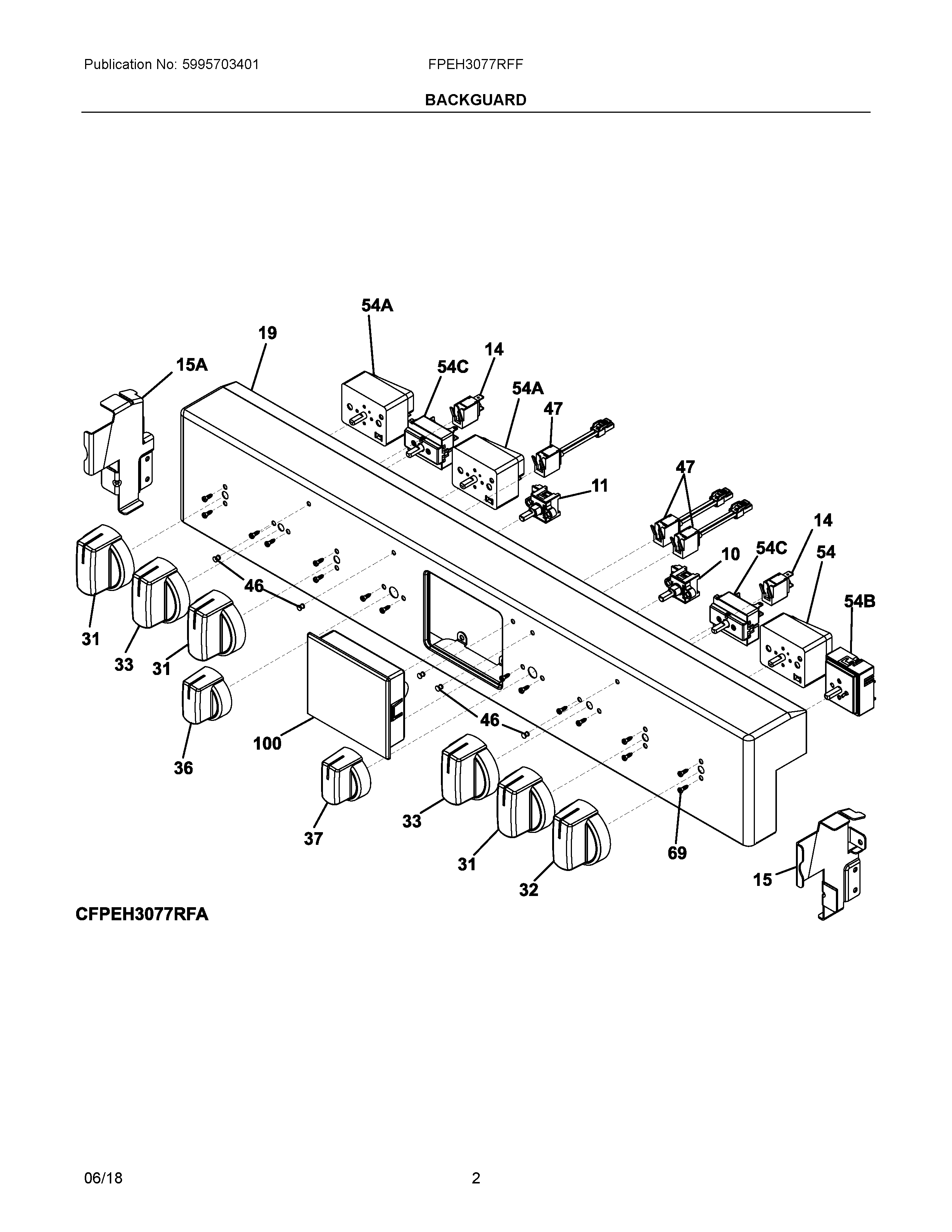

FPEH3077RFF 02 – BACKGUARD

FPEH3077RFF 02 – BACKGUARD

Written by

in

FPEH3077RFF 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIWCI 5304500175
NIWCI 5304500179
NI5304517680 Frigidaire Harness
NI316021109 Frigidaire Oven Screw
10WCI 808843105
115304493649 Frigidaire Oven Range Wall Potentiometer
14316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15A5304500133 Frigidaire Oven Bracket
15WCI 5304500132
19809103501 Frigidaire Oven Panel
315304502427 Frigidaire Oven Knob
325304502428 Frigidaire Oven Knob
335304502429 Frigidaire Oven Knob
36809137901 Frigidaire Oven Knob
37809137902 Frigidaire Oven Knob Assembly
46316557300 Frigidaire Range Indicator Light Lens
47316022508 Frigidaire Light Assembly
54A316436001 Frigidaire Oven Range Infinite Burner Switch
54B316238201 Frigidaire Oven Switch
54316436000 Frigidaire Oven Range Surface Element Switch
54C316471601 Frigidaire Switch-Infinite
695303288565 Frigidaire Screw
100808751522 Frigidaire Control Assembly
