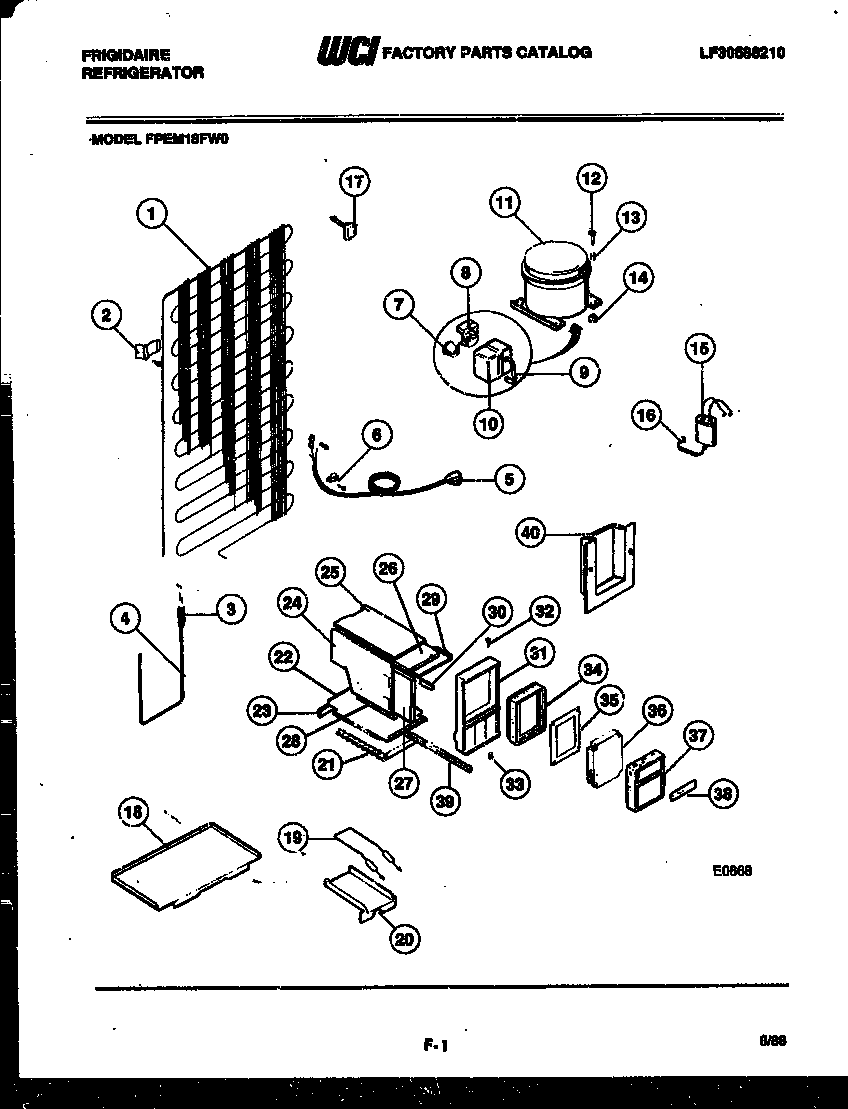

FPEM18FA0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*24148	HARNESS COMPRESSOR AND LIGHT SWITCH
*24148	INSULATOR
1	WCI 3007561
2A	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
2	WCI 8002600
3	WCI 8000027
4	LINE-SUCTION AND CAP TUBE
5	WCI 8000064
6	CLAMP-CABLE (3)
7	WCI 8017572
7A	CLIP-OVERLOAD
8	WCI 8017226
9	WCI 8000117
10	WCI 8006982
11	WCI 3916007
12	WCI 8000029
13	WCI 8002758
14	WCI 8008778
15	WCI 3001650
16	WCI 8017231
17	WCI 8000073
18	CONDENSER-CONDENSATE
19	WCI 3007377
19A	WCI 8000110
20	WCI 3007378
21	WCI 3015180
21A	INSULATION
22A	24
22	BOTTOM
23	INSULATION
24	HOUSING-SIDE
25	HOUSING-TOP
26	INSULATION
27	INSULATION
28A	INSULATION
28	INSULATION
29	HOUSING
30	MAGNET
31A	INSULATION
31	WCI 8008762
32	PIN
33	PIN
34	PANEL-INTERIOR
35	SEAL
36	INSULATION
37	WCI 3018753
38	WCI 3018754
39B	PLUG BUTTON
39A	PLUG BUTTON
39	WCI 8008759
40	WCI 8013644
