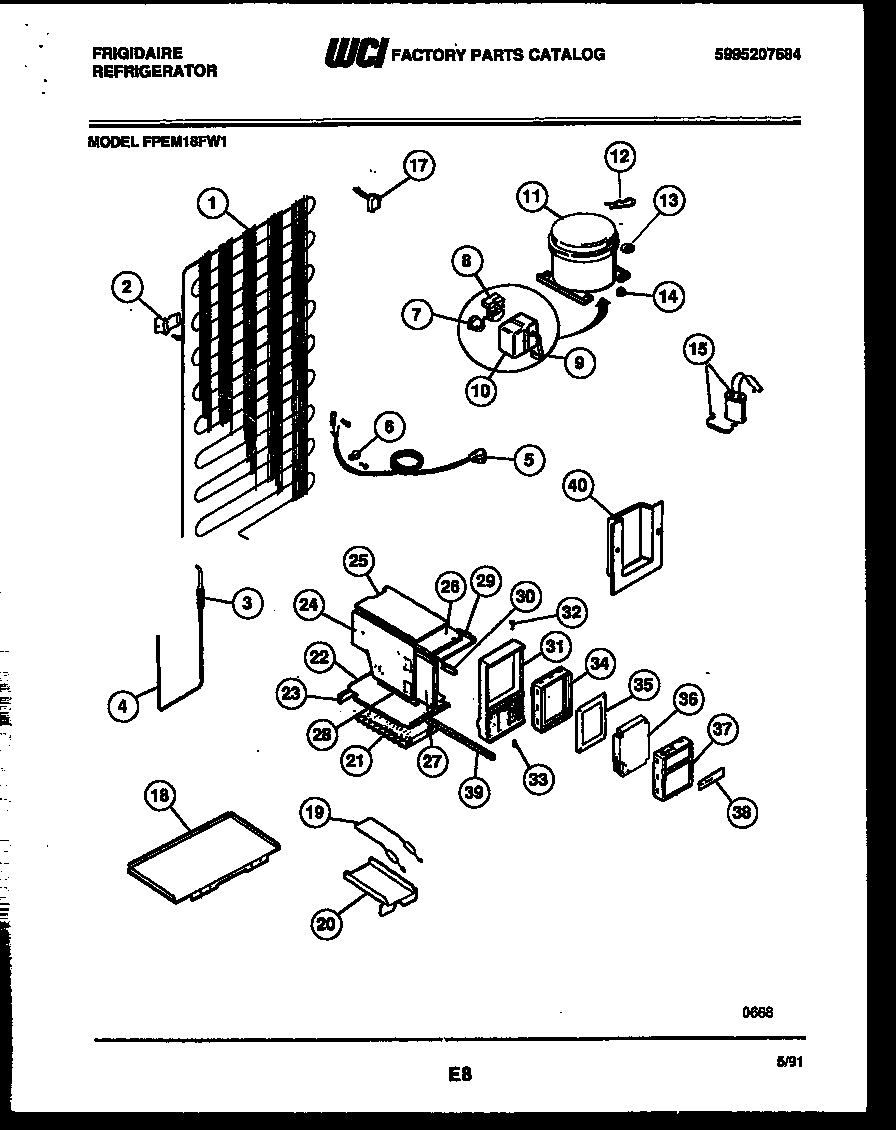

FPEM18FW1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPEM18FW1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPEM18FW1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*465845304455651 Frigidaire Refrigerator Screw
*465845308000133 Frigidaire Refrigerator Clamp
*46584WCI 5308009645
*46584WCI 08008781
1WCI G000189439
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2BRACKET-MTG (4)
2B5308000039 Frigidaire Refrigerator Screw
35303305677 Frigidaire Replacement Filter Dryer Filters
4WCI 5308000021
5CORD-ELECTRIC POWER
65303001199 Frigidaire Refrigerator Wiring Harness Clamp
7WCI 5303001713
8RELAY-TL
95303006412 Frigidaire Refrigerator Cover Mounting Strap
11COMPRESSOR WITH ELECTRICALS
12CLIP – COMPRESSOR MTG
13WASHER-COMPR MTG
14218513300 Frigidaire Refrigerator Compressor Mount Grommet
15CAPACITOR
175303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
18WCI 5308000144
19A5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
19WCI 5300187141
20WCI 3007378
21AWCI 3006636
21WCI 5303015180
22WCI 08008749
22AWCI 5308008750
23WCI 5300170779
25WCI 3017661
26WCI 5308008753
27WCI 5308008754
28AWCI 5300169964
28WCI 5308008755
29WCI 08008756
30WCI 08008766
31AWCI 5300171694
31WCI 08008762
32WCI 5308008765
33WCI 5308008767
34WCI 08008769
35WCI 5308008771
36WCI 08008770
37WCI 3018753
38WCI 3018754
39BWCI 5300172384
39WCI 5317053302
39AWCI 08002769
40WCI 5303001197
