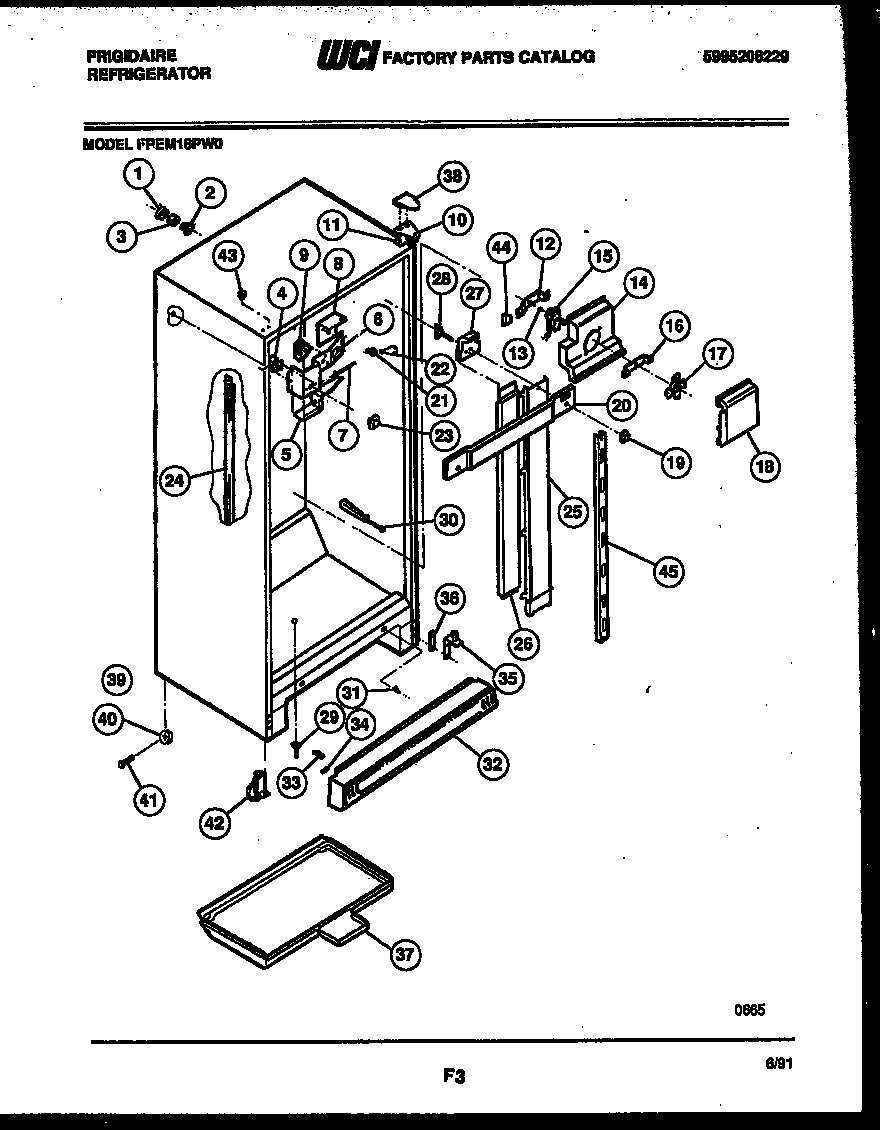

FPEM18PL0 03 – CABINET PARTSadmin2025-04-26T08:38:46+00:00FPEM18PL0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| *42053 | PLUG, BUTTON, CABINET LINER (NI) |
| *42053 | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| *42053 | WCI 5308016568 |
| 1 | WCI 5303001286 |
| 2 | WCI 5303001287 |
| 3 | TUBE-RUBBER |
| 4 | WCI 5308000068 |
| 4A | WCI 5300169478 |
| 4B | WCI 5303001260 |
| 5 | WCI 5308008706 |
| 6 | WCI 08008707 |
| 6A | WCI 08009649 |
| 7 | WCI 5300170287 |
| 8 | WCI 5308008709 |
| 9A | SCREW-MOUNTING (2) (NON-ILLUSTRATED) |
| 9 | 215846604 Frigidaire Refrigerator Defrost Timer |
| 9B | 5304455649 Frigidaire Refrigerator Screw |
| 10A | 241710601 Frigidaire Refrigerator Screw |
| 10 | BRACKET-UPPER HINGE |
| 11 | SHIM - UPPER HINGE |
| 12 | BRACKET-MOTOR MTG, REAR |
| 13 | G187559 Frigidaire Refrigerator Bushing |
| 14 | WCI 08008710 |
| 15 | 5300158289 Frigidaire Evaporator Fan Motor |
| 16 | WCI 5303205118 |
| 17 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 18 | WCI 5308008711 |
| 19 | WCI 08008712 |
| 20 | WCI 08008713 |
| 20A | WCI 3018745 |
| 20B | WCI 3018746 |
| 21 | 218906802 Frigidaire Light Lamp Socket |
| 22 | 316538904 Frigidaire Oven Lamp Light |
| 23 | WCI 5308008716 |
| 24 | CHANNEL-SHELF MTG (2) |
| 25 | WCI 08008718 |
| 26 | INSUL-LWR DUCT |
| 27 | WCI 3015057 |
| 28A | WCI 5300171508 |
| 28 | WCI 08008721 |
| 29 | WCI 5300164843 |
| 30 | WCI 5317000101 |
| 30A | 5304455852 Frigidaire Refrigerator Screw |
| 31 | 5303289051 Frigidaire Refrigerator Light Switch |
| 32 | WCI 5303016726 |
| 33 | CLIP-GRILLE |
| 34 | WCI 5300154397 |
| 35A | WASHER, .34 X .62 X .05, NYLON |
| 35 | HINGE-BOTTOM |
| 35C | WCI 5303001273 |
| 35B | SCREW-HINGE MTG (2) (NON-ILLUSTRATED) |
| 36A | WCI 5308000013 |
| 36 | SHIM-BTM HINGE (3) |
| 36B | WCI 5300077210 |
| 37 | WCI 5300174360 |
| 38 | COVER-UPPER HINGE, ALMOND |
| 39 | Nut,push-on |
| 40 | WCI 5303001030 |
| 41 | WCI 5308000266 |
| 42 | ROLLER-FRONT (2) |
| 42A | SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED) |
| 43 | PLUG-BUTTON, ALMOND, UPR HINGE HOLES |
| 44A | 5304455651 Frigidaire Refrigerator Screw |
| 44 | WCI 5308000107 |
| 45 | WCI 3018720 |
